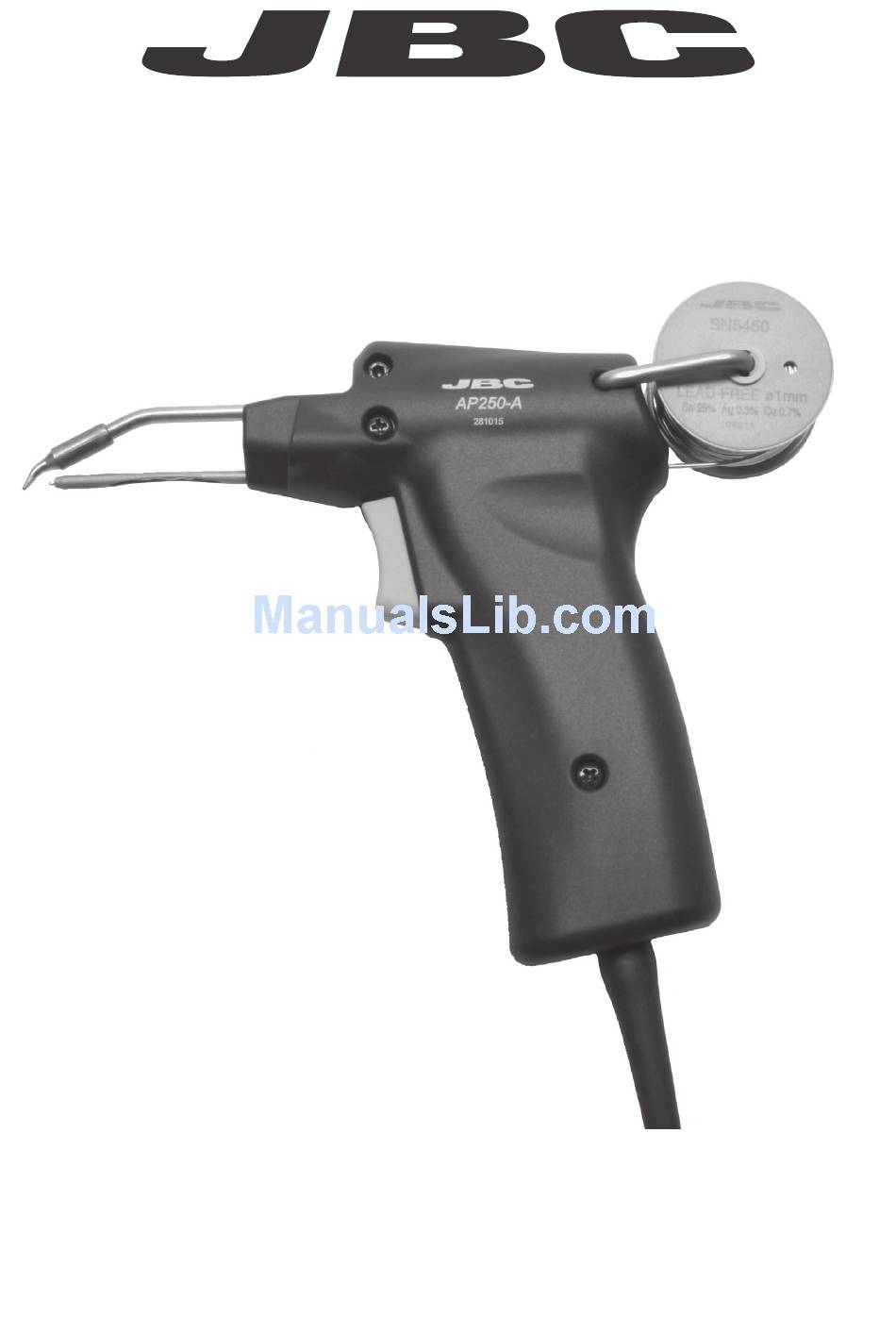

- Page 1 Solder Feed Iron Ref. AP250-A...
-
Page 2: Table Of Contents
Packing List The following items should be included: Solder Feed Iron ........1 unit Ø1.5 mm Feeder Nozzle ......1 unit Ref. AP250-A Ref. 0019211 Ø1 mm Feeder Nozzle (Ref. 0019212) is included Allen Key ......1 unit Manual ......1 unit Reel ........ -
Page 3: Solder Feed Iron
Features The AP250-A Solder Feed Iron is fully compatible with any JBC station within the Modular Line and with the CF Solder Feed station within the Compact Line. Solder Feed Iron Ref. AP250-A Control Unit Solder Feed Stand... - Page 4 Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Removing 2. Inserting Mark Loosen the screw and remove the cartridge. Important: Insert the cartridge as far as Use a flat pliers to remove it if still hot. the mark for a correct connection.
-
Page 5: Reel
w w w.jbctools.com Replacing solder wire 1. Remove the remaining solder wire Pull out the remaining solder from inside the feeder nozzle. Use a pliers if necessary. 2. Replace the solder reel Remove the empty reel as shown and fit the new one. -
Page 6: Ø1.5 Mm Feeder Nozzle
Changing the Feeder Nozzle 1. Take out the screw from behind to remove the reel and the solder wire from the nozzle. Next, remove the two screws from the other side and lift the cover off. Make sure the tool is unplugged. 2. - Page 7 w w w.jbctools.com Regulating the Feeder Nozzle Depending on the component you are soldering or the cartridge being used, you can either shor- ten or lengthen the feeder nozzle by (a max) 10 mm. 1. Loosen the screw to change the length of the nozzle. 2.
- Page 8 Compatible Cartridges The AP250-A Solder Feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 0,6 C250-401 C250-402 C250-403 C250-409 1,8x0,8 ø 2,2 3,2x1,5 2,2x1 C250-410 C250-405...
- Page 9 Simply wrap the solder wire twice around the empty reel as shown. Solder Reel Stand Ref. BE-SA Solder Feed Iron Ref. AP250-A Fume Extractor The fume extractor is an easy & safe solution to extract the fumes produced while soldering. Suction pump and filter Fume Extractor Ref.
- Page 10 Notes...
- Page 11 w w w.jbctools.com...
-
Page 12: Manual
- Diameter of solder wire: up to 1.5 mm / 0.06 in Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
