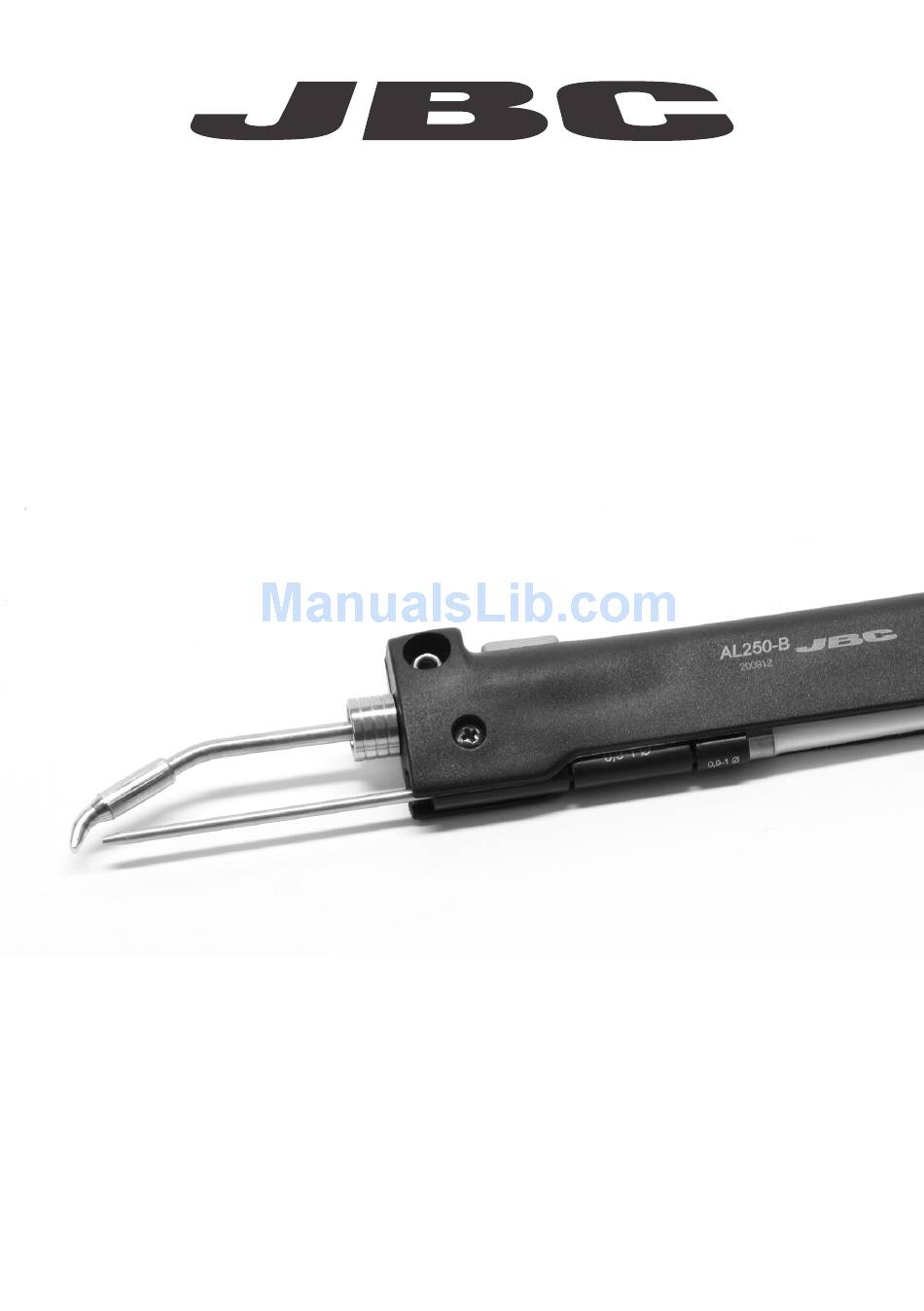

  • Page 1 Auto-Feed Iron Ref. AL250-B...
  • Page 2 Packing List The following items should be included: Auto-feed Iron ............................1 unit Ref. AL250-B Includes: C250403 Cartridge Guide set - Ref. 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in) C250403 Guide set - Ref. 0002401 Allen Key 2,5mm ........1 unit Manual ............
  • Page 3 Features The AL250-B Auto-feed Iron is compatible only with Auto-feed Soldering station. Main switch Fuse Power Socket Equipotential connection Pedal connection (optional) Stand Ref. AL-SD Auto-feed Iron Ref. AL250-B...
  • Page 4 Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron. Mark Guide tube Ref . 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in) 2.
  • Page 5 Compatible Cartridges The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 2,2 ø 0,4 ø 0,6 C250-420 C250-401 C250-402 C250-403 C250-409...
  • Page 6 Accessories Fume Extractor Ref. F4468 - 2 m (78.74 ft) lenght. The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint. Support Optional Guide set Ref. AL-IA Ref. 0002399 Ø 0,4 - 0,5 mm (0.015 - 0.02 in) 0002402 Ø...
  • Page 7 Use a damp cloth or alcohol. - Periodically check all cables and tubes connections. - Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only be performed by a JBC authorized technical service.

  • Page 8: Specifications

    - Diameter of solder wire: Ø 0,4 - 1,8 mm (0.02 - 0.07 in) Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
