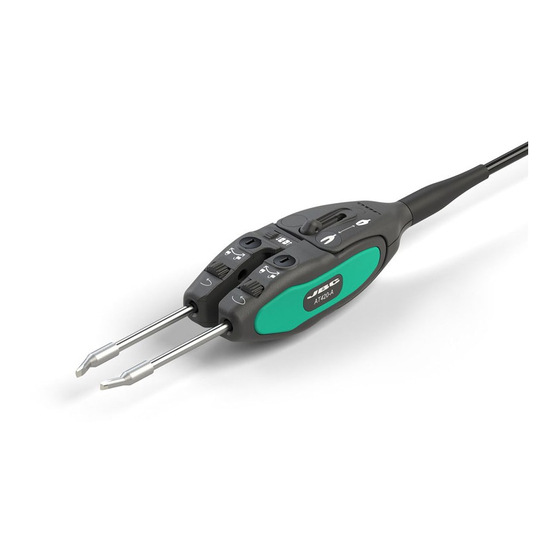

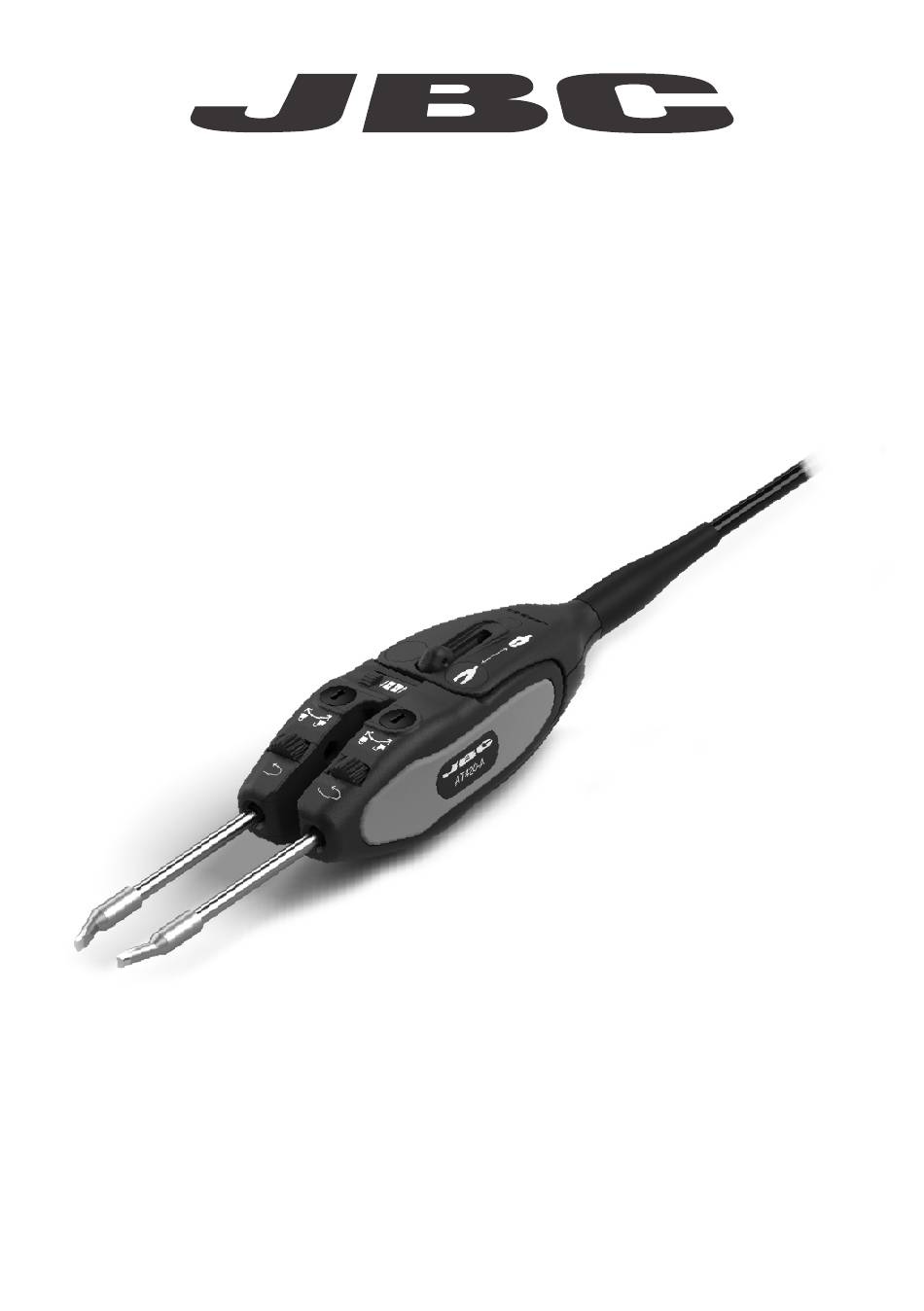

- Page 1 INSTRUCTION MANUAL Adjustable Tweezers Ref. AT420-A...
-
Page 2: Packing List
Packing List The following items should be included: Adjustable Tweezers .......1 unit Ref. AT420-A Screwdriver..........1unit Manual ............1 unit Ref. 0023074 Ref. 0022048 w w w.jbctools.com Adjustable Tweezers Ref. AT420-A... - Page 3 Features Stand Control Unit Ref. AT-SA (required but not supplied) C420 Cartridges Adjustable Tweezers ((Required but not supplied) Ref. AT420-A...
-
Page 4: Changing Cartridges
Changing cartridges 1. Unlocking 2. Removing Unlock the fixing screws. Place the cartridges in the extractor and pull the tweezers to remove them. 3. Positioning 4. Inserting Use the grooves to position the cartridges. Lift up the Tweezer and press against the stand to insert the cartridge untill you reach the mark*. - Page 5 Once the alignment has been made, do not forget to fix the cartridges by tightening the fixing screws. A single turn of the screw is required to get them fixed. C420 Cartridge Range The AT420-A works with C420 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com Tweezer Blade...
- Page 6 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 7 w w w.jbctools.com Notes...
-
Page 8: Specifications
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
