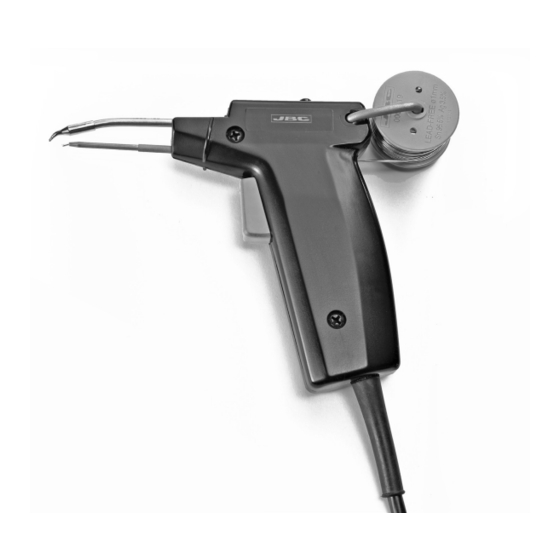

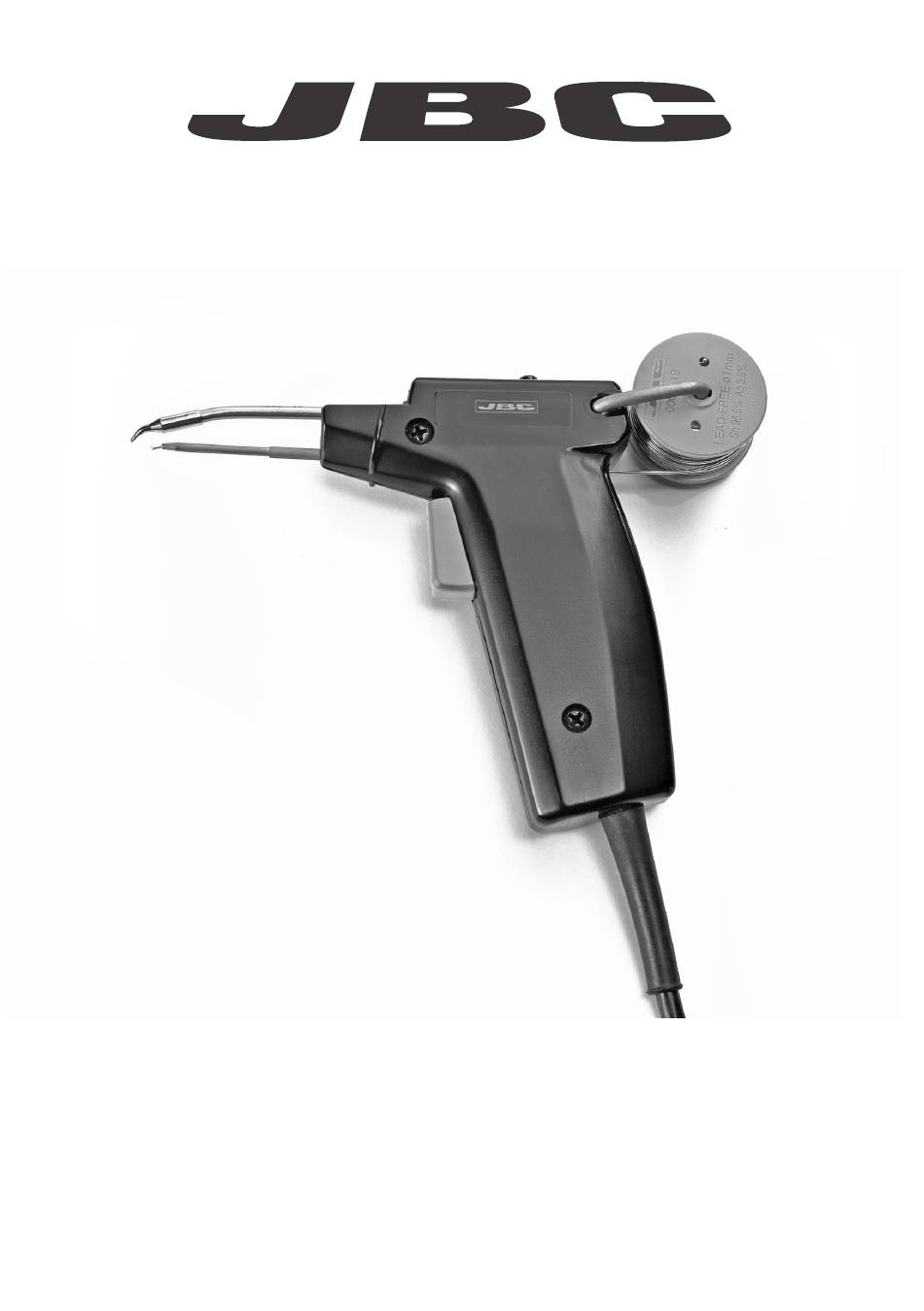

- Page 1 AP130 SOLDER FEED IRON...
-
Page 2: Solder Feed Iron
AP130 / SOLDER FEED IRON AP130-A 0002801 0006559 MANUAL SOLDER FEED IRON Reel Feeding Tube w w w.jbctools.com AP130 SOLDER FEED IRON INSTALLATION DD-2B /DD-1B/DD-9B AP130-A CONTROL UNIT SOLDER FEED IRON Power cord switch Equipotential connection AP-SC SOLDER FEED STAND... -
Page 3: Changing The Cartridge
CHANGING THE CARTRIDGE Alignment Cartridge screw - Loosen the cartridge screw (1) to release the cartridge. - Place the new cartridge in the solder feed handle. Important: It is essential to insert the cartridge till the end for a good connection. Use the mark as reference (2). - Page 4 REPLACING THE REEL Press Before fitting a new reel, pull out the solder remaining inside the solder direction tube. Insert the solder into its hole checking that the wire becomes straight. Pull the trigger intermittently until the solder feed system works by itself. Always use 0.8 to 1.0 mm diameter solder wire.
- Page 5 SOLDER REEL HOLDER For production-line purposes we recommend using our BE-SA holder which allows for solder BE-SA reels of sizes up to 2.5 Kg to be used. Solder reel stand Simply wrap a couple of turns of the solder wire around an empty reel as shown.
- Page 6 ACCESSORIES Suction pump and filter F1204 FUME EXTRACTOR...
- Page 7 C130 CARTRIDGE RANGE Consult our wide range of cartridges with more than 250 references in www.jbctools.com. For special cartridges contact with our distributor. ø 0,8 ø 3 ø 2,2 ø 1,7 ø 4 ø 0,6 ø 1 C130-401 C130-402 C130-403 C130-409 C130-410 C130-416...
- Page 8 This product should not be thrown in the garbage. WARRANTY JBC’s 2 years warranty guarantees this equipment against all manu- facturing defects, covering the replacement of defective parts and all necessary labour. Warranty does not cover product wear due to use or mis-use.
