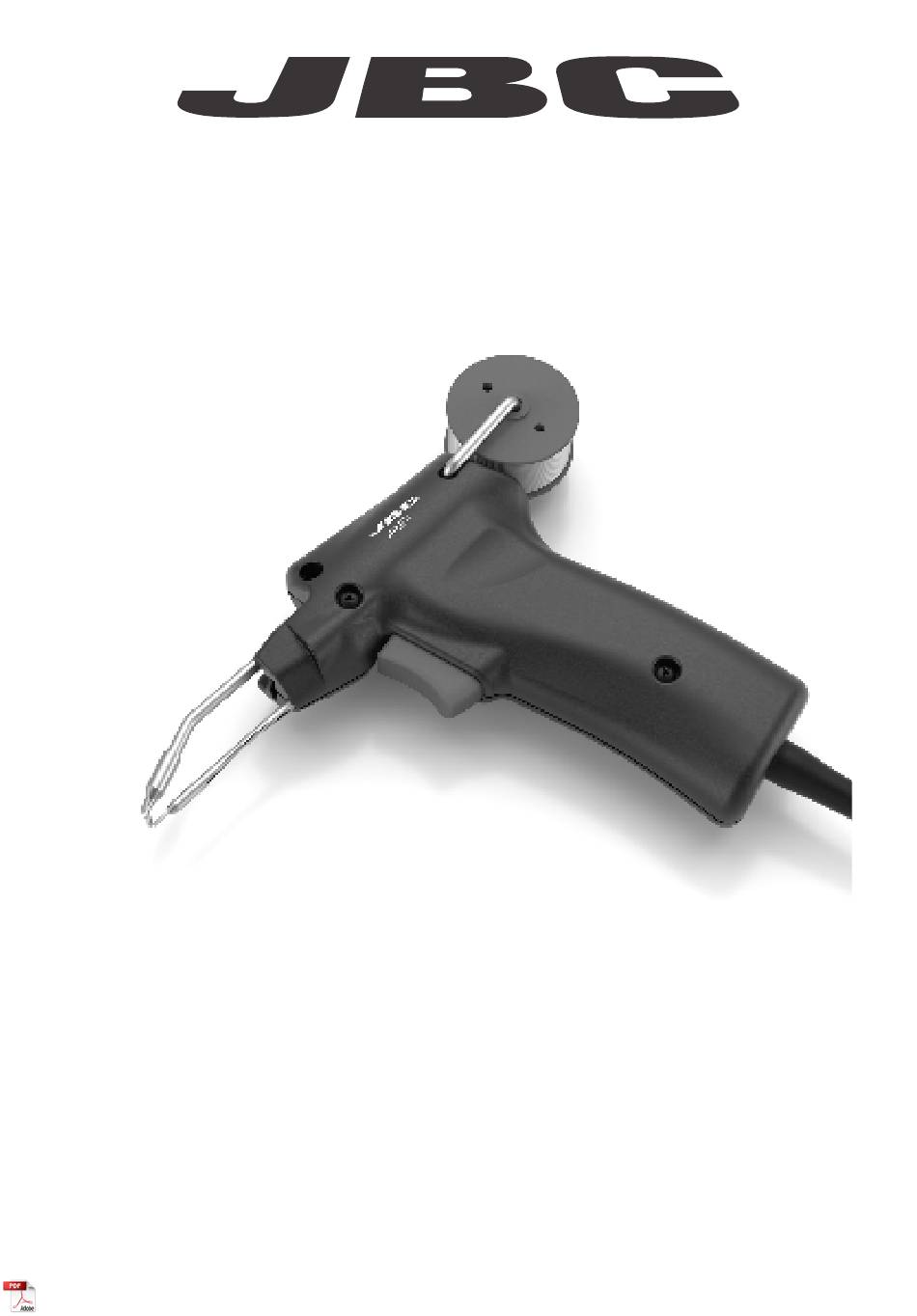

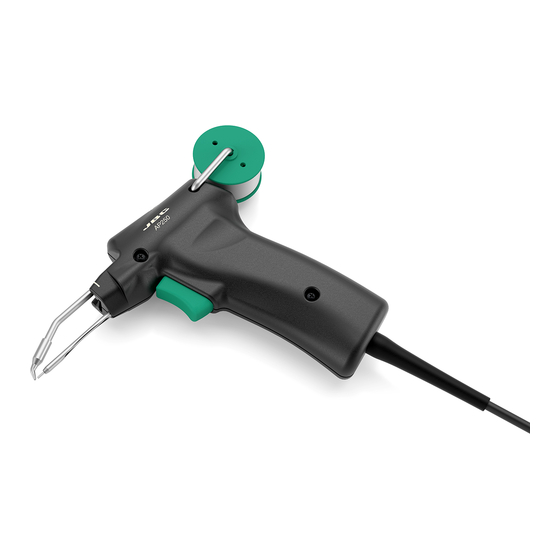

- Page 1 INSTRUCTION MANUAL AP250 Manual-Feed Soldering Iron...
- Page 2 This manual corresponds to the following references: AP250-A Packing List The following items are included: Manual-Feed Soldering Iron ....1 unit Ø1.5 mm Feeder Nozzle ......1 unit Ref. 0019211 Feeder Nozzle Ø1 mm (Ref. 0019212), Cartridge C250403 and Solder Reel (Ref. SN5450) already assembled Reel ........
- Page 3 Features and Connections AP250 works with DIU, DDU, DMU Control Units by using APS Stand or optional with CDA Manual-Feed Soldering Station. AP250 Manual-Feed Soldering Iron CDA* optional to CDA or APS APS* Stand for Control Unit*...
- Page 4 Changing Cartridges For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Removing 2. Inserting Mark Loosen the screw and remove the cartridge. Important: Insert the cartridge as far as Use JBCs PLR195 catridges extractor pliers the mark for a correct connection.
- Page 5 3. Inserting New Solder Wire Insert the solder wire while pushing the trigger repeatedly until the solder wire appears at the AP250 nozzle. Note: Use solder wire ø0.8 - 1.0 mm with Nozzle Ref. 0019212 and ø1.1 - 1.5 mm with...
- Page 6 Changing the Feeder Nozzle Make sure the tool is unplugged. 1. Remove the Reel 2. Remove the Cover AP250 Open and take out the back Then remove the two front side screws and lift the cover off. side screw to remove the reel and to take out the solder wire from the nozzle.
- Page 7 Depending on the component are soldered or the cartridge being used, the length of the feeder nozzle can be either shorten or lengthen (max 10 mm / 0.394 in). AP250 Loosen the screw to chan- ge the length of the feeder nozzle.
- Page 8 Compatible Cartridges* AP250 Solder Feed works with C250 cartridges. Find the model that best suits your soldering needs in www.jbctools.com Conical Bent Chisel Chisel Bent Bevel Accessories Solder Reel Stand Solder Reel Stand* Ref. BE-SA For production line work, BES Solder Reel Stand is the ideal solution for easy solder wire supply.
- Page 9 w w w.jbctools.com Accessories Fume Extractor* The fume extractor is an easy & safe solution extract the fume generated at the solder joint while soldering. Note: Suction pump and filter required. Soldering Station Suction Pump and Filter Fume Extractor Ref. F1204 * not included, sold separately.
- Page 10 Notes...
- Page 11 w w w.jbctools.com...
- Page 12 9.65 x 7.28 x 1.77 in / 0.81 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
