Top And Bottom - Altronix VertiLine16C Series Installation Manual

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of
sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.

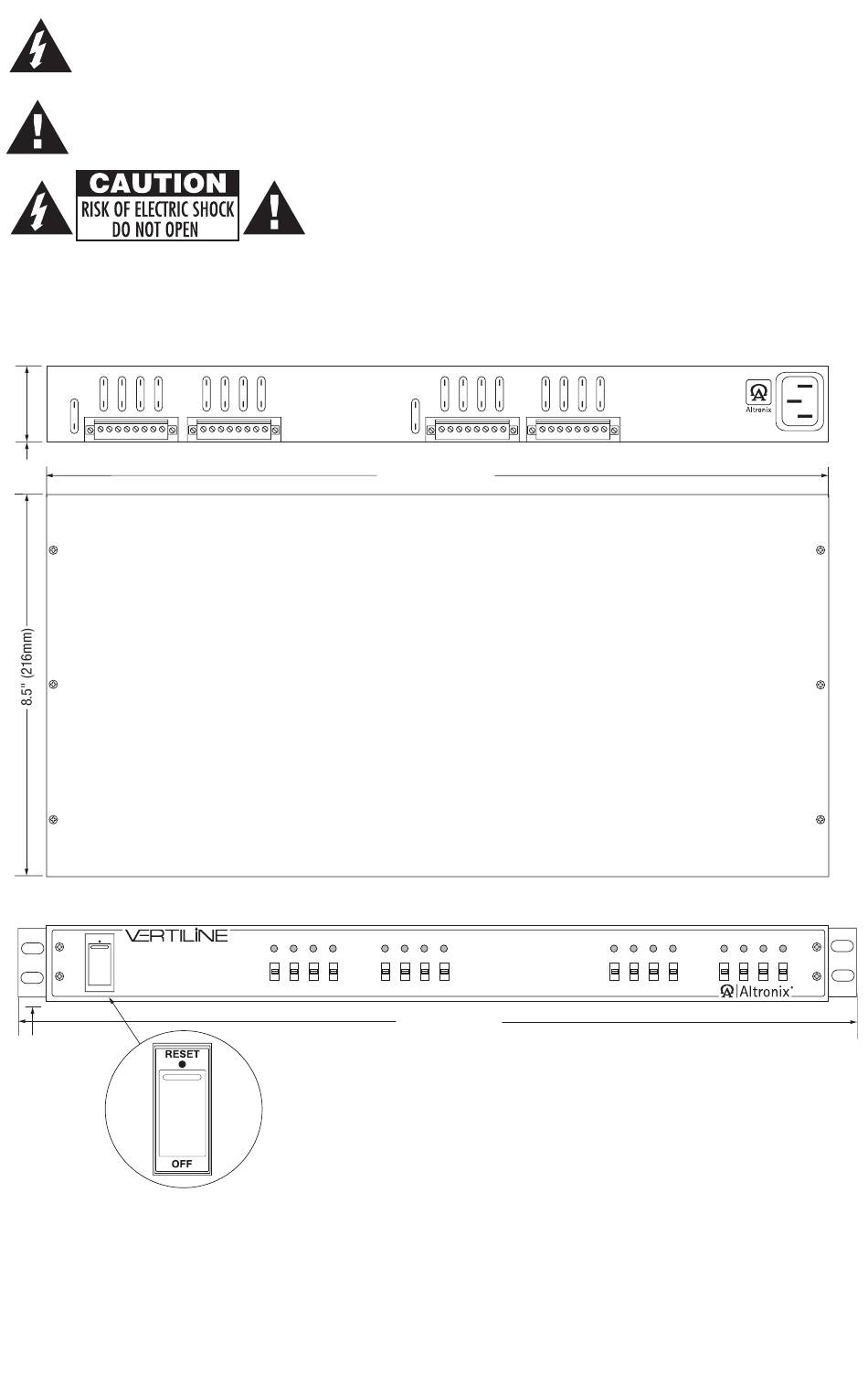

Mechanical Drawing & Dimensions (H x W x D):
16 15 14 13
Main Fuse
9-16
N P N P N P N P
1.625"(41.3mm)
RESET
OFF
0.75"
(19.1mm)
- 6 -
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
1U EIA 19" Rack Mount Chassis
1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm)
12 11 10 9
N P N P N P N P

Top and Bottom

1 2 3 4
28VAC
OFF
24VAC
(ON)
Fig. 3
Power Switch With Built-In Circuit Breaker:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated.
Power LEDs on faceplate are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position
(Fig. 3, pg. 6).
8 7 6 5 4
Main Fuse
1-8
N P N P N P N P N
17.625" (447.7mm)
5 6 7 8
Front
19.125" (486mm)
3 2 1
Rear
P N P N P N P
9 10 11 12
28VAC
OFF
24VAC
Vertiline16C Series Installation Guide
AC POWER
13 14 15 16
