The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated "DANGEROUS VOLTAGE" within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.

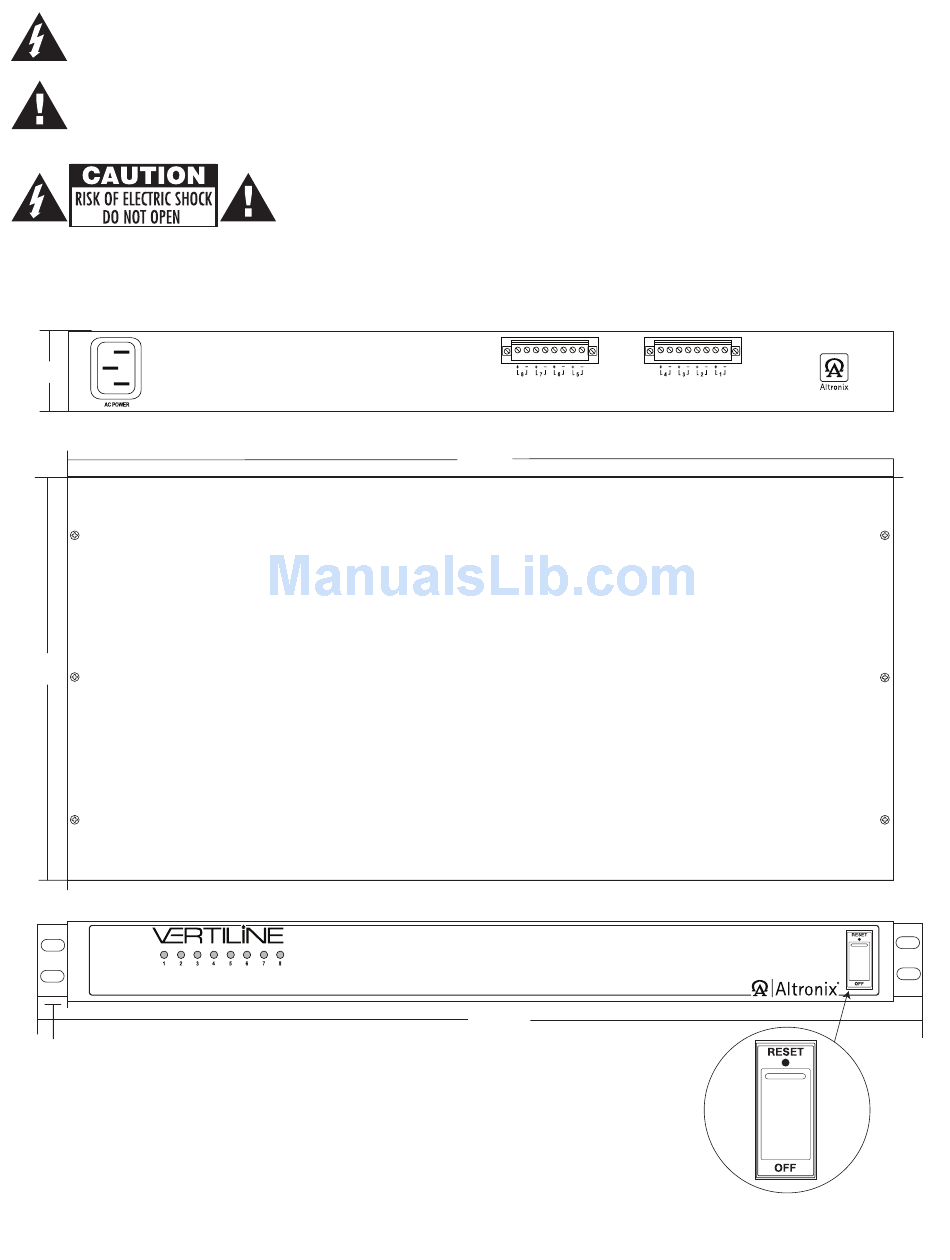

1U EIA 19" Rack Mount Chassis Mechanical Drawing & Dimensions:
1.625"H x 19.125"W x 8.5"D
1.625"
8.5"
.75"
Illuminated master power disconnect circuit breaker:
OFF position - Switch not Illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not Illuminated. Power LEDs on faceplate
are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position.
- 6 -
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.
REAR
TOP & BOTTOM
FRONT
17.625"
19.125"
(ON)
Vertiline3D/VertiLine6D
