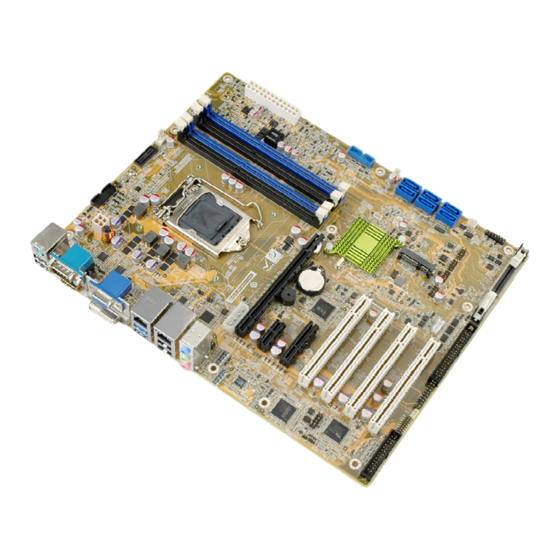

ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3/
Pentium® and Celeron® CPU per Intel® Q87, DDR3, Three
Independent Displays VGA/DVI-I/HDMI/iDP, Dual Intel® GbE, USB 3.0,
SATA 6Gb/s, Audio, iRIS-2400 and RoHS

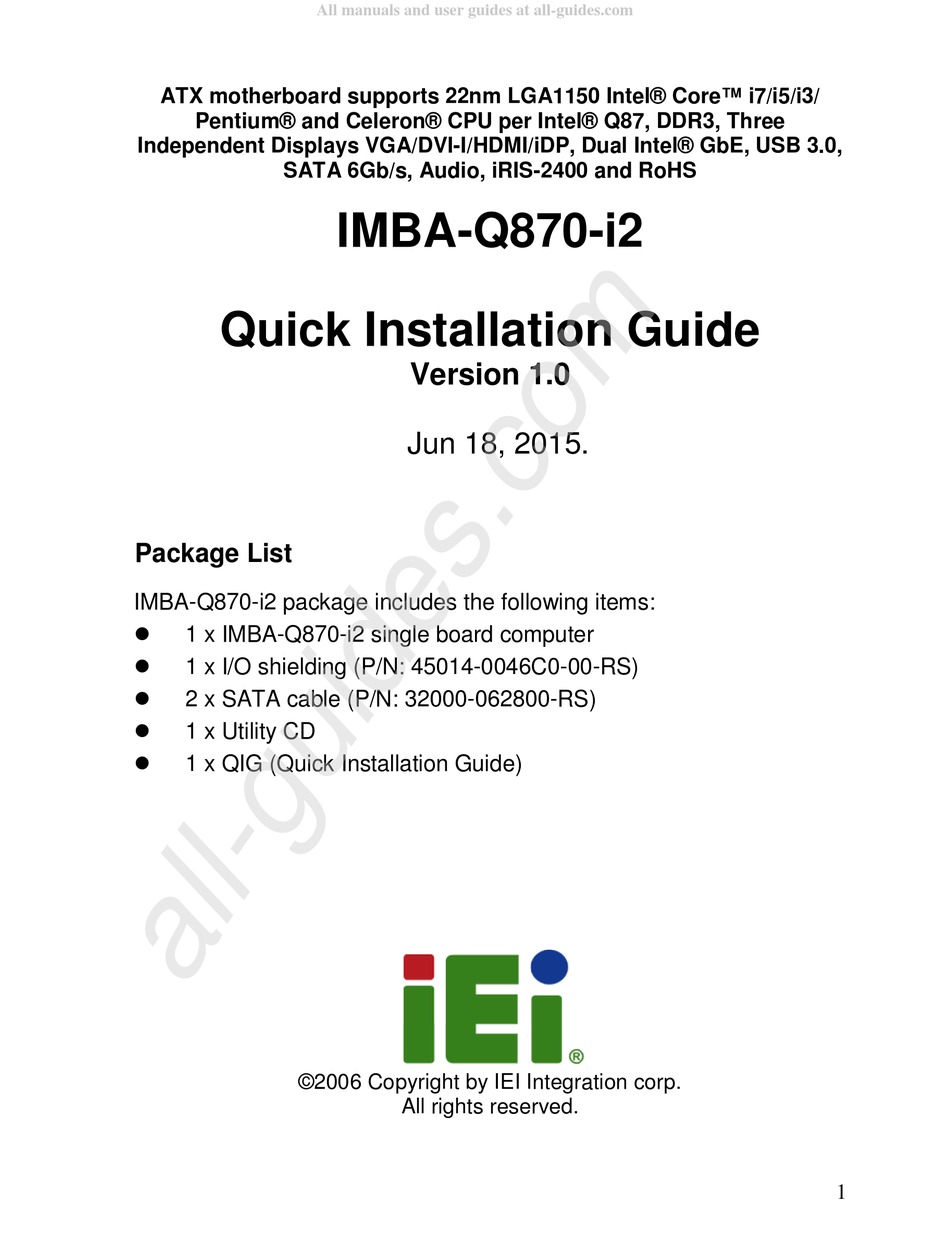

Quick Installation Guide
Package List
IMBA-Q870-i2 package includes the following items:
1 x IMBA-Q870-i2 single board computer
1 x I/O shielding (P/N: 45014-0046C0-00-RS)
2 x SATA cable (P/N: 32000-062800-RS)
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Integration corp.
All manuals and user guides at all-guides.com
IMBA-Q870-i2
Version 1.0
Jun 18, 2015.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology IMBA-Q870-i2
Summary of Contents for IEI Technology IMBA-Q870-i2
- Page 1 SATA 6Gb/s, Audio, iRIS-2400 and RoHS IMBA-Q870-i2 Quick Installation Guide Version 1.0 Jun 18, 2015. Package List IMBA-Q870-i2 package includes the following items: 1 x IMBA-Q870-i2 single board computer 1 x I/O shielding (P/N: 45014-0046C0-00-RS) 2 x SATA cable (P/N: 32000-062800-RS) ...
- Page 2 All manuals and user guides at all-guides.com Specifications CPU: LGA1150 Intel® 4th generation Core™ i7/i5/i3/Pentium®/ Celeron® processor supported System Chipset: Intel® Q87 Memory: Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM unbuffered DIMMs support up to 32GB BIOS: UEFI BIOS ...
- Page 3 All manuals and user guides at all-guides.com 8 x USB 2.0 (4 on rear, 4 by pin header) 1 x mSATA (colay SATA port) 1 x 6-pin wafer for PS/2 KB/MS Watchdog Timer: Software programmable support 1~255 sec. system reset ...
-
Page 4: Ordering Information
All manuals and user guides at all-guides.com Ordering Information IMBA-Q870-i2-R10: ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/ i3/Pentium® and Celeron® CPU per Intel® Q87, DDR3, Three Independent Displays VGA/DVI-I/HDMI/iDP, Dual Intel® GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-2400 and RoHS ... -
Page 5: Jumpers Setting And Connectors
All manuals and user guides at all-guides.com Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 AT/ATX mode select switch J_CMOS1 Clear CMOS button PCIE x16 Power PCIEX16 channel mode setting USB SW1, USB SW2 USB power setting J_FLASH1 Flash descriptor security override BAT1 Battery connector CHASSIS1... - Page 6 All manuals and user guides at all-guides.com Internal USB 3.0 connector AUDIO_CV1 HD audio connector COM1 External RS-232 serial port connector LAN1_USB1 RJ45 LAN and USB 3.0 connectors LAN2_USB2 RJ45 LAN and USB 2.0 connectors K/M_USB1 Keyboard & Mouse and USB 2.0 connectors HDMI1 HDMI connector VIDEO1...
- Page 7 All manuals and user guides at all-guides.com PCIE x16 Power: PCIEX16 channel mode setting PCIE x16 DESCRIPTION 1 x16 PCIE (default) (Normal Operation) 2 x8 PCIE 1 x8 , 2x4 PCIE Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled(ATX)]...
- Page 8 All manuals and user guides at all-guides.com BAT1: Battery connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT CHASSIS1: Chassis status connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3VSB CHASSIS OPEN CPU_FAN1: CPU fan connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V FANIO CPU12V1: +12V power source connector...
- Page 9 All manuals and user guides at all-guides.com DIO1: Digital I/O connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 DP1: Display port connector PIN NO. DESCRIPTION PIN NO.
- Page 10 All manuals and user guides at all-guides.com F_PANEL1: Front panel connector DESCRIPTION DESCRIPTION BEEP_PWR SPKR IPMI ID_LED+ IPMI LED IPMI ID_LED- PWRBTN_SW# PC_BEEP SPKR EXTRST- RESET SATA_LED# CN5: I2C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCH_GP38 PCH_GP39 KB_MS1: Keyboard and mouse connector PIN NO.
- Page 11 All manuals and user guides at all-guides.com LPT1: Internal parallel port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION STROBE# DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 ACKNOWLEDGE# BUSY PAPER EMPTY PRINTER SELECT AUTO FORM FEED # ERROR# INITIALIZE# PRINTER SELECT LN#...
- Page 12 All manuals and user guides at all-guides.com CN2: M-SATA card connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V 1.5V MSATA_CLK# MSATA _CLK PLTRST_N +3.3V PLTRST_N SATA_RX+ +3.3V SATA_RX- 1.5V SMB_CLK SATA_TX- SMB_DATA SATA_TX+ USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST#...
- Page 13 All manuals and user guides at all-guides.com COM2, COM3, COM5, COM6: Internal RS-232 serial port connectors Function DESCRIPTION DESCRIPTION COM2 COM3 COM5 COM6 COM4: RS-422/485 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RXD485# RXD485+ TXD485+ TXD485#...
- Page 14 All manuals and user guides at all-guides.com SATA1, SATA2, SATA3, SATA4, SATA5, SATA6: Serial ATA 3.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_TX+ SATA_TX- SATA_RX- SATA RX+ CN1: SMBUS connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_DATA SMB_CLK SPDIF1: SPDIF connector PIN NO.
- Page 15 All manuals and user guides at all-guides.com USB1, USB2: Internal USB 2.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- CN4: Internal USB 3.0 connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB3_RX- USB3_RX+ USB3_TX- USB3_TX+ USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- USB3_TX+...
- Page 16 All manuals and user guides at all-guides.com LAN1_USB1: Ethernet and USB 3.0 connectors USB1: External USB 3.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN1: RJ45 LAN connector PIN NO.
- Page 17 All manuals and user guides at all-guides.com K/M_USB1: Keyboard & Mouse and USB 2.0 connectors USB1: External USB 2.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_DATA+ KB_MS1: Keyboard / Mouse connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION KEYBOARD DATA MOUSE DATA...
- Page 18 All manuals and user guides at all-guides.com VIDEO1: VGA and DVI-I connectors VGA: VGA connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE DDCDA HSYNC VSYNC DDCCLK DVI-I: DVI-I connector DVI_DATA1 GREEN BLUE Hot Plug Detect DVI_DATA2# HPDET DVI_DATA2 DVI_DATA0# DVI_DATA0 DDC CLK DDC DATA...
- Page 19 All manuals and user guides at all-guides.com Board Layout: Jumper and Connector Locations (Unit: mm)
