ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation
Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4,
triple independent displays, dual GbE LAN, M.2, USB 3.2,

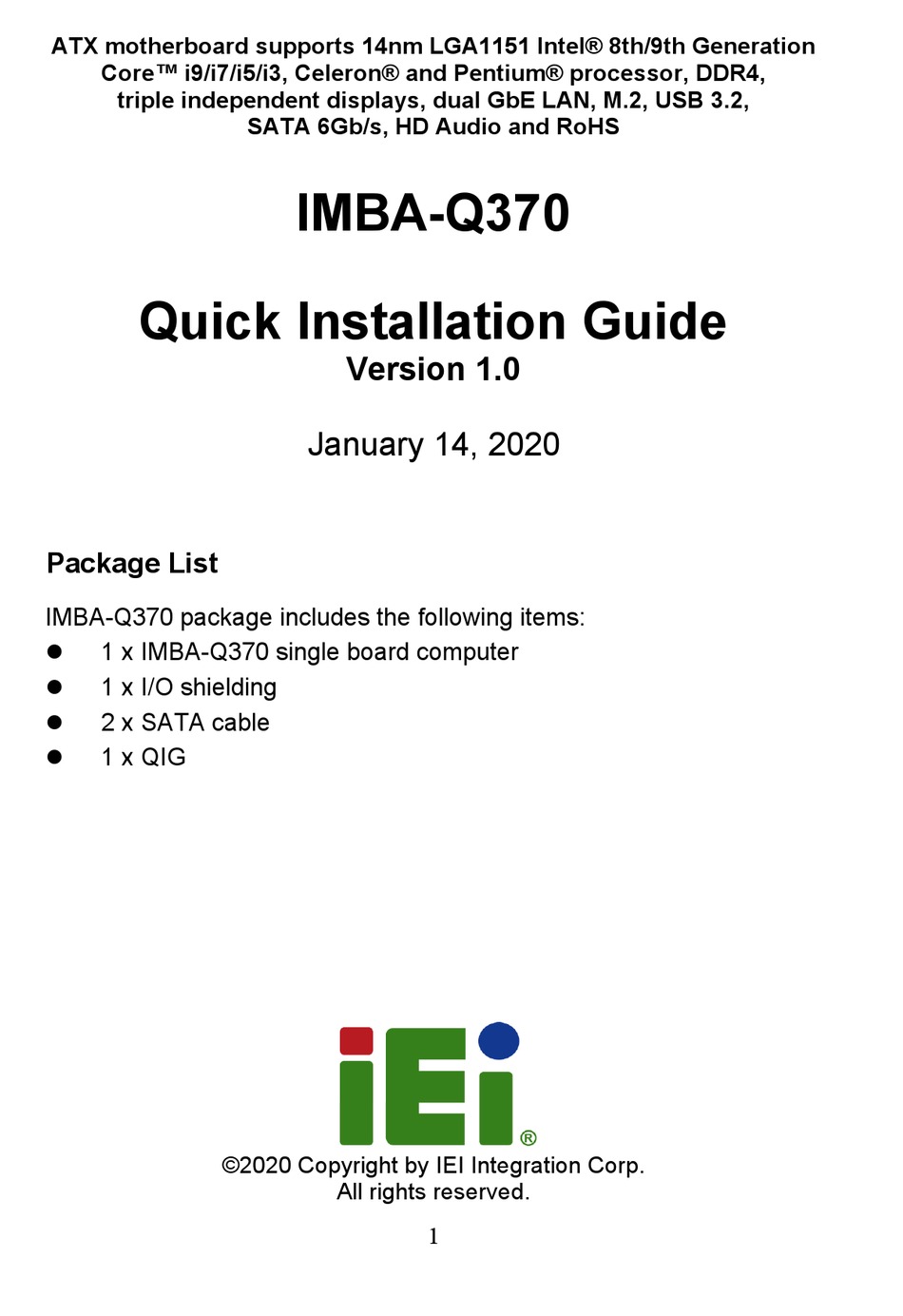

Quick Installation Guide
Package List
IMBA-Q370 package includes the following items:
1 x IMBA-Q370 single board computer
1 x I/O shielding
2 x SATA cable
1 x QIG
SATA 6Gb/s, HD Audio and RoHS
IMBA-Q370
Version 1.0
January 14, 2020
©2020 Copyright by IEI Integration Corp.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology IMBA-Q370
Summary of Contents for IEI Technology IMBA-Q370
- Page 1 SATA 6Gb/s, HD Audio and RoHS IMBA-Q370 Quick Installation Guide Version 1.0 January 14, 2020 Package List IMBA-Q370 package includes the following items: 1 x IMBA-Q370 single board computer 1 x I/O shielding 2 x SATA cable ...
- Page 2 Specifications CPU: LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor System Chipset: Intel® Q370 Memory: Four 288-pin 2666/2400 MHz dual-channel DDR4 SDRAM unbuffered DIMMs supported up to 64GB BIOS: AMI UEFI BIOS ...
- Page 3 4 x USB 2.0 (2x4 pin, P=2.54) 2 x USB 3.2 Gen 1 (2x10 pin, P=2.0) 3 x RS-232 (2x5 pin, P=2.54) 2 x RS-232/422/485 (2x5 pin, P=2.54) 1 x KB/MS (1x6 pin) SMBus: 1 x SMBus (1x4 pin) ...
- Page 4 IEI Resource Download Center IMBA-Q370 are available on IEI https://download.ieiworld.com Resource Download Center. Type IMBA-Q370 and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
- Page 5 19800-010500-200-RS: USB cable 457mm with bracket 32102-000100-200-RS: SATA power cable, MOLEX 5264-4P to SATA15P 32205-000702-200-RS: RS-232 cable, 230mm, P=2.54 CF-115XC-R10: LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W CF-115XD-R10: LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W CF-115XE-R10: ...
- Page 6 Jumpers setting and connectors LABEL FUNCTION J_CMOS1 Clear CMOS SW_BIOS1_2 Switch BIOS1 or BIOS2 (optional function) Flexibility for PCIE_2 Slot & PCIE_3 slot Flexibility I/O (optional function) J_ATX_AT1 AT/ATX Power Mode Setting USB SW1 Power USB Power Setting USB SW2 Power J_FLASH1 Flash Descriptor Security Override F_PANEL1...
- Page 7 ATXPWR1 PCIe Power Connector TPM1 Trusted Platform Module Connector EC Debug Port Connector JSPI1 Flash SPI ROM JSPI2 Flash EC ROM SMB1 SMBus Connector I2C1 C Connector (to EC) LED_LAN1 LAN1 Link LED Connector LED_LAN2 LAN2 Link LED Connector CHASSIS1 Chassis Status Connector J_CMOS1: Clear CMOS Button PIN NO.
- Page 8 USB SW1 Power, USB SW2 Power: USB Power Setting USB SW1 DESCRIPTION +5V DUAL 5V DUAL (Default) Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled(ATX)] Restore AC Power Loss [Last State] ------------------ >...
- Page 9 VGACOM1: 15-pin VGA Female Connector and External Serial Port DB-9 Connector VIDEO1 : 15-pin VGA Female Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE Hot plug detect DDCDA HSYNC VSYNC DDCCLK COM1: External Serial Port DB-9 Connector PIN NO. PIN NO.
- Page 10 HDMI1: HDMI Connector and DisplayPort Connector HDMI1: HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_DATA2# HDMI_SCL HDMI_DATA1 HDMI_SDA HDMI_DATA1# HDMI_DATA0 HDMI_HPD HDMI_GND HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# DP1: DisplayPort Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUXP LANE1N AUXN LANE1P...
- Page 11 LAN1_USB1: Ethernet and USB 3.2 Gen 2 Connectors USB1: External USB 3.2 Gen 2 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN1: RJ-45 LAN Connector PIN NO. DESCRIPTION PIN NO.
- Page 12 LAN2_USB2: Ethernet and USB 3.2 Gen 1 Connectors USB2: External USB 3.2 Gen 1 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN2: RJ-45 LAN Connector PIN NO. DESCRIPTION PIN NO.
- Page 13 KB_MS1: 6-pin-header Keyboard/Mouse Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Mouse Data Mouse Clock Keyboard Data Keyboard Clock USB1, USB2: Internal USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- USB3 ‐ 1 : Internal USB 3.2 Gen 1 Connector PIN NO.
- Page 14 PETP0 PETN0 PERP0 PERN0 PCIE_CLK+ PCIE_CLK- PLT_RST PCIE_WAKE W_DIS CLK_REQ +3.3V +3.3V +3.3V...
- Page 15 COM2, COM3, COM4: Internal RS-232 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM5, COM6: Internal RS-232/RS-422/RS-485 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUDIO_CV1 : Audio Line-In/Out MIC Connector PIN NO. DESCRIPTION Line-in CD/DVD or other audio source input port (Blue) Line-out Connect this port to headphone or speaker...
- Page 16 FRONT-PANEL1 : Audio Source Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUD_GND LMIC2 ‐ L PRESENCE# LMIC2 ‐ R LLINE2 ‐ R MIC2 ‐ JD FRONT ‐ IO LLINE2 ‐ L LINE2 ‐ JD SATA1, SATA2, SATA3, SATA4, SATA5, SATA6: SATA 6Gb/s Connectors PIN NO.
- Page 17 PETP0 PETN0 PERP0 PERN0 PCIE_CLK+ PCIE_CLK- PLT_RST PCIE_WAKE W_DIS CLK_REQ +3.3V +3.3V +3.3V CPU_FAN1: CPU Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V FANIO SYS_FAN1: System Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO...
- Page 18 SYS_FAN2: System Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO +12V DIO1 : Digital Input / Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 ATX1: 24-pin ATX Power Source Connector PIN NO.
- Page 19 ATXPWR1: PCIe Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V TPM1: Trusted Platform Module Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCLK LFRAME# LRERST# LAD3 LAD2 +3.3V LAD1 LAD0 SB3V SERIRQ GLKRUN# LPCPD# LDRQ# CN1: EC Debug Connector PIN NO. DESCRIPTION PIN NO.
- Page 20 JSPI1: Flash SPI ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS# SPI_SO SPI_CLK SPI_SI JSPI2: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS# SPI_SO SPI_CLK SPI_SI SMB1: SMBus Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_DATA SMB_CLK...
- Page 21 Board Layout: Jumper and Connector Locations (Unit: mm)
