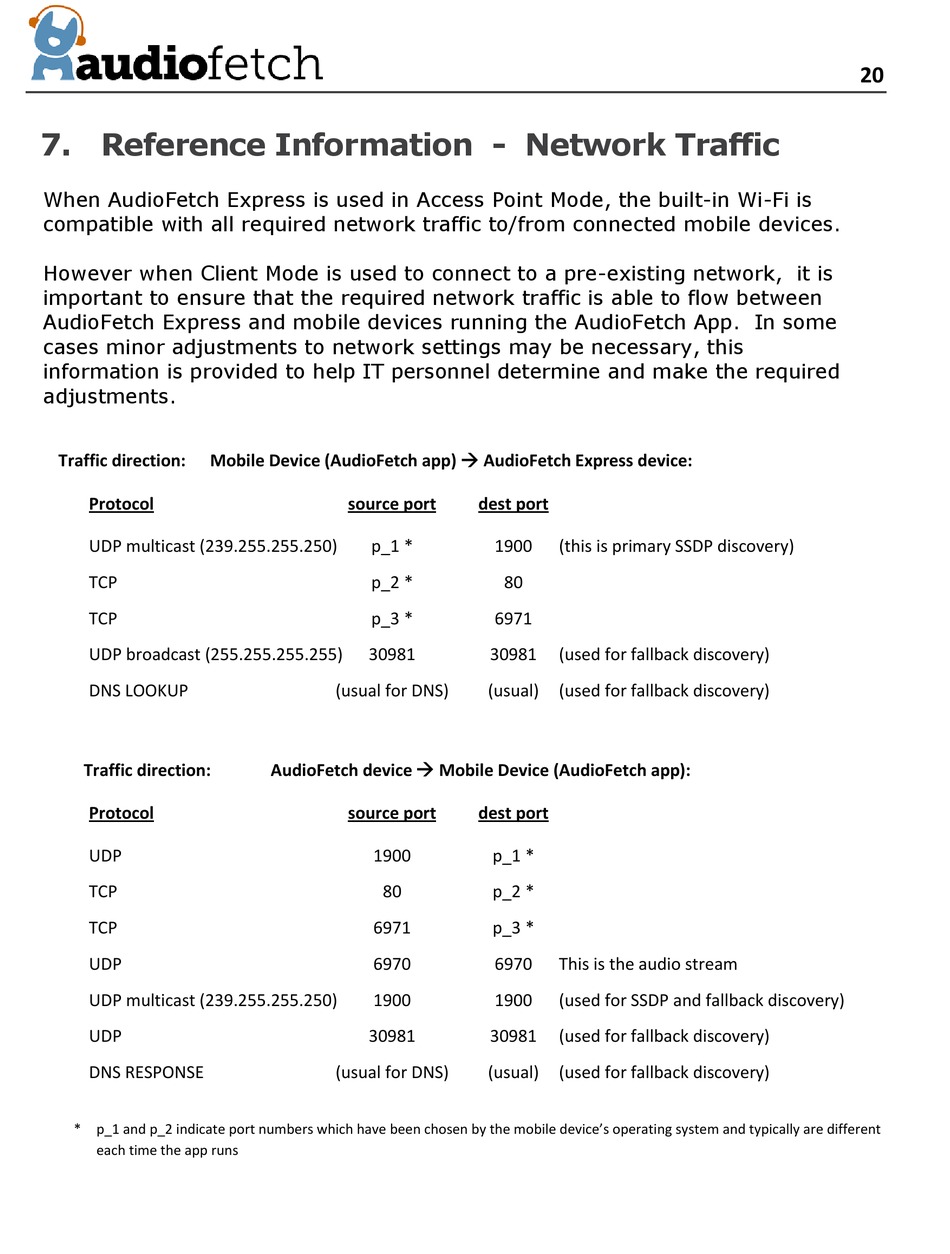

7. Reference Information - Network Traffic

When AudioFetch Express is used in Access Point Mode, the built-in Wi-Fi is
compatible with all required network traffic to/from connected mobile devices.
However when Client Mode is used to connect to a pre-existing network, it is
important to ensure that the required network traffic is able to flow between
AudioFetch Express and mobile devices running the AudioFetch App. In some
cases minor adjustments to network settings may be necessary, this
information is provided to help IT personnel determine and make the required
adjustments.
Mobile Device (AudioFetch app)  AudioFetch Express device:
Traffic direction:
Protocol
UDP multicast (239.255.255.250)
TCP
TCP
UDP broadcast (255.255.255.255)
DNS LOOKUP
Traffic direction:
Protocol
UDP
TCP
TCP
UDP
UDP multicast (239.255.255.250)
UDP
DNS RESPONSE
* p_1 and p_2 indicate port numbers which have been chosen by the mobile device's operating system and typically are different
each time the app runs
source port
p_1 *
p_2 *
p_3 *
30981
(usual for DNS)
AudioFetch device  Mobile Device (AudioFetch app):
source port
1900
80
6971
6970
1900
30981
(usual for DNS)
dest port
1900 (this is primary SSDP discovery)
80
6971
30981 (used for fallback discovery)
(usual) (used for fallback discovery)
dest port
p_1 *
p_2 *
p_3 *
6970 This is the audio stream
1900 (used for SSDP and fallback discovery)
30981 (used for fallback discovery)
(usual) (used for fallback discovery)
20
