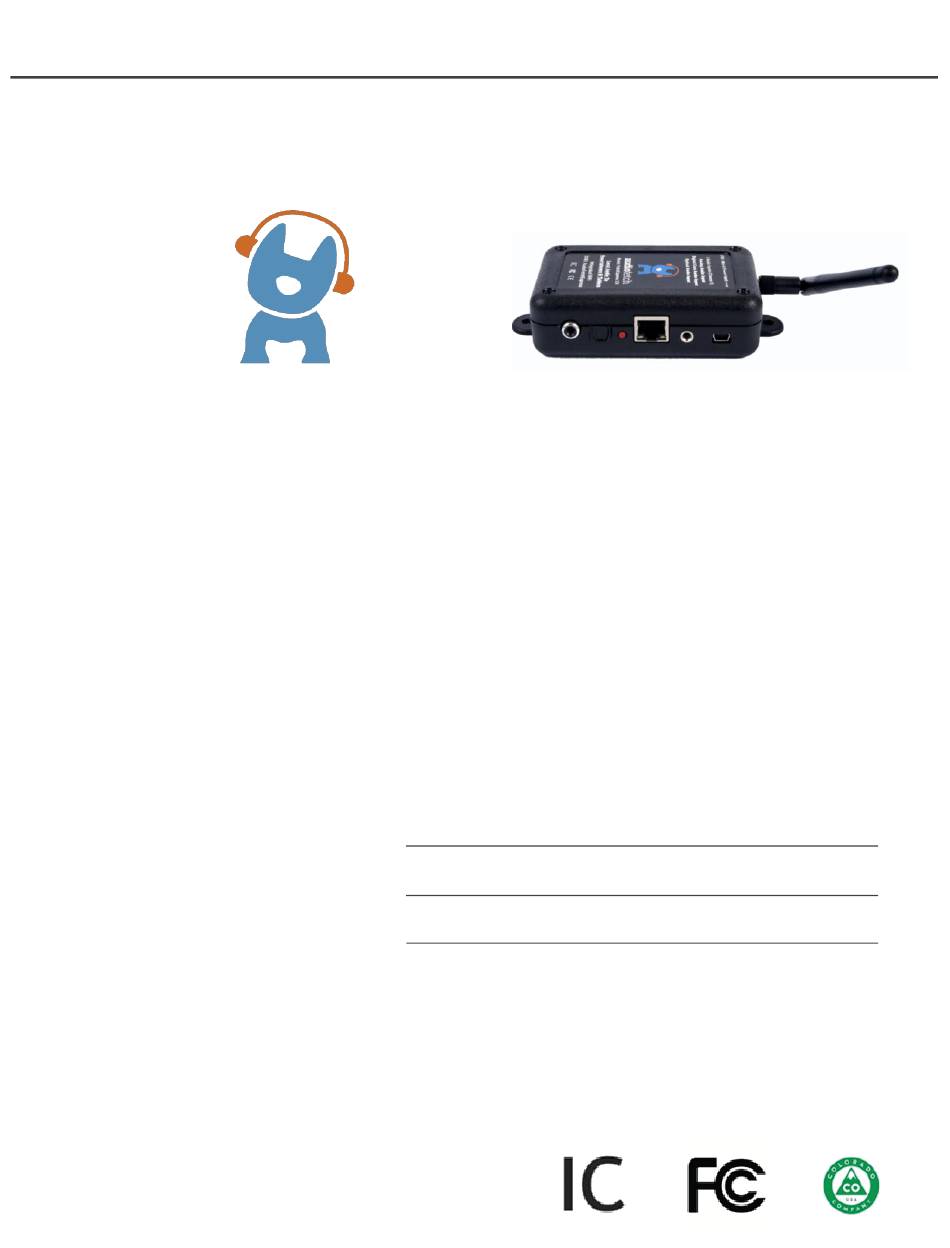

Thank you for your purchase of:
AudioFetch
By Broadcastvision Entertainment

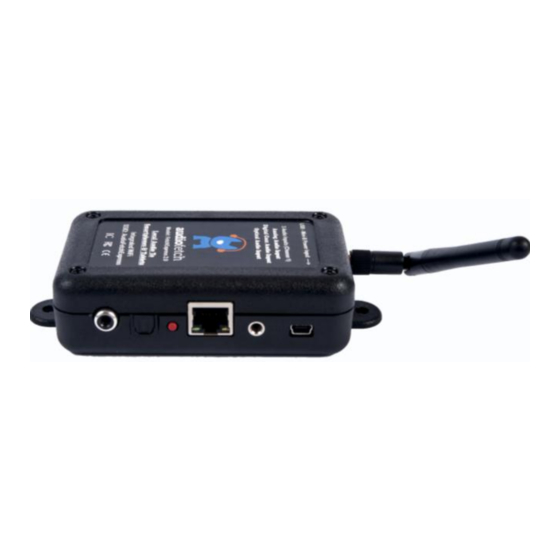

AudioFetch Express is a compact cost effective solution delivering high-quality low-latency
audio from TVs, STBs, or other audio sources via Wi-Fi to personal mobile devices such as
smartphones and tablets.
The integrated Wi-Fi is by default configured as an Access Point. Or the AudioFetch Express
can be connected wired or wirelessly into a pre-existing Wi-Fi network enabling greatly
simplified installations in fitness clubs, sports bars, movie theaters, waiting rooms,
meetings, conventions or wherever users need convenient access to in-house audio
sources.
Your AudioFetch application is as follows:
Proposal Number
AF Express Networking Mode :
Specific Cables Requested
Note: If no specific cables or lengths are requested, a 6' RCA to 3.5mm jack cable will
be included.
Additional cable lengths and types are available at www.monoprice.com
Please call technical support at 888.330.4283 x3 if your application differs from the above.
06-Feb-2017
AudioFetch Express User Manual
Express
:
Access Point / Wireless Client / Wired Only
:
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Broadcastvision Entertainment AudioFetch Express
Summary of Contents for Broadcastvision Entertainment AudioFetch Express
- Page 1 TVs, STBs, or other audio sources via Wi-Fi to personal mobile devices such as smartphones and tablets. The integrated Wi-Fi is by default configured as an Access Point. Or the AudioFetch Express can be connected wired or wirelessly into a pre-existing Wi-Fi network enabling greatly...
-
Page 2: Table Of Contents
CONTENTS The AudioFetch App Connecting AudioFetch Express to audio sources and Wi-Fi AudioFetch “Swag” - Signage, Cardio Clings, Table Tents, & Window Stickers The AudioFetch Ad Portal – post your custom content to the bottom of the App Configuration Management -“The Doghouse”... - Page 3 Note that RCA and digital coax connections are not the same. A digital coax output (on TV, etc.) cannot connect into the AudioFetch Express analog input. An RCA analog output (from TV, etc.) cannot connect into the AudioFetch Express digital coax input. The configuration management pages can be logged into as described below to determine if a good audio signal is connected into the channel.
-
Page 4: The Audiofetch App
3. AudioFetch “Swag” - TV Signage, Table Tents, Cardio Clings and Window Stickers Post the provided signage on the TVs. Cardio clings, table tents and door/window stickers are provided to enable patrons to easily obtain and use the AudioFetch app. 4. -
Page 5: Configuration Management -"The Doghouse
Mode) or connected to the AudioFetchExpress Wi-Fi network (when operating in Access Point mode). First, ensure your device is connected to the same network as AudioFetch Express. Option to use Doghouse on a Windows device: Run the Doghouse Utility found www.audiofetch.com/doghouse... - Page 6 You will see a welcome page similar to below: Use the links in the NAVIGATION section to access each of the configuration pages, which are described below. Network Setup Check the “Use Automatic IP Address” box to AudioFetch receive its’ IP address automatically (from the network’s DHCP server).
- Page 7 When this button is clicked, the settings are saved and the AudioFetch Express box will automatically restart. If DHCP assigns a new/different IP address after the restart, then use the Doghouse Utility again to reconnect to the...
- Page 8 Wi-Fi Module Network Configuration The Wi-Fi module networking modes may be selected and configured through the FetchEx Setup Doghouse Page: There are some important points one must keep in mind when using this page to reconfigure the network settings of the Wi-Fi module: ...
- Page 9 o You will need to reconnect your PC/device to the AFE via the new networking mode, in order to re-establish access to the Doghouse (just like starting from scratch) Any mistake made in the settings, could cause the AFE to become inaccessible after the “Save Settings”...
- Page 10 a. Cause the Status LEDs to begin a “marching” pattern to indicate the save is still in- progress. The march will be: yellow, green, red, repeat…. b. Save the new settings (they will survive subsequent power cycles) i. The save will take some time in the module, the LEDs will continue marching c.
- Page 11 Multi-Box Setup Where several audio sources exist (multiple TVs, etc.), multiple AudioFetch and or AudioFetch Express boxes can be operated simultaneously on the same network, the AudioFetch App will be able to receive audio from all sources (displayed as different channels on the App).
- Page 12 The current audio status (signal level, active input source) is displayed for the channel selected from the drop-down list (in AudioFetch Express only Channel 1 is available), and allows the gain to be adjusted.
- Page 13 AudioFetch Express box is connected to a working network (or operating in Access Point Mode). To set the Audio Gain: Select the desired channel to adjust from the drop-down list Monitor the Peak Audio Status number, if an active audio source is connected then it will constantly change.
- Page 14 If Peak Audio Status is too low or too high, enter a new value for Audio Gain. Values entered can be numbers like 7 or 9.0 or 12.5 (the tenths digit can only be “0” or “5”). Acceptable range is -100.0 to 20.0. Press the Enter key or click the “Save”...
- Page 15 Click anywhere in the “Connected Users per channel” area and a detailed list of currently connected users is displayed with various sorting options provided by the drop-down selector: AudioFetch provides additional monitoring statistics online, click the link at the bottom of the page to access the login page for the online reporting service. Contact AudioFetch support if you have lost or forgotten your online login credentials.
- Page 16 Tools & Utilities The Tools and Utilities page provides means to change the Doghouse username/password and options for how firmware updates are delivered to the AudioFetch box. To change username/password, enter the current credentials into the first two boxes, then enter the new username/password into the last two boxes and click the “Modify Name/Password”...
- Page 17 Other Features in AFE Doghouse The red status LED operates as an audio clipping indicator automatically during normal operation. It will turn on whenever the audio signal level is above 90% of maximum (clipping) level. This is especially useful when operating the AFE with a microphone.
-
Page 18: Restoring Factory Defaults
The CONTACT & LINKS page contains contact information in case support is required, as well as a link to the online portal. Restoring Factory Defaults Procedure: 1. Power up the AFE and allow it to fully boot (about 35 seconds) 2. - Page 19 – to indicate this selection is ready to be executed. 4. Or, instead of releasing the button, continue pressing the button and eventually (about 4 seconds later) the yellow LED will start flashing by itself, it indicates the window is “open” for selecting a factory restore for only the Wi-Fi module.
-
Page 20: Reference Information - Network Traffic
7. Reference Information - Network Traffic When AudioFetch Express is used in Access Point Mode, the built-in Wi-Fi is compatible with all required network traffic to/from connected mobile devices. However when Client Mode is used to connect to a pre-existing network, it is important to ensure that the required network traffic is able to flow between AudioFetch Express and mobile devices running the AudioFetch App. -
Page 21: Regulatory Compliance Statements
Fallback discovery traffic is required only if the network blocks standard SSDP discovery mechanism. If SSDP fails then AudioFetch will automatically fall back to alternate discovery mechanisms. In some cases, with a complex network and tight security restrictions on traffic, a DNS discovery method is required.
