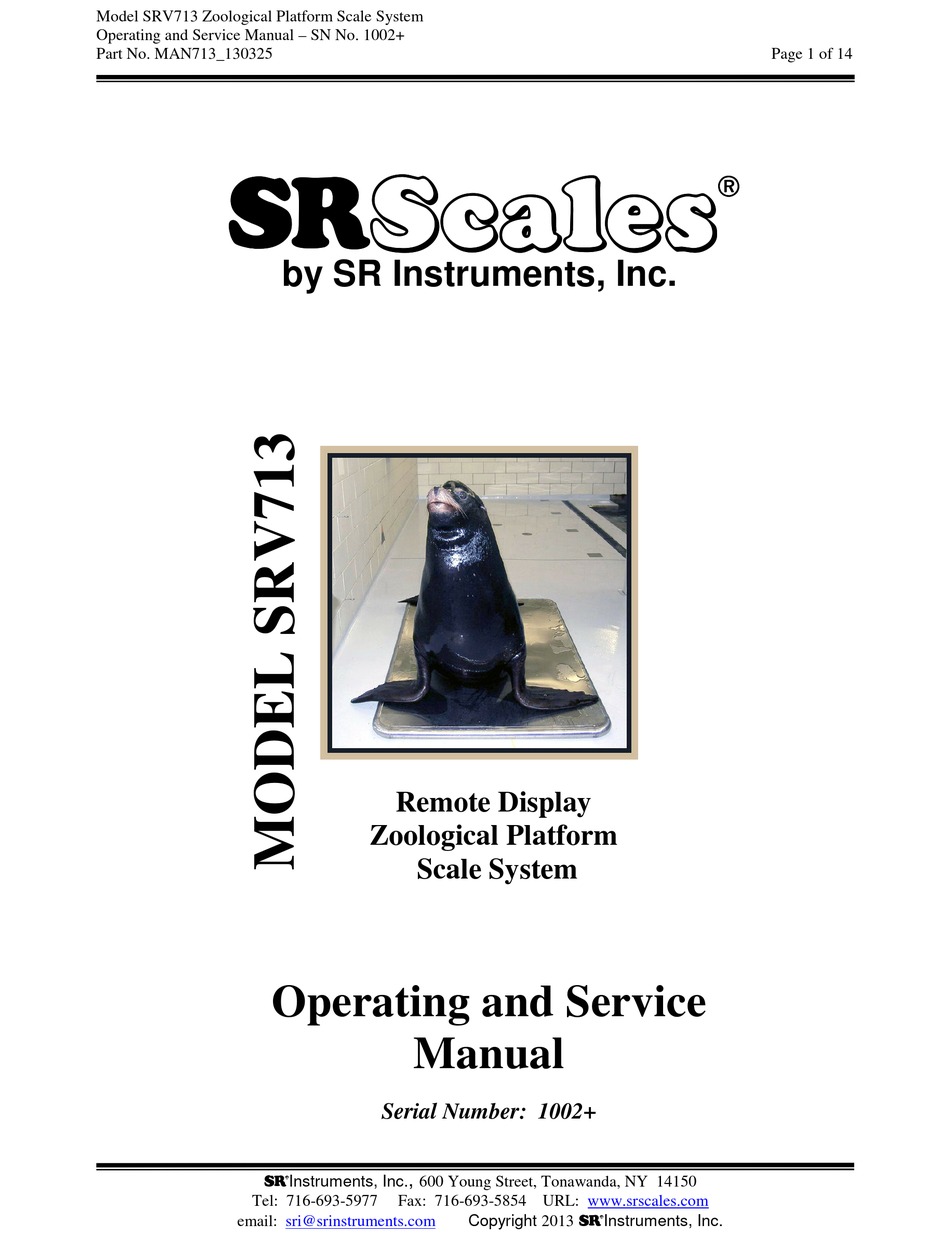

Model SRV713 Zoological Platform Scale System
Operating and Service Manual – SN No. 1002+
Part No. MAN713_130325
S
S
S
S
Operating and Service
SInstruments, Inc.
Tel: 716-693-5977
email:
by SR Instruments, Inc.
Remote Display
Zoological Platform
Scale System
Manual
Serial Number: 1002+
,
600 Young Street, Tonawanda, NY 14150
Fax: 716-693-5854 URL:
sri@srinstruments.com
www.srscales.com
Copyright 2013 SInstruments, Inc.
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for SR Instruments SR Scales SRV713
Summary of Contents for SR Instruments SR Scales SRV713
- Page 1 Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 1 of 14 by SR Instruments, Inc. Remote Display Zoological Platform Scale System Operating and Service Manual Serial Number: 1002+ SInstruments, Inc.
-
Page 2: Table Of Contents
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 2 of 14 TABLE OF CONTENT TABLE OF FIGURES ........................2 PACKING CHECKLIST – MODEL SRV713 ................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............5 MAINTENANCE AND CLEANING ....................5 STORAGE AND TRANSPORTATION ..................6... -
Page 3: Packing Checklist - Model Srv713
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 3 of 14 PACKING CHECKLIST – Model SRV713 Remote Display Zoological Platform Scale System √ √ √ √ DESCRIPTION QUANTITY DISPLAY UNIT 1 ea SCALE PLATFORM 1 ea... -
Page 4: Assembly
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 4 of 14 ASSEMBLY STEP 1: Unpack the scale system and check parts PART NAME against the PACKING CHECKLIST. If there are any Display Unit missing or damaged parts, please call the Service Scale Platform... -
Page 5: Replacement Parts And Accessories
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 5 of 14 REPLACEMENT PARTS and ACCESSORIES Part # Description ES7485 Display Label FKS5210039 Adjustable foot FCS3152-3 Cable Assembly 65” SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SRV713 Remote Display Zoological Platform Scale System employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. -
Page 6: Storage And Transportation
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 6 of 14 STORAGE and TRANSPORTATION If storing this equipment for periods longer than three (3) months, remove the batteries. To maintain proper operation of this instrumentation, storage and transport conditions should not vary outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14°F to 122°F (-10°C to +50°C). -
Page 7: Button Functions
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 7 of 14 BUTTON FUNCTIONS Figure 3: SRV713 Display Label ZERO The “ZERO” button is used to zero the system before placing an animal onto the scale system. -
Page 8: Battery Replacement
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 8 of 14 BASIC SYSTEM OPERATION Cont’d Press the “HOLD” button once to lock the displayed reading and store it in memory as the “last weight”... -
Page 9: Theory Of Operation
Page 9 of 14 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an analog to digital converter. The digital signal is transferred to a micro-controller where it is filtered, converted to appropriate units and displayed on a liquid crystal display. -
Page 10: Calibration
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 10 of 14 CALIBRATION IMPORTANT CALIBRATION CHECK - Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. - Page 11 Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 11 of 14 CALIBRATION con’t STEP 2: Select two (2) known calibrated weights, traceable to NIST. NOTE: The first weight should be at least 500 pounds (half of the maximum scale capacity). The second weight should be less than half of the first weight.
-
Page 12: Troubleshooting
Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 12 of 14 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Press the “WEIGH” button or remove one battery. The characters only appear on half of the Wait five seconds, then re-install the battery and try display. -
Page 13: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. - Page 14 Model SRV713 Zoological Platform Scale System Operating and Service Manual – SN No. 1002+ Part No. MAN713_130325 Page 14 of 14 By S S Instruments, Inc. Precision & Technology in Perfect Balance ® SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com...
