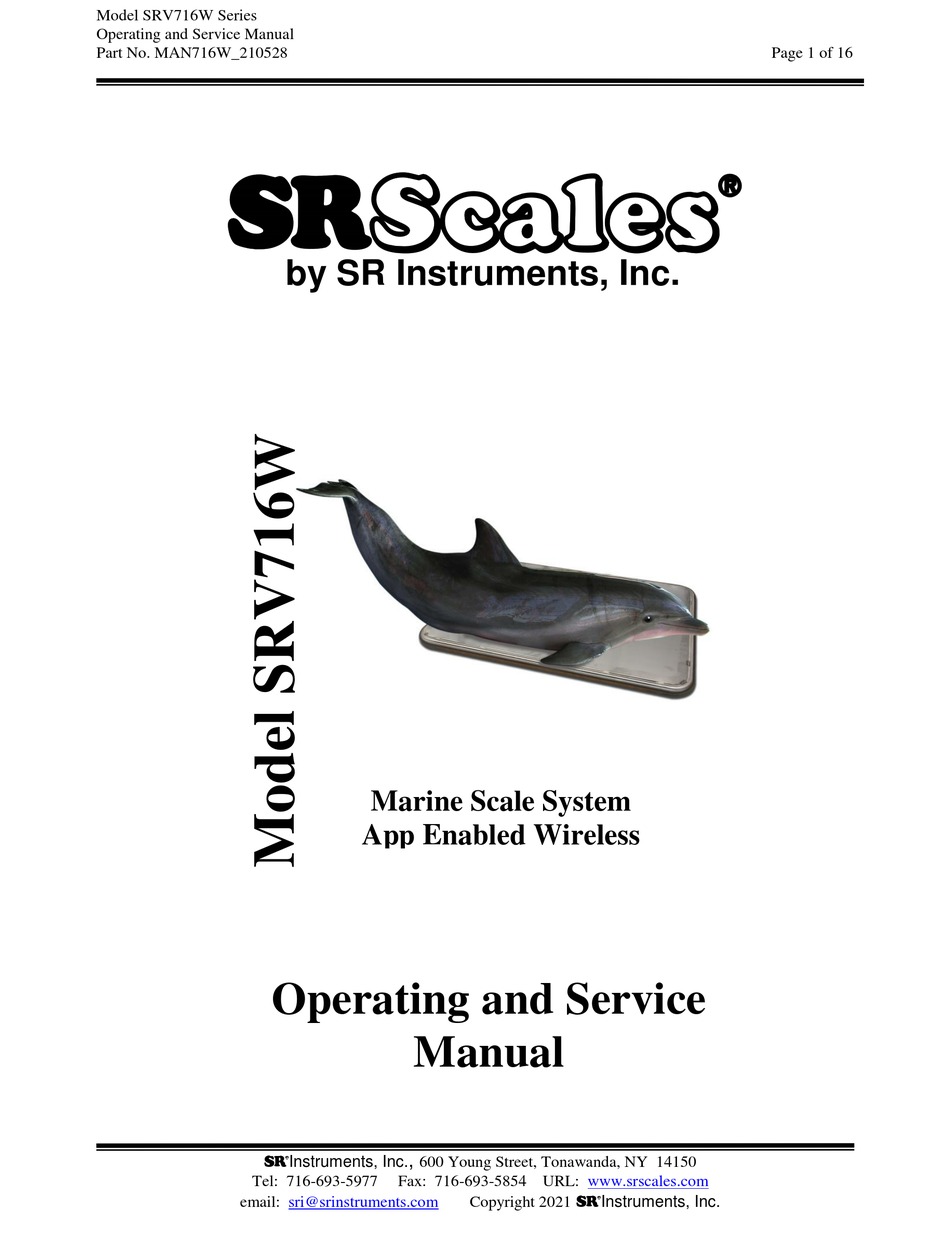

Model SRV716W Series
Operating and Service Manual
Part No. MAN716W_210528
Page 1 of 16
S
by SR Instruments, Inc.

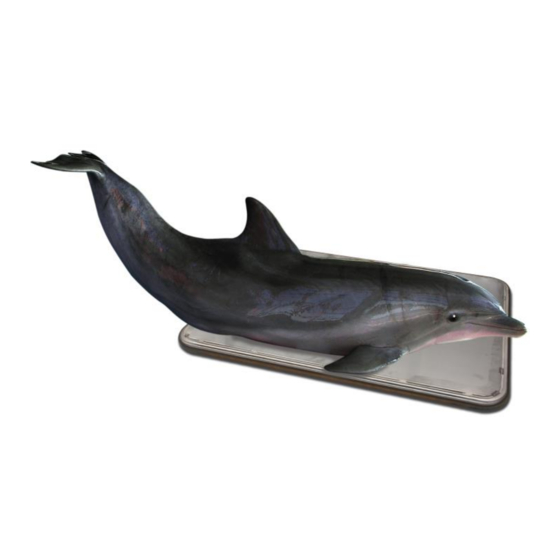

Marine Scale System
App Enabled Wireless
Operating and Service
Manual
SInstruments, Inc.
,
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2021 SInstruments, Inc.
email:
sri@srinstruments.com
Advertisement
Table of Contents
Related Manuals for SR Instruments SRScales SRV716W Series
Summary of Contents for SR Instruments SRScales SRV716W Series
- Page 1 Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 1 of 16 by SR Instruments, Inc. Marine Scale System App Enabled Wireless Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com...
-
Page 2: Table Of Contents
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 2 of 16 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST - MODEL SRV716W ................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................4 SYSTEM DESCRIPTION AND INTENDED USE ...............5 STORAGE AND TRANSPORTATION ..................5 CLEANING AND DISINFECTING ....................6 SPECIFICATIONS...........................7 BUTTON FUNCTIONS ........................8... -
Page 3: Packing Checklist - Model Srv716W
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 3 of 16 PACKING CHECKLIST - Model SRV716W Marine Platform Scale DESCRIPTION QUANTITY PLATFORM SCALE 1 ea PACK OF SIX (6) “AA” BATTERIES 1 ea CALIBRATION CERTIFICATE 1 ea WARRANTY CARD 1 ea TABLET AND CASE... -
Page 4: Assembly
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 4 of 16 ASSEMBLY STEP 1: Unpack the Marine Scale Platform (1) and check parts against the PACKING CHECKLIST. If there are any missing or damaged parts, call the Service Hotline at: 1-800-654-6360. STEP 2: Place the Platform upside-down on the floor and remove the cover on the Battery Compartment. -
Page 5: System Description And Intended Use
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 5 of 16 SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SRV716W Marine Platform Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched Load Cells are environmentally sealed and strategically placed to ensure an accurate representation of the subject’s weight. -
Page 6: Cleaning And Disinfecting
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 6 of 16 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas: Use a soft cloth dampened with water and mild detergent to clean scale surfaces. ... -
Page 7: Specifications
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 7 of 16 SPECIFICATIONS MAXIMUM WEIGHT 2000 lb. / 907 kg. (Minimum 10 lb.) CAPACITY 36 in x 54 in x 2 ¾ in PLATFORM SIZE 91 cm x 137 cm x 7 cm DISPLAY TYPE LCD DISPLAY RESOLUTION 0.2 lb / 0.1 kg 0.2% +/- 1 digits of displayed resolution for calibrated... -
Page 8: Button Functions
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 8 of 16 BUTTON FUNCTIONS The “DISPLAY” button is used to turn the system on and display the subject’s weight. The “DISPLAY” button is also used to zero the system by pressing and holding the “DISPLAY” button for 2-3 seconds. -
Page 9: Sr Scales App
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 9 of 16 SR SCALES APP Use the free SR Scales app (Google Play store) to connect with the scale from any Android device to allow for remote wireless operation. Use your Android device to display weight and control the SRV716W scale functions (Figure 3). -
Page 10: Battery Replacement
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 10 of 16 BATTERY REPLACEMENT Battery Cover Figure 4: Battery Replacement REPLACING BATTERIES When battery replacement is needed, an indicator will appear on the display. STEP 1: Turn the platform over and remove the four screws on the Battery Cover (Figure 4). Remove and replace the six (6) “AA”... -
Page 11: Theory Of Operation
Page 11 of 16 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an analog to digital converter. The digital signal is transferred to a micro-controller where it is filtered, converted to appropriate units and displayed on a liquid crystal display. -
Page 12: Calibration
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 12 of 16 CALIBRATION IMPORTANT CALIBRATION CHECK Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. Re-calibration is generally not required, but should be verified periodically to ensure accuracy. -
Page 13: Troubleshooting
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 13 of 16 CALIBRATION (Cont’d) STEP 10: When the display reads “FULL”, place the weight from Step 1 on the platform and press the DISPLAY button. STEP 11: Press the DISPLAY button once more to save. To exit without saving, press S4 to select “QUIT”, then press the DISPLAY button STEP 12: When finished making adjustments, remove all weight from the scale. -
Page 14: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. -
Page 15: Notes
Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 15 of 16 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc. email: sri@srinstruments.com... - Page 16 Model SRV716W Series Operating and Service Manual Part No. MAN716W_210528 Page 16 of 16 By S Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc. email: sri@srinstruments.com...
