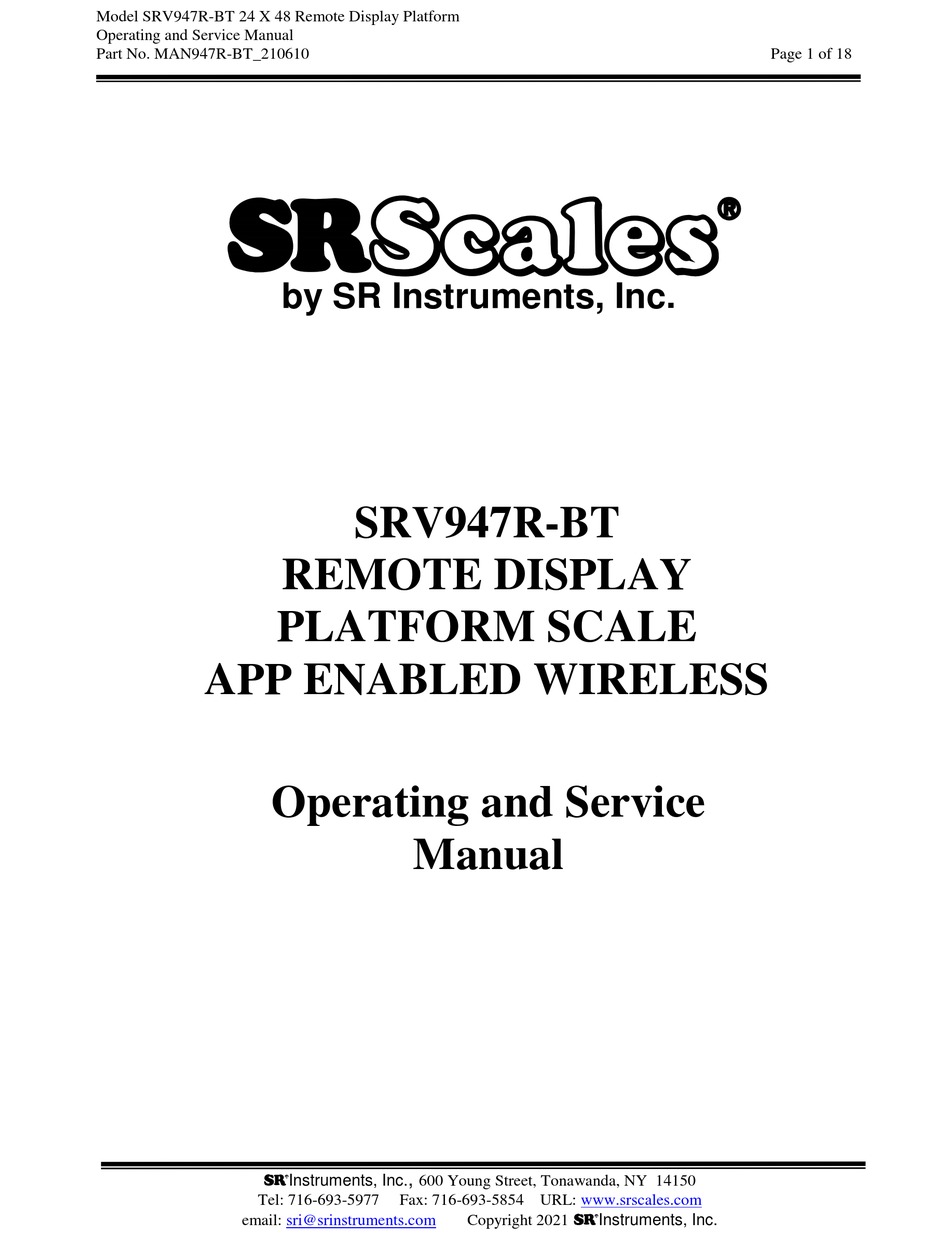

Model SRV947R-BT 24 X 48 Remote Display Platform
Operating and Service Manual
Part No. MAN947R-BT_210610
S
APP ENABLED WIRELESS
Operating and Service
SInstruments, Inc.
Tel: 716-693-5977
email:
by SR Instruments, Inc.
SRV947R-BT
REMOTE DISPLAY
PLATFORM SCALE
Manual
,
600 Young Street, Tonawanda, NY 14150
Fax: 716-693-5854 URL:
sri@srinstruments.com
www.srscales.com
Copyright 2021 SInstruments, Inc.
Page 1 of 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRScales SRV947R-BT and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SRScales SRV947R-BT

Summary of Contents for SR Instruments SRScales SRV947R-BT

  • Page 1 Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 1 of 18 by SR Instruments, Inc. SRV947R-BT REMOTE DISPLAY PLATFORM SCALE APP ENABLED WIRELESS Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150...

  • Page 2: Table Of Contents

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 2 of 18 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST – MODEL SRV947R-BT ..............3 ASSEMBLY............................3 SYSTEM DESCRIPTION AND INTENDED USE ...............4 STORAGE AND TRANSPORTATION ..................4 CLEANING AND DISINFECTING ....................5 SPECIFICATIONS...........................6 BUTTON FUNCTIONS ........................7...

  • Page 3: Packing Checklist - Model Srv947R-Bt

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 3 of 18 PACKING CHECKLIST – Model SRV947R-BT Remote Display Platform Scale  DESCRIPTION QUANTITY SCALE BASE 1 ea. SCALE DISPLAY 1 ea. MOUNTING HARDWARE 1 ea.

  • Page 4: System Description And Intended Use

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 4 of 18 SYSTEM DESCRIPTION AND INTENDED USE SYSTEM DESCRIPTION The SRV947R-BT Portable Platform Scale is a low profile design, 2 in. height, which allows the animal easy step access.

  • Page 5: Cleaning And Disinfecting

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 5 of 18 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas:  Use a soft cloth dampened with water and mild detergent to clean scale surfaces. ...

  • Page 6: Specifications

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 6 of 18 SPECIFICATIONS MAXIMUM WEIGHT CAPACITY 400 lb / 182 kg 24 in x 48 in x 2 in PLATFORM SIZE (61 cm x 122 cm x 5 cm) DISPLAY TYPE 1.0”...

  • Page 7: Button Functions

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 7 of 18 BUTTON FUNCTIONS Figure 1: SRV947R-BT Button Label The “ZERO/WEIGH” button is used to clear the Recall memory and start a new ZERO weighing cycle.

  • Page 8: Basic System Operation

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 8 of 18 BASIC SYSTEM OPERATION TURNING SYSTEM ON Make sure the scale is free and clear of any obstructions and all six feet are touching a level surface.

  • Page 9: Sr Scales App

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 9 of 18 SR SCALES APP Use the free SR Scales app (Google Play store) to connect with the scale from any Android device to allow for remote wireless operation.

  • Page 10: Theory Of Operation

    Page 10 of 18 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by analog to digital converter. The digital signal is transferred to a micro- controller where it is filtered, converted to appropriate units, and displayed on a liquid crystal display.

  • Page 11: Calibration

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 11 of 18 CALIBRATION IMPORTANT CALIBRATION CHECK Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason.
  • Page 12 Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 12 of 18 CALIBRATION (CONT’D) INITIAL SYSTEM SETUP When initially set up, calibration is factory set and re-calibration is not needed. The Local Gravitational Acceleration may have to be re-set for the current geographical location for improved accuracy.
  • Page 13 Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 13 of 18 CALIBRATION (CONT’D) Set the Gravitational Acceleration (Optional) NOTE: Setting the local gravitational acceleration, “gLOC”, will not affect the calibration. The local gravitational acceleration, “gLOC”, will become the calibrated gravitational acceleration, “gCAL”...
  • Page 14 Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 14 of 18 CALIBRATION (CONT’D) Set the Half-Scale value NOTE: The Half-Scale value is used only with the three-point calibration. It is a value between zero and the Full Scale values.

  • Page 15: Troubleshooting

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 15 of 18 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Weight reading is much lower than Check that the platform is clean underneath, stand on expected. each of the four corners to see if one corner is not weighing correctly.

  • Page 16: Notes

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 16 of 18 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc. email: sri@srinstruments.com...

  • Page 17: Display Mounting Template

    Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 17 of 18 DISPLAY MOUNTING TEMPLATE Determine installation location for scale and display, keeping in mind the display cable length is six (6) feet and the display power cord length is four (4) feet. The display may lay flat on a desk or end table.
  • Page 18 Model SRV947R-BT 24 X 48 Remote Display Platform Operating and Service Manual Part No. MAN947R-BT_210610 Page 18 of 18 By SInstruments, Inc. Precision & Technology in Perfect Balance  SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc.
