Model SRV714 Series
Operating and Service Manual
Part No. MAN714_200601
Page 1 of 14
S
by S Instruments, Inc.
+1256 kg

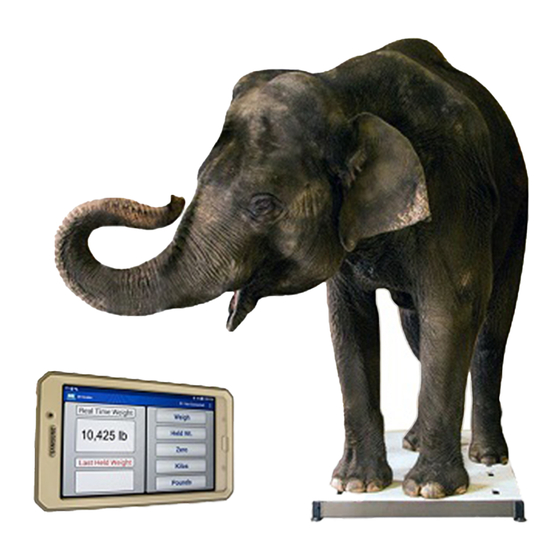

Large Animal Platform
Scale
App Enabled Wireless
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2020 SInstruments, Inc.
email:
sri@srinstruments.com
Advertisement
Table of Contents
Related Manuals for SR Instruments SRScales SRV714 Series
Summary of Contents for SR Instruments SRScales SRV714 Series
- Page 1 Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 1 of 14 by S Instruments, Inc. +1256 kg Large Animal Platform Scale App Enabled Wireless SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc.
-
Page 2: Table Of Contents
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 2 of 14 TABLE OF CONTENTS PACKING CHECKLIST - Model SRV714 ..................3 ASSEMBLY............................4 REPLACEMENT PARTS and ACCESSORIES ................6 SYSTEM DESCRIPTION and INTENDED USE .................6 MAINTENANCE and CLEANING ....................7 STORAGE and TRANSPORTATION ...................7 THEORY OF OPERATION ......................7 SPECIFICATIONS...........................8 BASIC SYSTEM OPERATION ......................9... -
Page 3: Packing Checklist - Model Srv714
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 3 of 14 PACKING CHECKLIST - Model SRV714 Large Animal Platform Scale DESCRIPTION QUANTITY TOP PANELS - 47 in (119 cm) x 31.75 in (81 cm) 3 ea TRANSDUCERS - 95 3/8 in (242 cm) x 6 in (15 cm) 2 ea DISPLAY UNIT (ATTACHED TO (1) TOP PANEL) -
Page 4: Assembly
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 4 of 14 ASSEMBLY ASSEMBLY STEPS STEP 1: Unpack Large Animal Platform Scale (1) and check parts against PACKING CHECKLIST. If there are any missing or damaged parts, call Service Hotline at: 1-800-654-6360. STEP 2: Remove the center panel to access the Display Housing (see Figure 4). -
Page 5: Figure 4: Center Panel Assembly
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 5 of 14 ASSEMBLY (CON’T) STEP 7: Carefully place the center panel with electronics on an angle on top of one of the previously assembled panels and one (1) transducer tube. When stable, plug in the two (2) transducer cables that come from the display box under the center panel to each of the transducer tubes. -
Page 6: Replacement Parts And Accessories
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 6 of 14 REPLACEMENT PARTS and ACCESSORIES Part # Description FK52001079 STAINLESS/RUBBER LEVELING FOOT MAN714 MANUAL MF9090 LOAD CELL SPACER SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SRV714 Large Animal Platform Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. -
Page 7: Maintenance And Cleaning
122F (-10C to +50C). THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an analog to digital converter. The digital signal is transferred to a micro-controller where it is filtered, converted to appropriate units and displayed on a liquid crystal display. -
Page 8: Specifications
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 8 of 14 SPECIFICATIONS MAXIMUM WEIGHT 15,000 lb. / 6800 kg. (Minimum 10 lb.) CAPACITY 47 in x 95 3/8 in x 6 in PLATFORM SIZE 119 cm x 242 cm x 15 cm DISPLAY TYPE DISPLAY RESOLUTION 5 lb / 2 kg... -
Page 9: Basic System Operation
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 9 of 14 BASIC SYSTEM OPERATION NOTE: Ensure that the scale is free and clear of any obstructions before operating. Scan for Example devices Device Figure 6: SR App Operation STEP 1: Turn the scale on. -
Page 10: Battery Replacement
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 10 of 14 BASIC SYSTEM OPERATION (CON’T) BUTTON FUNCTIONS The “WEIGH” button will display weight in pounds or kilograms as selected. The “Held Wt” button allows access to the last stable weight that was achieved. The “ZERO”... -
Page 11: Calibration
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 11 of 14 CALIBRATION IMPORTANT CALIBRATION CHECK Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. Re-calibration is generally not required, but should be verified periodically to ensure accuracy. -
Page 12: Troubleshooting
Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 12 of 14 CALIBRATION (CON’T) STEP 10: Ensure nothing is in contact with the platform then press Calibration Chart (+/- 1%) the “S1” button when the display reads “ZERO”. Applied High STEP 11: When the display reads “FULL”, place the weight from... -
Page 13: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. - Page 14 Model SRV714 Series Operating and Service Manual Part No. MAN714_200601 Page 14 of 14 By S Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
