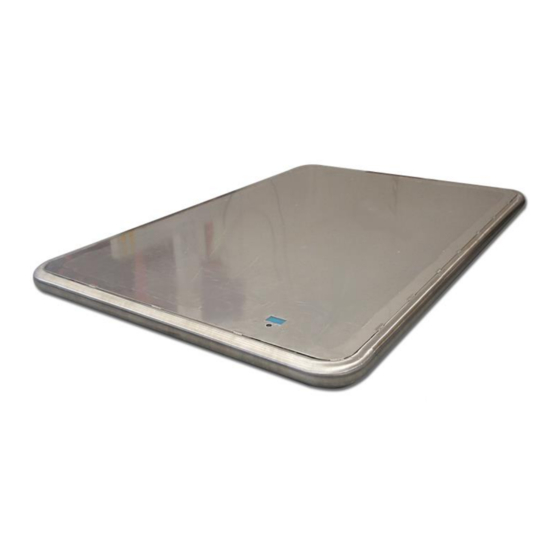

Model SRV713W Series
Operating and Service Manual
Part No. MAN713W_210526
Page 1 of 14
S
by SR Instruments, Inc.
Marine Scale System
App Enabled Wireless
Operating and Service
Manual
SInstruments, Inc.
,
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2021 SInstruments, Inc.
email:
sri@srinstruments.com
Advertisement
Table of Contents
Related Manuals for SR Instruments SRScales SRV713W
Summary of Contents for SR Instruments SRScales SRV713W

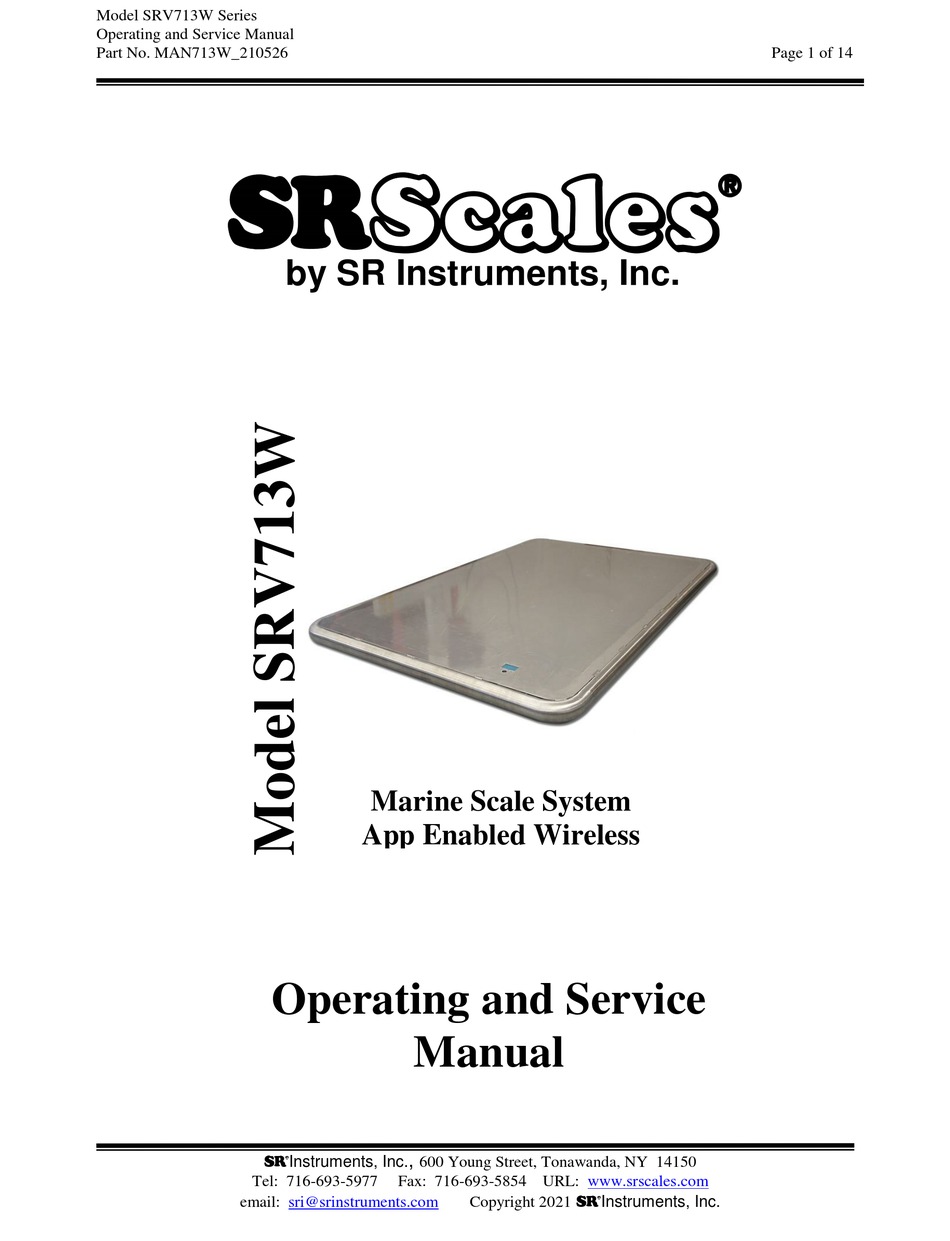

- Page 1 Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 1 of 14 by SR Instruments, Inc. Marine Scale System App Enabled Wireless Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com...
-
Page 2: Table Of Contents
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 2 of 14 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST - MODEL SRV713W ................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............5 MAINTENANCE AND CLEANING ....................6 STORAGE AND TRANSPORTATION ..................6 SPECIFICATIONS...........................7 BUTTON FUNCTIONS ........................8... -
Page 3: Packing Checklist - Model Srv713W
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 3 of 14 PACKING CHECKLIST - Model SRV713W Marine Platform Scale DESCRIPTION QUANTITY PLATFORM SCALE PACK OF SIX (6) “AA” BATTERIES 1 ea CALIBRATION CERTIFICATE 1 ea WARRANTY CARD 1 ea MANUAL 1 ea... -
Page 4: Assembly
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 4 of 14 ASSEMBLY ASSEMBLY STEPS STEP 1: Unpack the Marine Scale Platform (1) and check parts against the PACKING CHECKLIST. If there are any missing or damaged parts, call the Service Hotline at: 1-800-654-6360. STEP 2: Place the Platform upside-down on the floor and remove the cover on the Battery Compartment. -
Page 5: Replacement Parts And Accessories
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 5 of 14 REPLACEMENT PARTS and ACCESSORIES Part # Description FK5210039 RUBBER LEVELING FOOT MAN713W MANUAL SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SRV713W Marine Platform Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. -
Page 6: Maintenance And Cleaning
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 6 of 14 MAINTENANCE and CLEANING The SRV713W readout is built into the scale platform. Exercise caution when WARNING cleaning the display window as it is made of clear acrylic and can be scratched by DO NOT use pressurized water or steam. -
Page 7: Specifications
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 7 of 14 SPECIFICATIONS MAXIMUM WEIGHT 2000 lb. / 907 kg. (Minimum 10 lb.) CAPACITY 48 in x 72 in x 2 ¾ in PLATFORM SIZE 122 cm x 183 cm x 7 cm DISPLAY TYPE LCD DISPLAY RESOLUTION 0.2 lb / 0.1 kg 0.2% +/- 1 digits of displayed resolution for calibrated... -
Page 8: Button Functions
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 8 of 14 BUTTON FUNCTIONS The “DISPLAY” button is used to turn the system on and display the subject’s weight. The “DISPLAY” button is also used to zero the system by pressing and holding the “DISPLAY” button for 2-3 seconds. -
Page 9: Battery Replacement
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 9 of 14 BATTERY REPLACEMENT Battery Cover Figure 3: Battery Replacement REPLACING BATTERIES When battery replacement is needed, an indicator will appear on the display. STEP 1: Turn the platform over and remove the four screws on the Battery Cover. Remove and replace the six (6) “AA”... -
Page 10: Theory Of Operation
Page 10 of 14 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an analog to digital converter. The digital signal is transferred to a micro-controller where it is filtered, converted to appropriate units and displayed on a liquid crystal display. -
Page 11: Calibration
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 11 of 14 CALIBRATION IMPORTANT CALIBRATION CHECK Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. Re-calibration is generally not required, but should be verified periodically to ensure accuracy. -
Page 12: Troubleshooting
Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 12 of 14 CALIBRATION (Cont’d) STEP 10: When the display reads “FULL”, place the weight from Step 1 on the platform and press the DISPLAY button. STEP 11: Press the DISPLAY button once more to save. To exit without saving, press S4 to select “QUIT”, then press the DISPLAY button STEP 12: When finished making adjustments, remove all weight from the scale. -
Page 13: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. - Page 14 Model SRV713W Series Operating and Service Manual Part No. MAN713W_210526 Page 14 of 14 By S Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc. email: sri@srinstruments.com...
