Aventics R434001268 Service Information

14" Bore X 22" Stroke
INSTALLATION
Before installing this cylinder, all air lines in the
system should be blown clean to remove any
moisture or loose material. Also, the area in which
the cylinder is to be mounted should be free of any
foreign objects, which may damage the cylinder
barrel. To further ensure a long, trouble-free
service, an efficient air filter should be installed in
the system's supply line.
Start the installation by removing one cotter pin
and clevis pin from the clevis on the cap end of the
cylinder. Set the cylinder into the mounting position
with the cap clevis mating with the mounting eye.
Reinstall the clevis pin through the clevis lugs, and
the cotter pin into the clevis pin. Spread the ends of
each cotter pin so that they will not fall out. You
can now connect the piston rod end to the
mounting bracket, noting proper alignment to
eliminate any binding.
SM-1000.56

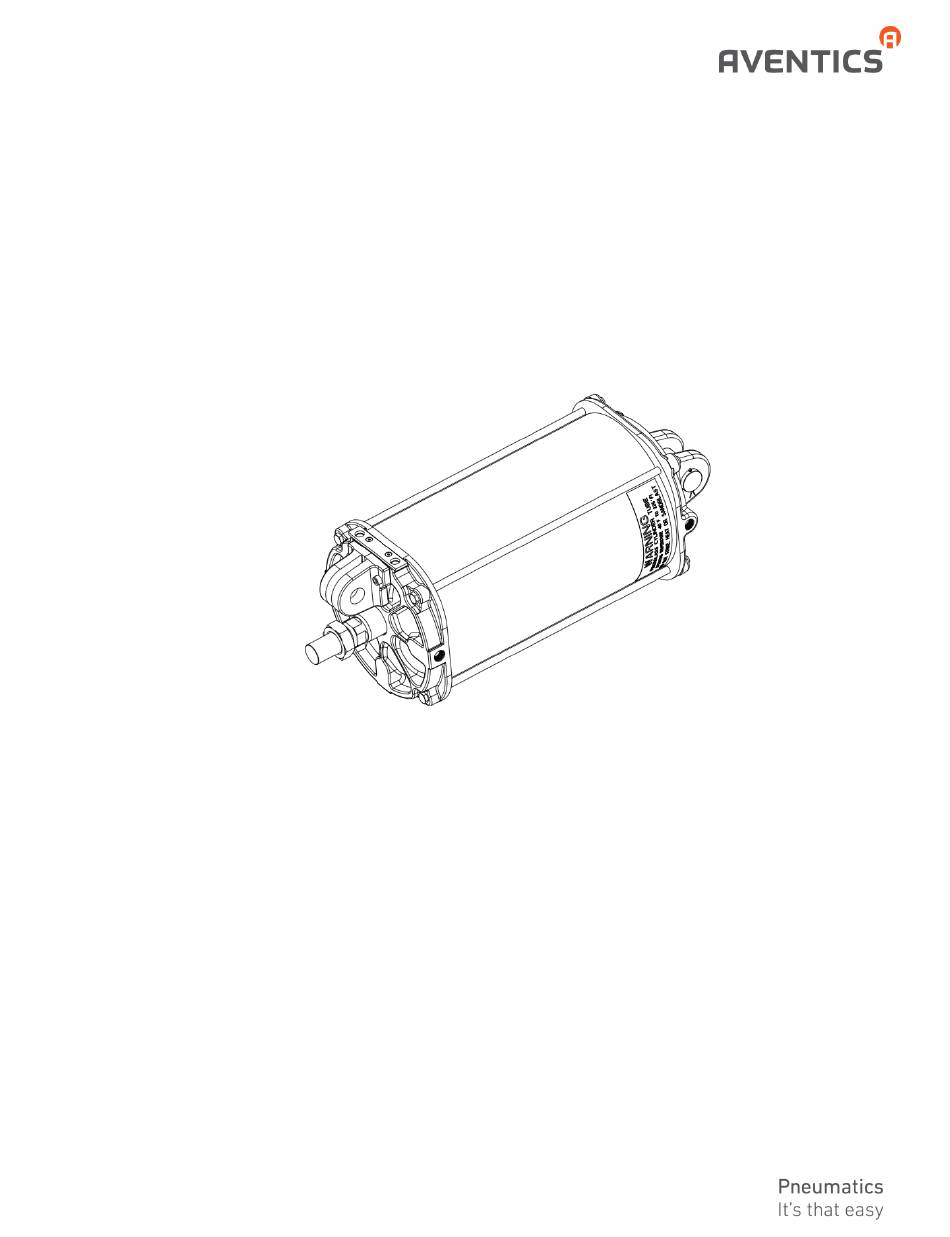

Pneumatic Cylinder
Part No. R434001268
(Formerly P -193419-00003)
Service Information
Remove the thread protectors from each pipe
port in the head and cap; connect air lines from the
directional control valve. Use pipe dope on the air
line fittings, not any kind of tape. Be sure no foreign
matter enters the ports or air lines during the time
they are open.
If the cylinder is to be painted, be sure that the
piston rod is covered, the ports are closed, and the
clevis pin is covered where it rides in the clevis.
The supply air and atmospheric (ambient)
condition must be maintained within a temperature
range of –40°F to +225°F.
