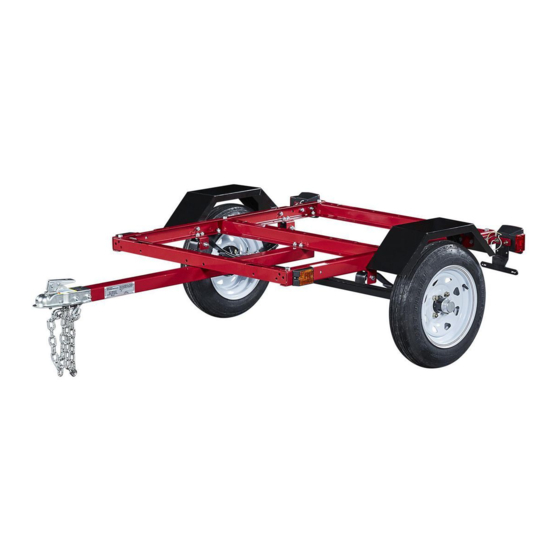

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
2015 by Harbor Freight Tools
©
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
. All rights reserved.
®
WARNING!
IMPORTANT INFORMATION
This trailer's Hitch Coupler MUST be
properly secured to the hitch ball of the towing
vehicle. After assembly and attachment, pull
up and down on the Hitch Coupler to make
sure the hitch ball is fitting snugly in the Hitch
Coupler. There must be no play between the
hitch ball and the Hitch Coupler. If there is
play, tighten the Adjustment Nut until no play
is present. If the Adjustment Nut is too tight,
the Handle will not lock. Carefully read and
follow the complete instructions in this
manual BEFORE setup or use.
If the coupler is not secured
properly, the ball could come loose
while the trailer is in motion, possibly
causing property damage, SERIOUS
PERSONAL INJURY, or DEATH.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 15f
ITEM 62645

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62645 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAUL MASTER 62645

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. REV 15f ITEM 62645 WARNING! IMPORTANT INFORMATION This trailer’s Hitch Coupler MUST be...
  • Page 2: Table Of Contents

    VEHICLE LOAD LIMIT ................21 Steps for Determining Correct Load Limit ............21 INSPECTION, MAINTENANCE, AND CLEANING ........ 21 PARTS LIST AND DIAGRAMS ............... 22 Parts List .......................22 Assembly Diagram ....................23 Wiring Diagram .....................24 Item 62645 For technical questions, please call 1-888-866-5797. PAGE 2...
  • Page 3: Specifications

    Replace or repair damaged or worn parts immediately. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only identical replacement parts. Only use accessories intended for use with this product. Approved accessories are available from Harbor Freight Tools. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 3...
  • Page 4: Specific Product Warnings And Precautions

    TRAILER LICENSING NOTICE: Some states may consider this Trailer a vehicle requiring registration, licensing, and titling. Check with your State Department of Motor Vehicles for information and guidance on registering, licensing, and titling the Trailer. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 4...
  • Page 5 NHTSA, you may either call the Auto Safety Hotline toll-free at 424-9393 or 202-366-0123 or write NHTSA, U.S. Department, 400 7th Street SW NSA-11, Washington, D.C. 20590. You may also obtain other information about motor vehicle safety from the Hotline. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 5...
  • Page 6: Assembly Instructions

    Lay out three Cross Members (4), the Right Side Rail (5A), and the Left Side Rail (5). Then assemble the parts, using Bolts (1) and Lock Nuts (3). (See Figure A.) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 6...
  • Page 7 Spring Hangers, each with a Spring Side Plate (8), to the rear portions of the Right Side Rail (5A) and the Left Side Rail (5), using Bolts (1) and Lock Nuts (3). (See Figure B.) Item 62645 For technical questions, please call 1-888-866-5797.
  • Page 8 (14) under the Slipper Springs. Place two U-Bolts (13) over each end of the Axle and each Slipper Spring. Then insert the U-Bolts through the holes in the Spring Plates and secure the Spring assembly, using Lock Nuts (3). (See Figure C.) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 8...
  • Page 9 Spindle of the Axle (12) and spread the Cotter Pin. Press each Dust Cap (22) onto each Hub (15). With assistance, turn the Trailer over so that its Tires (16) are on the floor/ground surface. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 9...
  • Page 10 TIGHTEN ALL HARDWARE! Now that frame is completely assembled, retrace all assembly steps and make sure that all hardware is properly wrench-tightened. Also, tighten lug nuts/lug bolts to 90 ft-lb. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 10...
  • Page 11 NOTE: It is recommended that only a qualified technician perform the electrical service that may be needed to enable your particular make/ model vehicle to power the Trailer’s 12 volt DC lighting system. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 11...
  • Page 12 Secure the 3/4″ plywood to the Trailer frame, using twelve 3/8″ x 1-1/2″ Cross Head Bolts, twelve 3/8″ Flat Washers, twelve 3/8″ Spring Washers, and twelve 3/8″ Nuts (none included). (See Figure H.) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 12...
  • Page 13 Cut the Stakes, Front End Rails, Back End Rails, and Side Rails to the sizes indicated in the illustration. (See Figure I.) Drill 3/8″ holes through the Stakes as indicated in the illustration. (See Figure I.) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 13...
  • Page 14 (See Figure J.) Attach the Steel Angles to the Side Rails and Front/Back Rails, using the 3/8″ x 1-3/4″ Bolts, 3/8″ Flat Washers, 3/8″ Spring Washers, and 3/8″ Nuts. (See Figure J.) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 14...
  • Page 15: Operating Instructions

    Side Running Lights (30), and Taillights (29, 29A) at least every 100 miles. Carry emergency flares, and fire extinguisher, if required for operation in your state. Carry extra bulbs and fuses if towing the Trailer at night over long distances. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 15...
  • Page 16: Tire Information

    • Vehicle normal load on the tire means- that load on an individual tire that is determined by distributing to each axle its share of the curb weight, accessory weight, and normal occupant weight and dividing by 2. Item 62645 For technical questions, please call 1-888-866-5797.
  • Page 17: Tire Markings

    For example, the numbers 2107 mean the 21st week of 2007. Any other numbers used are marketing codes used at the manufacturer’s discretion. This information is used to contact consumers if a tire defect requires a recall. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 17...
  • Page 18: Tire Inflation And Load Limit

    See the Tire Care section starting on the following page for an explanation of tire pressure and see the Vehicle Load Limit section following that for an explanation of load limit. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 18...
  • Page 19: Tire Care

    This will cause the If the tire pressure is too high in any of tires to wear more evenly and last longer. the tires and the tires have not been Item 62645 For technical questions, please call 1-888-866-5797. PAGE 19...
  • Page 20: Tire Balance And Alignment

    Castle Nut about 1/6 turn from this point. Insert a new Cotter Pin through the Castle Nut and the hole in the axle. Bend the Pin back, locking it and the Nut in place. TO CLEAN, use only water and a mild detergent. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 20...
  • Page 21: Parts List And Diagrams

    Self Tapping Screw U-Bolt (10) Seal Spring Plate Cotter Pin (3 mm) Fender Tire Grease Fitting Lug Nut R-Pin (3 mm) Bearing Safety Pin (10 x 25 mm) Washer (3/4″) Item 62645 For technical questions, please call 1-888-866-5797. PAGE 21...
  • Page 22: Assembly Diagram

    11: NUTS (M14) NOT SHOWN. 17: LUG NUTS NOT SHOWN. 21: COTTER PINS (4 MM) NOT SHOWN. 24: BOLTS (10 X 90 MM) NOT SHOWN. 36: R-PIN (3 MM) NOT SHOWN. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 22...
  • Page 23: Wiring Diagram

    (not included) is assembly. also thoroughly clean. Place fresh, clean bearing grease in the packer. Item 62645 For technical questions, please call 1-888-866-5797. PAGE 23...
  • Page 24 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
