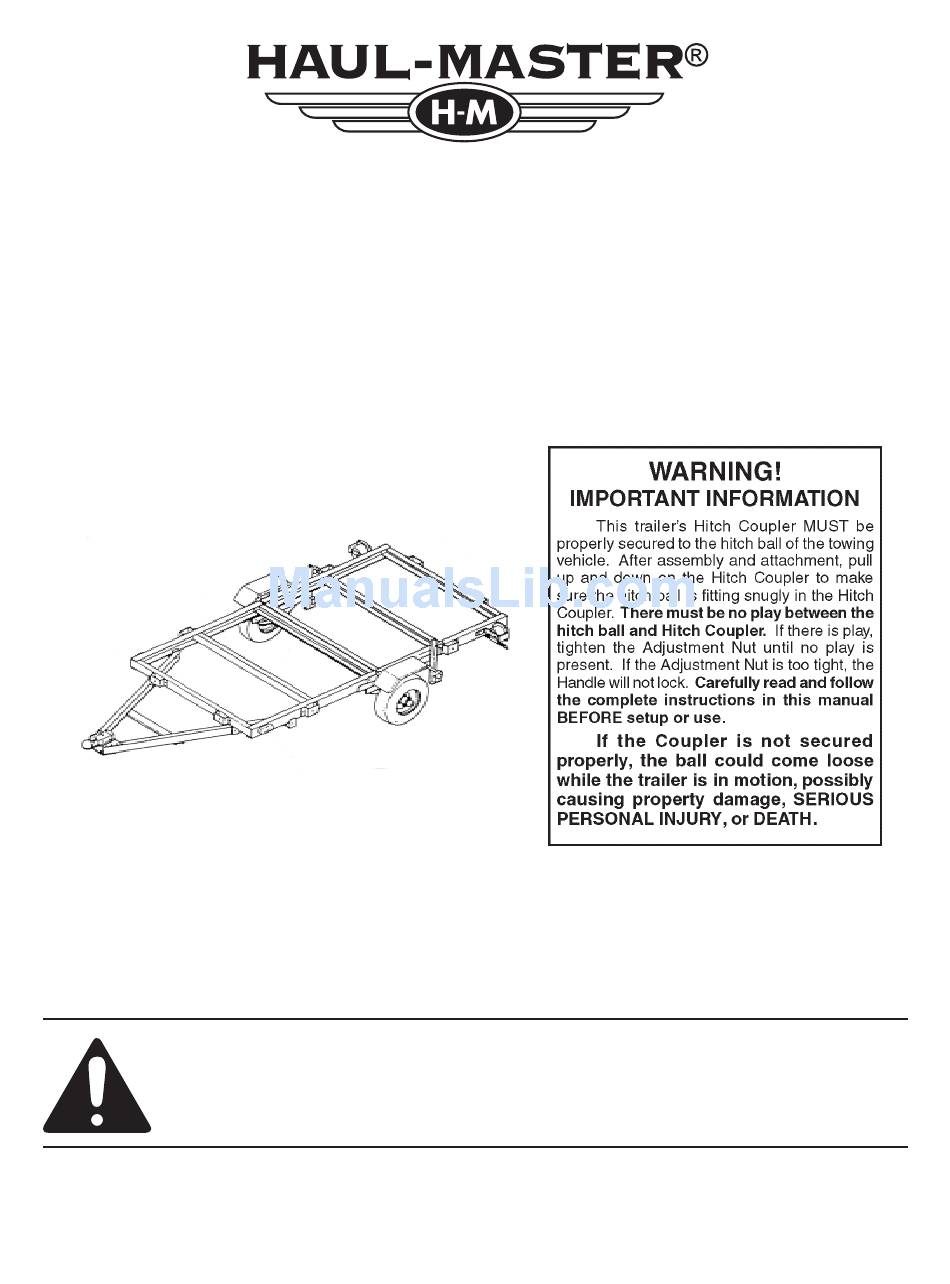

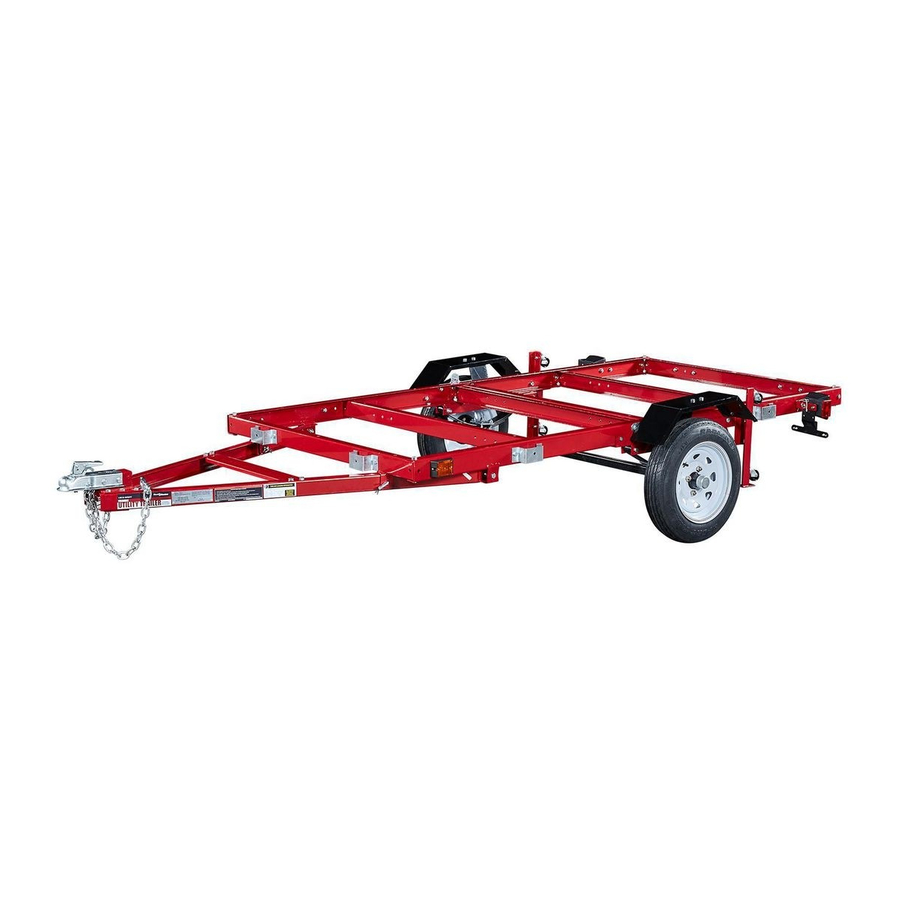

FOLDABLE - WITH 12" WHEELS
ASSEMBLY AND OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright
2003 by Harbor Freight Tools
©
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
TRAILER
MODEL 90154
3491 Mission Oaks Blvd., Camarillo, CA 93011
Manual Revised 04j; 06k; 08d; 09b
. All rights reserved. No portion of this
®
.
®
