HAUL MASTER 42708 Owner's Manual

Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.

SPECIFICATIONS

Max. Payload Capacity
GVWR
Net Weight
Rim Size
Tire Size
Tire Pressure
Hitch Ball
Bed Frame
Overall Length
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
©
Copyright 2012 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
870 lb.
1,000 lb.
125 lb.
8 x 3.75 w/4 Lug Nut Pattern
4.8 - 8 (B), 4 PR
60 PSI, cold
1-7/8", Class I
40" x 48"
81-1/2"
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved.
WARNING!
IMPORTANT INFORMATION
This trailer's Hitch Coupler MUST be
properly secured to the hitch ball of the towing
vehicle. After assembly and attachment, pull
up and down on the Hitch Coupler to make
sure the hitch ball is fitting snugly in the Hitch
Coupler. There must be no play between
the hitch ball and the Hitch Coupler. If
there is play, tighten the Adjustment Nut until
no play is present. If the Adjustment Nut is
too tight, the Handle will not lock. Carefully
read and follow the complete instructions
in this manual BEFORE setup or use.
If the coupler is not secured
properly, the ball could come loose
while the trailer is in motion, possibly
causing property damage, SERIOUS
PERSONAL INJURY, or DEATH.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

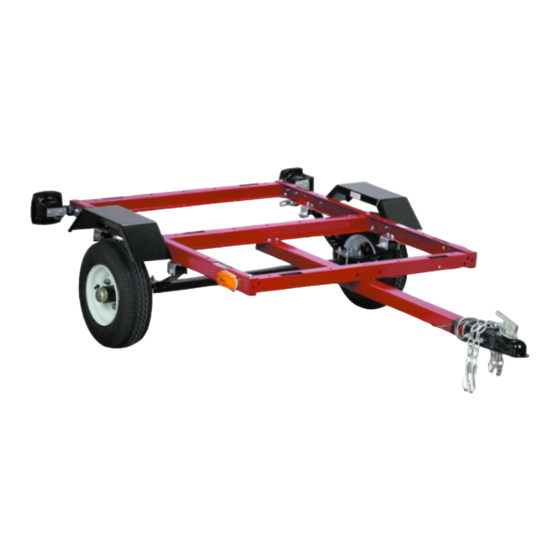

ITEM 42708
