- Page 1 User Manual Platinum 6000™ Alternating Pressure Low Air Loss Mattress Replacement System Rev. 2.0 #8046 SIZEWISE 10.05.2015 User Manual...
-
Page 2: Table Of Contents
Unpacking and Set-Up Instructions ....................8 Installation of the Platinum 6000™ System ................8 Unpacking Instructions (no tools required): ................9 Set-Up on Sizewise Bed Frames ....................9 Operating Instructions ........................10 Control Unit Operation ......................10 Switching from Metric to Imperial Units .................. 12 Cardiopulmonary Resuscitation (CPR).................. - Page 3 Semi-Permeable Top Cover ...................... 23 Storage ............................24 Troubleshooting ..........................24 Warranty Information ........................25 User Assistance Information ......................26...
-
Page 4: Definition Of Symbols
Use care in handling the Platinum 6000™ System Controller. Dropping the unit may cause internal damage and cause it to malfunction. DO NOT use a unit that shows any sign of physical damage until it has been checked by a Sizewise representative. Dust, Dirt & Tobacco Smoke ... - Page 5 Power Sources The Platinum 6000™ System should only be operated from a 120VAC 60Hz 3A, or higher, rated outlet. If unsure about the power source, consult a Sizewise representative. Lightning For added protection, the controller should be turned off and the unit unplugged from the wall during an electrical storm.
-
Page 6: Interference
Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. It is also the care provider’s ultimate decision whether or not to use bed rails with the patient. -
Page 7: Device Information

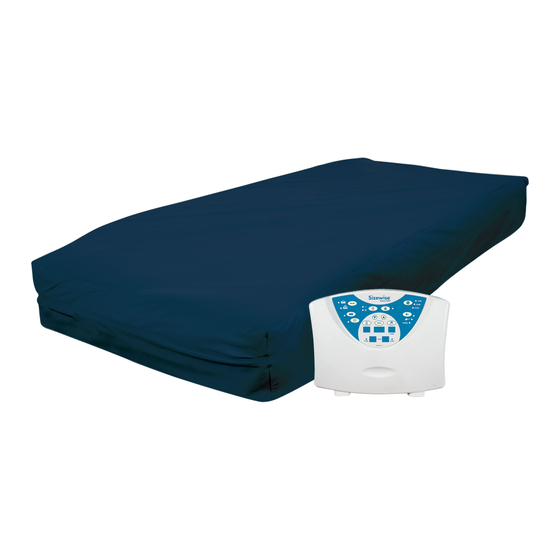

Device Information Description of the Device The Platinum 6000™ System incorporates alternating pressure therapy techniques to reduce interface pressures on the skin surface. When the patient is placed on the mattress surface, the mattress firmness is adjusted automatically after the patient’s height and weight are entered on the display panel. -
Page 8: Specifications
Specifications System Controller Mode of Use: For indoor use only Mode of Operation: Continuous L: 11.5” H: 9.2” W: 6.5” Controller Dimensions: L: 29.2 cm H: 23.4 cm W: 16.5 cm Controller Weight: 12 lbs. (5.5 kg) Atmospheric Range: 525mmHg to 795mmHg Mattress Pressure Range: 0mmHg to 50mmHg Air Pressure Zones:... -
Page 9: Compliance To Ul60601-1
Compliance to UL60601-1 This medical equipment complies with UL60601-1 which is the standard for safety testing electrical medical devices, under the following minimum conditions: An ambient temperature range of +10°C to 43°C (+50°F to 110°F) A relative humidity range of 30% to 75% ... -
Page 10: Unpacking Instructions (No Tools Required)
Set-Up on Sizewise Bed Frames Follow these steps for installation on Sizewise (and most non-Sizewise bedframes: 1. Verify mattress is the correct size for the bed frame top deck. Refer to Side Rail Entrapment Guidelines on page 18. -
Page 11: Operating Instructions
Operating Instructions Control Unit Operation Power On/Standby Toggles between Power On and Standby mode. When Power is selected, the Power LED and the other displays are illuminated, but no power is applied to the compressor until a mode is selected. If no mode is selected, Auto Firm mode is activated after 5 minutes. - Page 12 Low Pressure Warning If a problem exists with maintaining pressure in the active alternation channel, this LED will blink and an audible alarm will sound. Cycle Time This button selects the cycle time of alternating pressure between 5, 10, and 15 minute periods. When the pump is in Auto Firm or Immersion Mode, this button is not functional.
-
Page 13: Switching From Metric To Imperial Units
NOTE: The Platinum 6000™ top cover is designed for use without a top sheet. If a bottom sheet is desired, place a flat sheet over the top cover and allow it to drape over on all 4 sides of the bed. DO NOT tuck in the ends of the sheet under the mattress. The bottom sheet must have give to conform to the patient’s body profile. -
Page 14: Cardiopulmonary Resuscitation (Cpr)
Cardiopulmonary Resuscitation (CPR) Cardiopulmonary Resuscitation (CPR) requires a rapid deflation of the mattress. If CPR is required, twist the CPR Plug on the top right hand side of the mattress. Also, remove the hoses from the controller by depressing the latch on the connector for each hose to release the hose from the controller. -
Page 15: Patient Care Functions
Patient Care Functions Placing the Patient on the Mattress Surface Place the patient on the mattress surface from a bed or stretcher with a transfer device. The mattress should be set in the Auto Firm mode. In order to ensure proper immersion and envelopment of the patient, the user should: 1. -
Page 16: Prone Position
DO NOT leave a prone patient on the mattress surface. If the patient is unable to move without help, the patient’s airway may be compromised. If the patient is to be kept prone for an extended period of time, consult a Sizewise representative for assistance. Bedpan Placement & Removal Position the patient’s hips over the center of the mattress. -
Page 17: Keypad Quick Reference
Keypad Quick Reference The features available on the Platinum 6000™ System front panel are as follows: Power button Power ON mode: selectable from the Power button Standby mode: selectable from the Power button Mode button Auto Firm mode: selectable from the Mode button Alternating Pressure mode: selectable from the Mode button Alternating Pressure &... - Page 18 Cycle Time button: 5, 10 or 15 minutes for Alternating Pressure; selectable from the Cycle Time button Power Fail warning light/alarm Low Pressure warning light/alarm Alarm Silence button Up button Down button Lock button Patient Height Entry button; adjustable using the Up & Down buttons Patient Weight Entry button;...
-
Page 19: Seven Zones Of Bed Rail Entrapment
If the patient would have any clinical conditions that could result in risk of falling or improperly lying in bed, the bed should be left at its lowest setting and in flat position when not attended. Sizewise recommends the use of bed rails if they are available. There are seven zones of bed rail entrapment. -
Page 20: Mattress Cleaning Instructions
Mattress Cleaning Instructions WARNING and CAUTION: It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting. DO NOT autoclave. NOTE: Improper cleaning, rinsing or the incorrect use of cleaning agents can lead to premature fabric discoloration and breakdown of the fabric’s fluid-resistance, stain-resistance and fabric strength. -
Page 21: Laundry Instructions
Clostridium difficile (C. diff) Prevention: Clorox Germicidal Wipes (Clorox Professional Products Company), EPA Reg. #67619-12 These pre-moistened wipes meet the CDC’s recommendations for Clostridium difficile (C.diff) bacteria, after the manufacturer’s recommended “wet contact time”. 1. Perform hand hygiene using soap and warm water, or hand sanitizer, and then put on disposable gloves and eye protection. - Page 22 Mattress Base: 1. Prepare the disinfectant according to the manufacturer’s recommendations. 2. Prepare a separate bucket of warm, fresh water to be used for rinsing the equipment after cleaning/disinfecting procedures are completed as instructed. 3. All surfaces of the mattress are to be wiped using a coarse cloth dampened with the disinfectant, prepared as directed by the manufacturer’s recommendations, to remove organic material and visible soil.
-
Page 23: Control Unit Cleaning Instructions
Control Unit Cleaning Instructions NOTE: Hand clean only. DO NOT place in sterilization room or chamber. 1. Personal Protective Equipment should be used as directed by the Material Safety Data Sheet for the disinfectant. 2. Prepare the disinfectant according to the manufacturer’s recommendations. 3. -
Page 24: Maintenance
Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted immediately have them checked and/or repaired by an authorized Sizewise technician. Frequent maintenance and servicing will improve performance and extend bed life. -
Page 25: Storage
Check to be sure that unit is plugged in correctly. Unplug the Control Unit and check fuses located near the main ON/OFF switch. Replace as necessary. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service. -
Page 26: Warranty Information
Parts can be expedited upon request for an additional fee. If on-site technical service is required, a qualified service representative will be dispatched. If a product or part should be returned to Sizewise, a return authorization number (RA#) will be issued. The RA# will be valid for 21 days from the date it is issued. -
Page 27: User Assistance Information
User Assistance Information For questions or assistance with this product, contact Sizewise at: Sizewise 1600 Genessee Suite 950 Kansas City, Missouri 64102 Phone: 1-800-814-9389... - Page 28 Kansas City, Missouri 64102 Phone: 1-800-814-9389 sizewise.net Sizewise and Sizewise Rentals are trademarks of Sizewise Rentals, L.L.C. All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models.
