Summary of Contents for Sizewise ATD

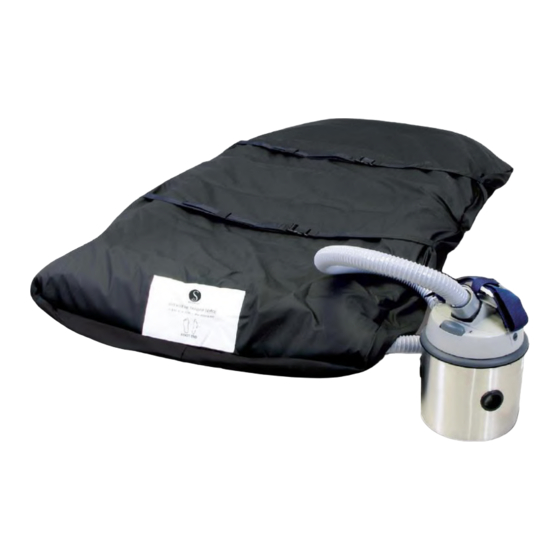

- Page 1 User Manual Sizewise™ Air Transfer Device REV 1.0 #8104 04.16.2014 User Manual...
-
Page 2: Table Of Contents
Storage and Disposal..........................10 Important Safety Instructions ........................10 Warning and Cautions..........................10 Electrical Hazards ............................. 11 The Sizewise™ ATD Support Surface Diagram ..................12 Air Supply Unit Diagrams .........................13 Frequently Ordered Parts ...........................17 How to obtain Parts and Service ....................... 18 Maintenance ...............................19... -
Page 3: Definition Of Symbols
Definition of Symbols Manual Definitions Throughout this manual different type fonts and icons are used to aid user readability and understanding of the content. Below are some examples. Standard Text Used for regular information. Bold Face Text Emphasizes a word or phrase. NOTE: SETS APART... -
Page 4: Device Information
Diagnostic Radiology, Nuclear Medicine, MRI, or Radiation Therapy. The Sizewise™ ATD has a weight capacity of up to 1,200 lbs (544 kg); it is available in four different widths to accommodate the body mass of the patient. -
Page 5: Specifications
Specifications Fully Inflated) Widths available…….……………………………..…28”(71 cm), 34”(86 cm), 39”(99 cm), 50”(127 cm) Height……………………..…………………………………………….…….………….……..8” (20 cm) Length……………………………………………………………….……………..….…….78” (198 cm) Weight Capacity………………………………………………………...…...……up to 1,200 lbs (544 kg) Radiolucent for X-Ray/MRI…………………………………………….…………………………….YES Use Humidity…….....................10%-70% Non-Condensing Use Temperature………………………………………..……………………50° to 104° F (10° to 40° C) Power Input…………………………………………………….………………………..120V,60 Hz, 10A Air Supply Weight…………………………………………………………………………….11 lbs (5 kg) Air Supply Material………………………………………………………………….Lexan/Stainless Steel... -
Page 6: Operating Instructions
Operating Instructions: The Sizewise™ ATD should be placed on the patient bed or stretcher prior to patient use. However, if this not the case, the patient is placed onto the transfer mattress using the common log rolling technique, the same as used to change a bed sheet. The buckled patient safety straps are attached. If the patient is lying on a pad or absorbent sheet to keep the bed clean, it can be placed on top of the mattress to help keep it clean. -
Page 7: Cleaning Instructions
The mattress should be air dried if possible. Air drying can be expedited by using the air supply unit to circulate air through the inside of the mattress. The backing of the nylon is polyurethane, and will begin to deteriorate after repeated high temperature drying. The Sizewise™ ATD mattress should never be put in the dryer. -
Page 8: Nylon Taffeta Mattress And Top Cover Cleaning Recommendations
Infection Control Whatever the patient is laying on to keep the hospital bed clean may be placed on top of the Sizewise™ ATD mattress to help keep it clean. If the mattress is used on an isolation patient, the hospital shall employ the same protocols/procedures it utilizes for the bed mattress and/or for the linen from that patient room. - Page 9 2. Use wipes to clean the top and front of head/footboards, hand controls and cords, side rails and mattress top cover, making sure to wipe between the mattress and side rails. 3. Change wipes often to ensure that surfaces remain wet with disinfectant for the manufacturer’s required contact time.
-
Page 10: Safety Tips
Safety Tips Storage and Disposal Keep the mattress in a clean dry area, away from heat or flames. Store the air supply and support surface in a temperature range between -40°F(-40°C) and 176°F (80°C). Always store the support surface flat on a clean, level surface. Avoid storage of other equipment on top of the support surface. End-of life products must be disposed of properly according to local laws and regulations. -
Page 11: Electrical Hazards
Electrical Hazards 1. Prior to each use ensure all cords are in good condition. 2. Unplug all sources of energy prior to maintenance or repair. 3. Ensure the power cord is routed free of hazards at all times. 4. Unplug power supply prior to cleaning of electronic equipment. 5. -
Page 12: The Sizewise™ Atd Support Surface Diagram
The Sizewise™ ATD Support Surface Diagram... -
Page 13: Air Supply Unit Diagrams
Air Supply Unit Diagrams Hose Attached... - Page 14 Handle Intact...
- Page 16 Filter Removed...
-
Page 17: Frequently Ordered Parts
Frequently Ordered Parts The following is a list of parts that are frequently ordered for self-replacement and repairs. To aid in ordering parts, please use the provided product numbers given below for each part. The replacement of some parts not listed here may require sending in the unit to the manufacturer for repairs. Handle Clip Kit Blower Coupler Part# 27605422... -
Page 18: How To Obtain Parts And Service
Part# 27710024 How to obtain Parts and Service Contact Sizewise Parts and Service at 1-800-814-9389 to speak with a qualified specialist who can assist with troubleshooting, parts and repairs. The product model and serial identification numbers are required for service and parts. Please have these readily available when contacting the Parts and Service department. -
Page 19: Maintenance
Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted immediately have them checked and/or repaired by an authorized Sizewise technician. Frequent maintenance and servicing will improve performance and extend mattress life. For long term... -
Page 20: Troubleshooting
Check for proper connections from the hoses to the Air Supply unit. Make sure they are secure. Check filter. If there is power loss: Check the ON/OFF switch. Check power cord for any damage. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service. -
Page 21: Warranty Information
Parts can be expedited upon request for an additional fee. If on-site technical service is required, a qualified service representative will be dispatched. If a product or part should be returned to Sizewise, a return authorization number (RA#) will be issued. The RA# will be valid for 21 days from the date it is issued. -
Page 22: User Assistance Information
User Assistance Information For questions or assistance with this product, contact Sizewise at: Sizewise 1600 Genessee Suite 950 Kansas City, Missouri 64102 Phone: 1-800-814-9389... - Page 23 Phone: 1-800-814-9389 sizewise.net Sizewise and Sizewise Rentals are trademarks of Sizewise Rentals, L.L.C. All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary s lightly from actual production models.
