- Page 1 User Manual ™ SW Alternate Mattress System #8063 Rev. 8.0 03.04.2021 User Manual...
-
Page 2: Table Of Contents
Table of Contents Definition of Symbols ........................... 2 Manual Definitions ............................2 Warnings and Cautions ..........................2 Device Information ............................4 Description of the Device ......................... 4 Indications for Use............................ 4 Specifications ..............................5 Unpacking and Set-Up Instructions ......................6 Operating Instructions ........................... -
Page 3: Definition Of Symbols
It is important to follow all instructions and special procedures to avoid electrical shock to the operator, care provider and/or patient. Edison Testing Laboratories Logo Manufacture Date European CE Marking Fuse Specifications Unit Grounding Specifications Federal Communications Sizewise Logo Commission... - Page 4 This symbol marks the location and specification of the fuse. This symbol signifies that the device is properly protected from electrical shock. Power Cord Label The hazards and warnings indicated Leakage This symbol marks the location of the Test shipping container by this Point leakage test point screw.
-
Page 5: Device Information

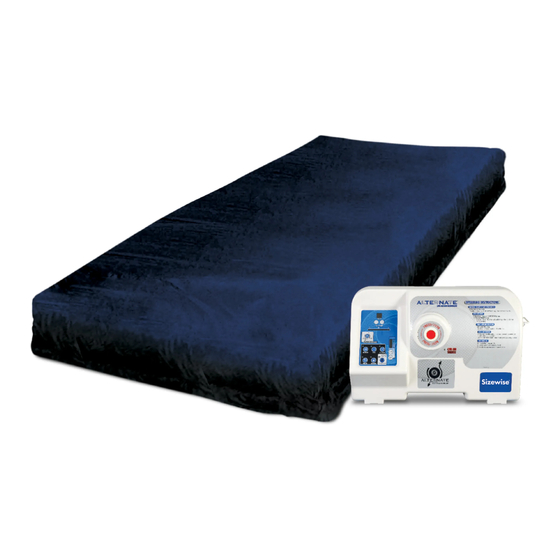

Device Information Description of the Device The SW Alternate™ Clinically Effective Low Air Loss Mattress System is comprised of a specialized inflatable air bladder (air mattress) and an electrically powered Blower/Control Unit. Purpose of the Device The purpose of the SW Alternate Clinically Effective Low Air Loss Mattress System is to provide therapeutic benefit to patients at risk, or suffering from pressure ulcers. -
Page 6: Specifications
Specifications SW Alternate Control Unit Mode of Use………………………………………………………………………………………………… For Indoor Use Only Duty Cycle....………………………………………………………………………………………………….. Continuous Controller Dimensions………………………….…..…… (LxWxH) 7.5”(19 cm) x 18.5”(47 cm) x 12”(30cm) Controller Weight……………………………………………………………………………………………… 16 Lbs. (7.26 kg) Operating Temperature…………………………………………………………………….. -18°C to 35°C (0°F to 95°F) ... -
Page 7: Unpacking And Set-Up Instructions
Unpacking and Set-Up Instructions The two principle components of the SW Alternate™ Mattress System are a specialized air inflatable bladder (Air Mattress) and an electrically powered, Air Blower/Control Unit. UNPACKING / PARTS BREAKDOWN: Parts: Air Blower/Control Unit Detachable Power Cord (Hospital Grade) -
Page 8: Operating Instructions
The following steps should be completed in installing the system: 1. Remove standard mattress from the bed. 2. Replace standard mattress with the SW Alternate™ mattress. (Be sure air tubing is at the foot end of the bed). - Page 9 i. When elevating the head section of the mattress, the FOWLER mode will automatically turn on. Fowler mode will automatically turn off when the head section of the mattress is lowered. 4. Lock Out Feature a. After 3 minutes of inactivity to blower settings, the lockout feature will activate automatically.
-
Page 10: Patient Care Functions
Patient Care Functions Placing the Patient on the Mattress Surface Place the patient on the mattress surface from a bed or stretcher with a transfer device. The mattress should be set in the Auto Firm mode. In order to ensure proper immersion and envelopment of the patient, the user should: 1. -
Page 11: Prone Position
DO NOT leave a prone patient on the mattress surface. If the patient is unable to move without help, the patient’s airway may be compromised. If the patient is to be kept prone for an extended period of time, consult a Sizewise representative for assistance. Bedpan Placement & Removal Position the patient’s hips over the center of the mattress. -
Page 12: Control Unit At-A-Glance
Fuse Locations Keyboard Instruction Function Reference On/Off Side Panel Power Fail Alarm Switch Main Power Switch Sizewise Logo U.S. Model Label Patent Sticker Power Cord Receptacle Removable foam Sizewise Rentals Auto Fowler filter/ HEPA Filter Serial Number Attachment Service Port... -
Page 13: Mattress At-A-Glance
Mattress At-A-Glance... -
Page 15: Keypad Quick Reference
Keypad Quick Reference See the following page for explanation of features. - Page 16 The features available on the Alternate™ Mattress System front panel are as follows: Enable static low air Locks all functions, loss therapy with automatically locks after 3 pressure sensors minutes. To unlock, press regulating airflow & hold for 3 seconds. Use when head Enables alternation with section of bed is...
-
Page 17: Maintenance
Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted immediately have them checked and/or repaired by an authorized Sizewise technician. Frequent maintenance and servicing will improve performance and extend product life. -
Page 18: Hepa Filter
HEPA Filter HEPA: (High Efficiency Particulate Air) filter. NOTE: HEPA filters aid in contamination control for facilities. HEPA filters do not filter out gases and odor molecules such as chemical vapors and cigarette smoke. NOTE: HEPA filter must be used in conjunction with the manufacturer supplied foam filter. DO NOT attempt to install HEPA filter without the original equipment foam filter. - Page 19 HEPA Filter Maintenance NOTE: DO NOT MODIFY HEPA filter for installation. Order filter from Sizewise to receive filter with correct dimensions. NOTE: DO NOT attempt to clean HEPA filters, as they are to be removed and replaced only. − HEPA filters must be replaced monthly.
-
Page 20: Mattress Cleaning Instructions
Mattress Cleaning Instructions WARNING and CAUTION: It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting. DO NOT autoclave. NOTE: Improper cleaning, rinsing or the incorrect use of cleaning agents can lead to premature fabric discoloration and breakdown of the fabric’s fluid-resistance, stain-resistance and fabric strength. -
Page 21: Laundry Instructions
Clostridium difficile (C. diff) Prevention: Clorox Germicidal Wipes (Clorox Professional Products Company), EPA Reg. #67619-12 These pre-moistened wipes meet the CDC’s recommendations for Clostridium difficile (C.diff) bacteria, after the manufacturer’s recommended “wet contact time”. 1. Perform hand hygiene using soap and warm water, or hand sanitizer, and then put on disposable gloves and eye protection. - Page 22 Mattress Base: 1. Prepare the disinfectant according to the manufacturer’s recommendations. 2. Prepare a separate bucket of warm, fresh water to be used for rinsing the equipment after cleaning/disinfecting procedures are completed as instructed. 3. All surfaces of the mattress are to be wiped using a coarse cloth dampened with the disinfectant, prepared as directed by the manufacturer’s recommendations, to remove organic material and visible soil.
-
Page 23: Control Unit Cleaning Instructions
Control Unit Cleaning Instructions: NOTE: Hand clean only. DO NOT place in sterilization room or chamber. 1. Personal Protective Equipment should be used as directed by the Material Safety Data Sheet for the disinfectant. 2. Prepare the disinfectant according to the manufacturer’s recommendations. 3. -
Page 24: Safety Tips
If the patient would have any clinical conditions that could result in risk of falling or improperly lying in bed, the bed should be left at its lowest setting and in flat position when not attended. Sizewise recommends the use of bed rails if they are available. There are seven zones of bed rail entrapment. -
Page 25: Storage And Disposal
Avoid storage of other equipment on top of the support surface. DO NOT expose the blower unit to humidity greater than 95%. End-of life Sizewise products must be disposed of properly according to local laws and regulations. Please contact Sizewise or your local authorities for disposal and recycling options. -
Page 26: Electromagnetic Compatibility (Emc)
80 MHz to 2.5 GHz. The test was conducted on this blower and passed the requirements of IEC 60601-1-2:2007. List of Cables & Accessories Replacement parts, such as cables and accessories, must be purchased through Sizewise to ensure proper compliance requirements. WARNING: Using other manufacturer’s cables and accessories may affect EMC performance. - Page 27 Table 201 Guidance and Manufacturer's Declaration - Emissions All Equipment and Systems The blower is intended for use in the electromagnetic environment specified below. The customer or user of this blower should ensure that it is used in such an environment. Emissions Compliance Electromagnetic Environment Guidance...
- Page 28 Table 202 Guidance and Manufacturer's Declaration - Immunity All Equipment and Systems The blower is intended for use in the electromagnetic environment specified below. The customer or user of the blower should ensure that it is used in such an environment IEC 60601 Compliance Electromagnetic Environment...
- Page 29 Table 204 Guidance and Manufacturer's Declaration - Immunity Equipment and Systems which are NOT Life-supporting The blower is intended for use in the electromagnetic environment specified below. The customer or user of the blower should ensure that it is used in such an environment. Immunity IEC 60601 Test Compliance...
- Page 30 Table 206 Recommended Separation Distances between portable and mobile RF Communications equipment and the blower. Equipment and Systems which are NOT Life-supporting Recommended Separation Distances for the blower The blower is intended for use in the electromagnetic environment in which radiated disturbances are controlled.
-
Page 31: Troubleshooting
Ensure unit is plugged into a Hospital grade receptacle. To open, insert a flat head screw driver into the center slot and turn counter clockwise. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service. -
Page 32: Frequently Ordered Parts
Attach the hooks to the bottom case of the unit. Top Cover Part Number 27502020 Replacement waterproof, vapor permeable cover. Parts Assistance Fuse/s: 6.3A 250V. For questions or assistance Part Number 27503598 with this product, contact Sizewise at: (Contact 1-800- 814-9389) -
Page 33: Warranty Information
2. If a product or part should be returned to Sizewise, a return authorization number (RA#) will be issued. The RA# will be valid for 21 days from the date it is issued. -
Page 34: User Assistance Information
User Assistance Information For questions or assistance with this product, contact Sizewise at: Sizewise 1600 Genessee Suite 950 Kansas City, Missouri 64102 Phone: 1-800-814-9389... - Page 35 Phone: 1-800-814-9389 sizewise.net Sizewise and Sizewise Rentals are trademarks of Sizewise Rentals, L.L.C. All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary s lightly from actual production models.
