- Page 1 Platinum 6000™ (Rev. 2) User Manual Doc. #8120, Rev. 1.0, Rev. Date: 05/06/19 MFG-0021C-0519...
-
Page 2: Table Of Contents
Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Product at a Glance . -
Page 3: Introduction
Product Indications and Use The purpose of Platinum 6000 is to provide therapeutic benefit to patients at risk for or suffering from pressure injuries or other skin-related injuries . The product serves as a replacement mattress and is equipped with a hose cluster that connects to the control unit, which hangs by hinged hooks on the footboard of a hospital bed frame . -
Page 4: Product At A Glance
Product at a Glance Platinum 6000™ (Rev. 2) Control Unit Front Control Unit Top 1 . Keypad 1 . Handle 2 . Keypad Quick Reference Control Unit Left Side Control Unit Right Side 1 . Unique Device Identifier (UDI) label 1 . - Page 5 4 . Manufacturer’s Serial No . label 1 . Handle 1 . Manufacturer’s label 2 . Footboard Hooks 5 . Sizewise Serial No . label 3 . Quick Reference Guide 6 . Leakage Test Point label Mattress (Out of Box) Typical Setup 1 .
-
Page 6: Specifications
Specifications Control Unit Weight 11 lbs . 5 kg Height 8 . 5 ” 22 cm Width 11 . 5 ” 29 cm Depth 6 . 5 ” 17 cm Mattress Weight (35” x 80”) 30 lbs . 14 kg Weight (39”... - Page 7 Environmental Conditions: Use 120V Control Unit 230V Control Unit Ambient Temperature 14° to 95°F (-10° to 35°C) 14° to 95°F (-10° to 35°C) Relative Humidity 30% to 75% 30% to 75% Atmospheric Pressure 525 mmHg to 795 mmHg 525 mmHg to 795 mmHg Maximum Altitude 6560 ft .
-
Page 8: Emc Information
WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 in) to any part of the Platinum 6000 control unit, including cables specified by the manufacturer . Otherwise, degradation of the performance of this equipment could result . - Page 9 Guidance and Manufacturer’s Declaration – Immunity Platinum 6000 is intended for use in the electromagnetic environment specified below . The customer or user of Platinum 6000 should ensure that it is used in such an environment . IEC 60601 Electromagnetic Environment...
- Page 10 Guidance and Manufacturer’s Declaration – Immunity Platinum 6000 is intended for use in the electromagnetic environment specified below . The customer or user of Platinum 6000 should ensure that it is used in such an environment . Immunity Electromagnetic Environment...
- Page 11 Immunity to Proximity Fields from Radio Frequency Wireless Communications Equipment In addition to the Radiated RF IEC 61000-4-3 as shown in the table above, Platinum 60000 has been tested as specified in the table below . Test Immunity Maximum Frequency Band (MHz) Service Modulation...
-
Page 12: Symbols And Definitions
Symbols and Definitions Symbols, definitions, and fonts are used throughout this manual to aid user readability and understanding of content . Standard Text Used for regular information . Bold Text Emphasizes a word or phrase . NOTE Sets apart special information or important instruction clarification . Safe Working Load The equipment’s maximum external mechanical load permitted in normal use . -
Page 13: Warnings And Cautions
WARNING: Be sure to secure mattress to bed frame with straps provided . Failure to do so could result in personal injury or equipment damage . WARNING: DO NOT use an oxygen tent near Platinum 6000™ . For more information, see Operating Environment instructions . -
Page 14: Safety Instructions
Safety Instructions Please read all of these instructions prior to operating Platinum 6000™ (Rev . 2) . Retain this information for future reference . Follow all warnings and instructions that appear on the control unit and the mattress . Handling Use care in handling the Platinum 6000 control unit . -
Page 15: Operating Environment
Operating Environment Platinum 6000™ (Rev . 2) is designed to operate in a temperature range from 14° to 95°F (-10° to 35°C) . The control unit should not be placed next to a radiator or heat source . The unit should have access to circulating room air . DO NOT operate the unit in a confined space . -
Page 16: Seven Zones Of Bed Rail Entrapment
Seven Zones of Bed Rail Entrapment WARNING: Bed rail entrapment can result in serious injury or even death . Sizewise recommends caregivers be mindful of the FDA guidelines relevant to bed rail entrapment . These guidelines can be found on the FDA website as referenced below . -
Page 17: Unpacking And Setup Instructions
. Setup Instructions 1 . Remove existing mattress from bed frame and replace with Platinum 6000 . Orient mattress so that hose cluster is at the foot end of bed frame . -
Page 18: Control Unit Keypad

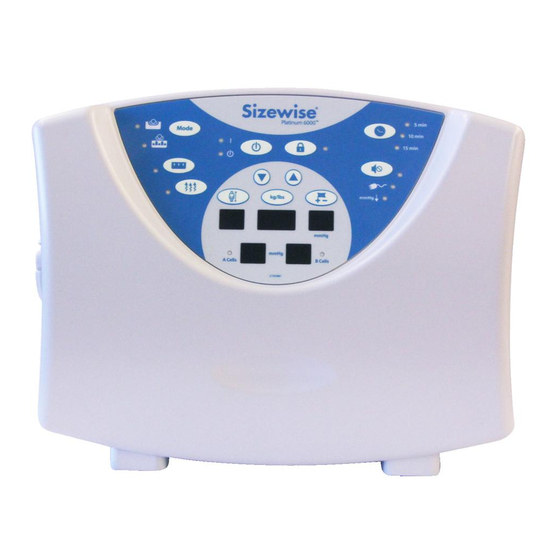

For Photo Overlay and QRG Control Unit Keypad ™ Platinum 6000 5 min Mode 10 min 15 min mmHg kg/lbs mmHg mmHg A Cells B Cells Immersion Therapy Microclimate Management Lock/Unlock Alternation Therapy Power/Standby Low Pressure Warning mmHg Autofirm Patient Height Input... -
Page 19: Operating Instructions
2 . Pressure digits will display 40 mmHg . Height and weight digits will remain blank . 3 . Platinum 6000 will enter Autofirm mode with the Autofirm LED illuminated . 4 . Both cells (A and B) will fill to 40 mmHg; A Cells will fill first, followed by B Cells . The A and B LEDs will be lighted while the respective cells are filling . -
Page 20: Patient-Specific Adjustments
Patient-Specific Adjustments After setting Therapy Mode, customize the mattress for your patient by following three steps: Patient Height • Press the Patient Height button . • Use the Up/Down Arrow buttons to adjust patient height in 2 in . increments . The range for this setting is 48-80”... -
Page 21: Alarms
Alarms Power Failure • The light will blink and an audible alarm will sound to indicate that AC power has been removed . • The mattress will remain inflated in the event AC power has been removed . • Pressing the Alarm Silence button will turn off the audible alarm . The light will continue to blink until AC power is restored . -
Page 22: Patient Positioning
Placing Patient on Mattress Before moving patient to Platinum 6000™, change control unit to Autofirm mode and ensure mattress cells are fully inflated . Use transfer device to move patient from stretcher or another bed . To ensure proper immersion and envelopment of patient, user should: 1 . -
Page 23: Advanced Settings
Advanced Settings Switching Units of Measurement The control unit’s default settings are Standard (English) units . Decimal points in Patient Height or Patient Weight indicate metric units . Pressure is always displayed in mmHg . NOTE: The English/Metric settings will be retained during a power cycle or power outage . Changing Between Standard/Metric Units Changing Between Standard/Metric Units also…... -
Page 24: Cleaning Instructions
Cleaning Instructions WARNING and CAUTION: It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting . DO NOT autoclave . NOTE: Improper cleaning, rinsing, or the incorrect use of cleaning agents can lead to premature fabric discoloration and breakdown of the fabric’s fluid and stain resistance and fabric strength . - Page 25 3 . All surfaces of the mattress are to be wiped using a coarse cloth dampened with the disinfectant, prepared as directed by the manufacturer’s recommendations, to remove organic material and visible soil . 4 . Allow the mattress shell to remain wet with disinfectant solution for the manufacturer’s recommended contact time . 5 .
-
Page 26: Preventive Maintenance
Check the items on this chart at the indicated intervals . If any of the items are loose, worn, bent, or distorted, immediately have them checked and/or repaired by an authorized Sizewise technician . Frequent maintenance and servicing will improve performance and extend mattress and control unit life . For long-term use, the following maintenance chart... -
Page 27: Storage And Disposal
Avoid storage of other equipment on top of the support surface . DO NOT expose the control unit to humidity greater than 93 percent . End-of-life Sizewise products must be disposed of properly according to local laws and regulations . If your product contains a battery and/or electronics components, disposal of those components must be completed separate from... -
Page 28: Troubleshooting
11 . Press the Microclimate Management button to reactivate Microclimate Management . 12 . Repeat steps 7 through 10 and your control until will have “learned” the new pneumatic system . NOTE: If troubleshooting process does not resolve the problem, please contact Sizewise for service . -
Page 29: Frequently Ordered Parts
To order replacement parts, please contact Sizewise Customer Service: 800-814-9389 . Repair or replacement of items not listed here may require sending the unit to Sizewise for servicing . NOTE: The parts listed are for Platinum 6000™ (Rev . 2) only . For earlier version of product, contact Sizewise Customer Service . Description Part No. -
Page 30: Limited Product Warranty
Sizewise Parts and Service at 800-814-9389 Monday through Friday 8am–5pm local time . • If the product or part should be returned to Sizewise, a return authorization number (RA#) must be obtained by Buyer from Sizewise . The RA# will be valid for 21 days from the date it is issued . - Page 31 . use of the product or part(s) in any manner for which it is not designed or in any manner inconsistent with the information set forth in the Sizewise user manual, including, without limitation use with other devices, accessories, cables or ancillary products including without limitation inappropriate replacement parts and/or repairs, for which it was not intended .
- Page 32 JURISDICTION, SIZEWISE LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. Exclusive Remedies. For any product described above that Sizewise determines to have failed to conform to this limited warranty, Sizewise will provide, at its option, one of the following: (1) repair;...
- Page 33 Lenexa, KS 66215 800-814-9389 sizewise.com Sizewise is a registered trademark of Sizewise Rentals, LLC. All specifications, equipment, and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models.
