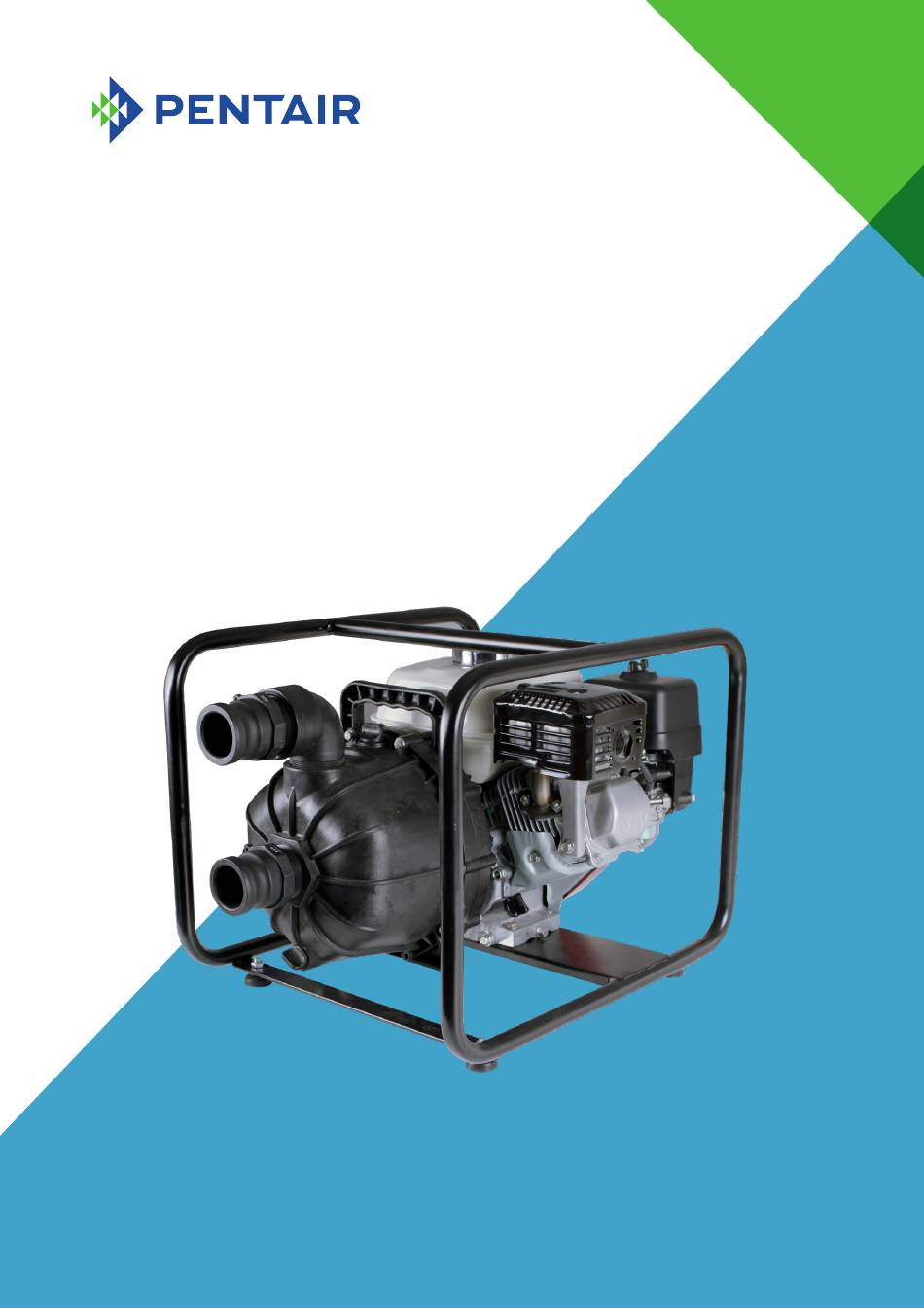

ENGINE DRIVE TRANSFER PUMP
OWNER'S MANUAL
IMPORTANT:
Should you the installer or owner be unfamiliar with the correct installation or operation of this
type of equipment you should contact the distributor/manufacturer for the correct advice before
proceeding with the installation or operation of this product.
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYPRO HTP750VR and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair HYPRO HTP750VR

Summary of Contents for Pentair HYPRO HTP750VR

  • Page 1 HYPRO ® HTP750VR ENGINE DRIVE TRANSFER PUMP OWNER’S MANUAL IMPORTANT: Should you the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page Technical information Application Installation 4 - 6 Operation 7 - 9 Troubleshooting Guide 10 - 11 Warranty 12 - 13 HTP750VR Owner’ s Manual...

  • Page 3: Technical Information

    TECHNICAL INFORMATION MODEL HTP750VR INLET CONNECTION 2” NPT FEMALE OUTLET CONNECTION 2” NPT FEMALE ENGINE SIZE Honda GX200 6.5HP IMPELLER NYLON PUMP CASE POLYPROPYLENE MECHANICAL SEAL VITON MAX. WATER TEMP. 50°C AMBIENT TEMP. RANGE 0 - 50°C MAX. FLOW RATE 750 L/MIN MAX.

  • Page 4: Installation

    INSTALLATION These instructions are a guide only. Users not familiar with pumping equipment should seek advice from people experienced in pump equipment and installation. Freezing conditions will damage the unit, because when water freezes it expands. Ensure that the pump is located so that it is not prone to freezing, or ensure that the product is disconnected and dried of water during cold conditions.
  • Page 5 1. Preparation for installation Inspect your pump for shipping damage. Report any damage to your Pentair Onga Dealer. Place the pump as close as possible to the water source to minimise suction lift, obtain best performance from the pump and aid in priming. A typical installation is shown in Figure 1 (page 6).
  • Page 6 INSTALLATION HTP750VR Owner’ s Manual...

  • Page 7: Operation

    OPERATION A self priming pump only needs to be manually primed at the first start up. Once primed, under normal conditions the pump will reprime automatically at each subsequent start up. If the pump is used in portable applications and the water has been drained from the pump case, repriming will be required before start up.
  • Page 8 OPERATION IMPORTANT Pump must not run dry. Priming the pump On self priming pumps, only the chamber needs to be filled with liquid. The pump must not be run unless the chamber is completely filled with liquid because there is a danger of damaging the mechanical seal, which depends on the liquid for its lubrication.
  • Page 9 OPERATION Stopping the pump Stop pump for a short time: 1. Run engine throttle all the way down (fully to the right). 2. Turn engine switch to OFF position. Stopping pump for storage: 1. Turn fuel cock to OFF position instead of turning the engine switch off. 2.

  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Use the table below to find which letter (A to P) best describes the pump problem and then refer to the table on page 11 for corresponding causes and corrective actions. PROBABLE CAUSE SYMPTOM ENGINE PUMP SYSTEM A B C D E F G H I J K L M N O P No water delivered.
  • Page 11 TROUBLESHOOTING GUIDE CAUSE CORRECTIVE ACTION Speed too low. Refer to engine section. Rotating and/or reciprocating parts Refer to engine section. drag. Maximum engine speed not to exceed Speed too high. engine manufacturer’ s recommendation. Loose or broken parts. Refer to engine section. Reprime, inspect suction system for air Not primed.

  • Page 12: Warranty

    2. How long the warranty is effective internationally This Pentair product is warranted for 24 months for all parts from the date of the first consumer purchase. Should any parts fail as a result of a defect in material or workmanship within the specified period, the part will be replaced free of charge. (This does not include travel charges, removal and reinstallation charges.)
  • Page 13 9. Proof of purchase Pentair reserves the right to reject any warranty if no proof of purchase is provided. A valid proof of purchase will be requested by the Service Agent prior to any works being carried out by the Pentair Service Agent.
  • Page 14 NOTES...
  • Page 15 PURCHASED FROM: PURCHASE DATE: SERIAL NO: MODEL NO:...
  • Page 16 1-21 MONASH DRIVE, DANDENONG SOUTH, VIC 3175 • 1300 137 344 • PENTAIR.COM All Pentair trademarks and logos are owned by Pentair or one of its global affiliates. Pentair HYPRO are trademarks and/or registered trademarks of Pentair and/or its affiliated companies in the United States and/ or other countries. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
