7.2.2

Ethernet 1 and Ethernet 2 Network Settings

•
Enable DHCP to automatically assign IP Settings or modify the IP Settings manually as needed,
via these fields: IP Address, Netmask, Gateway, and Domain Name Server1/2.
NOTE: If connected to a router, set the Gateway to the same IP Address as the router.
•
Click Save to record and activate the new IP Address.
•
Connect the FieldServer to the local network or router.
NOTE: If the webpage was open in a browser, the browser will need to be pointed to the new IP
Address of the FieldServer before the webpage will be accessible again.

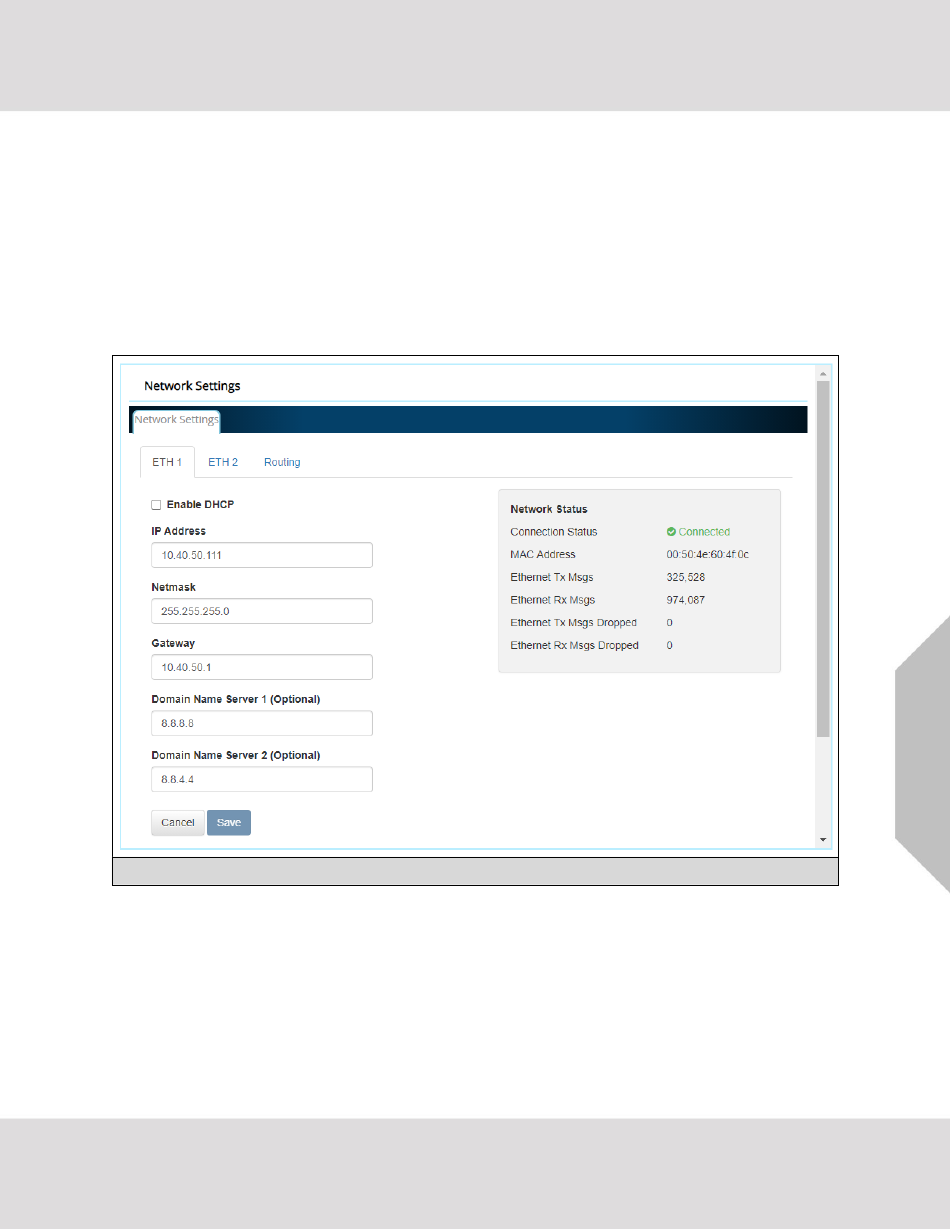

Figure 18: Ethernet Port Network Settings
