Figure 11: Warning Expanded Text; Figure 12: Fieldserver Login - MSA fieldserver ProtoNode FPC-N64 Startup Manual

•
Additional text will expand below the warning, click the underlined text to go to the IP Address. In
example this text is "Proceed to 10.40.50.94 (unsafe)".
the Figure 11
•
When the login screen appears, put in the Username (default is "admin") and the Password (found
on the label of the FieldServer).
NOTE: There is also a QR code in the top right corner of the FieldServer label that shows the
default unique password when scanned.
NOTE: A user has 5 attempts to login then there will be a 10-minute lockout. There is no timeout
on the FieldServer to enter a password.
NOTE: To create individual user logins, go to 10.4.

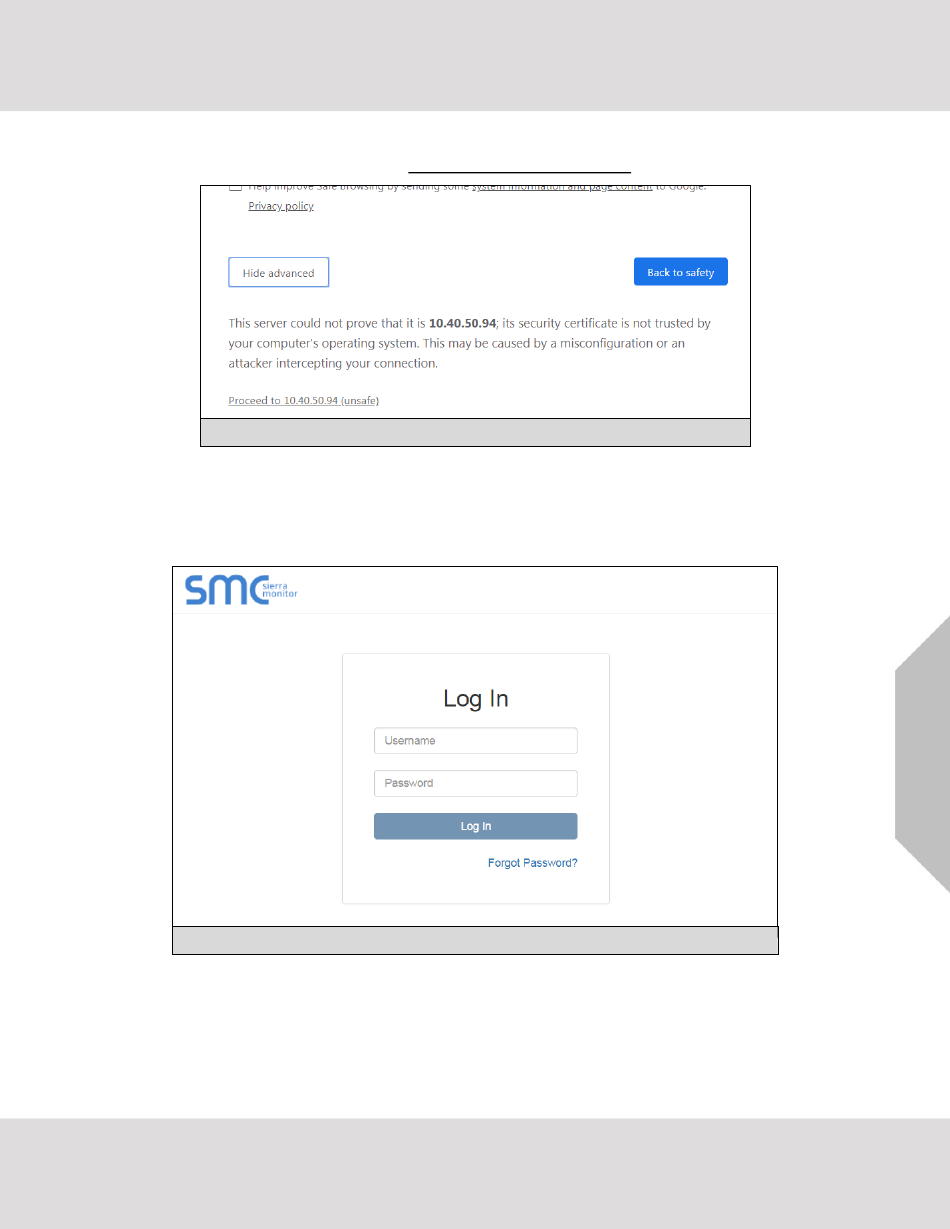

Figure 11: Warning Expanded Text

Figure 12: FieldServer Login

ProtoNode Start-up Guide
Setup Web Server Security
15
