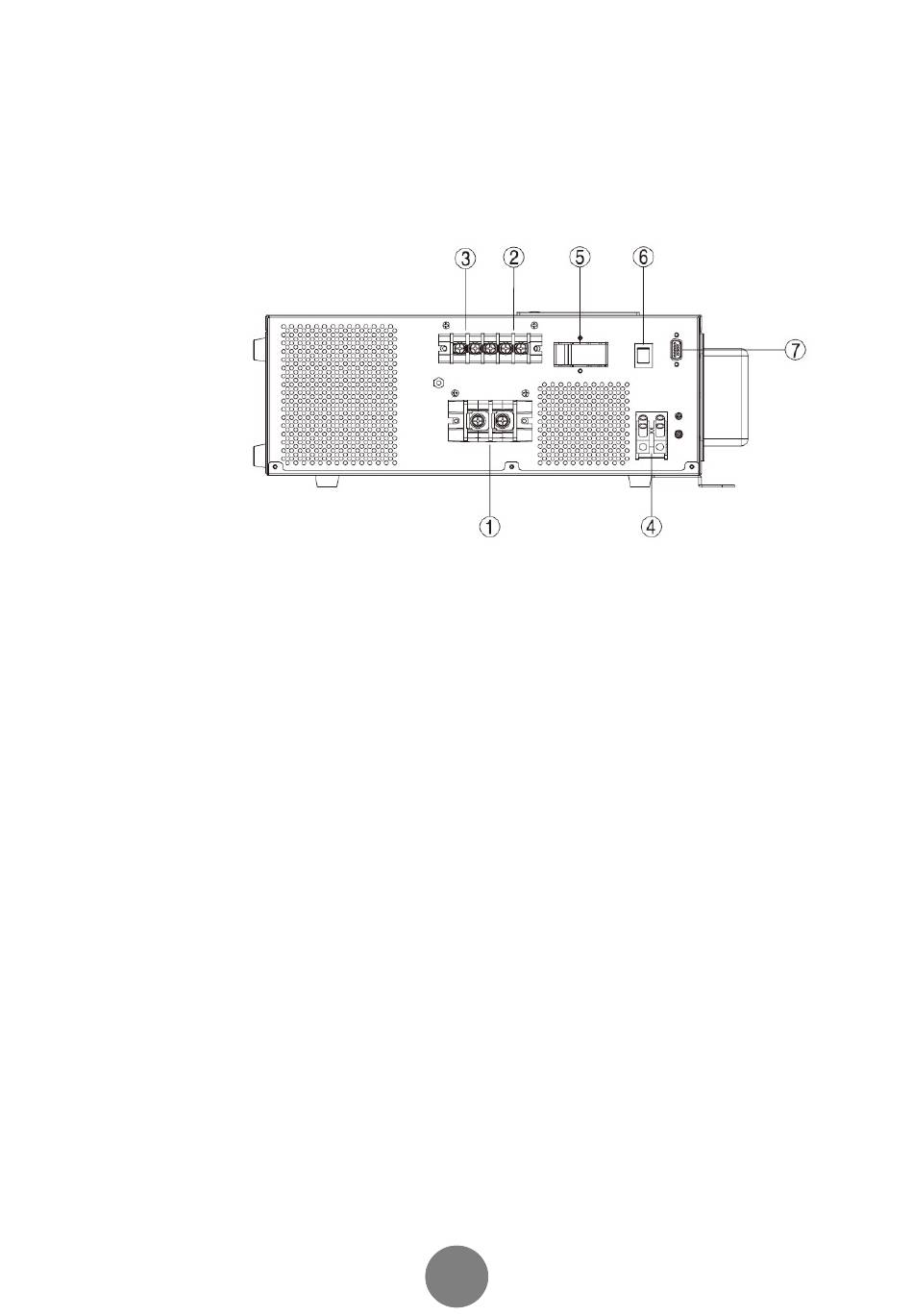

Rear Panel
1. DC input terminals
2. AC input terminals
3. AC output terminals
4. PV input terminals
5. AC input breaker
6. P
ower on/off button
7. RS-232 communication port
8 4
