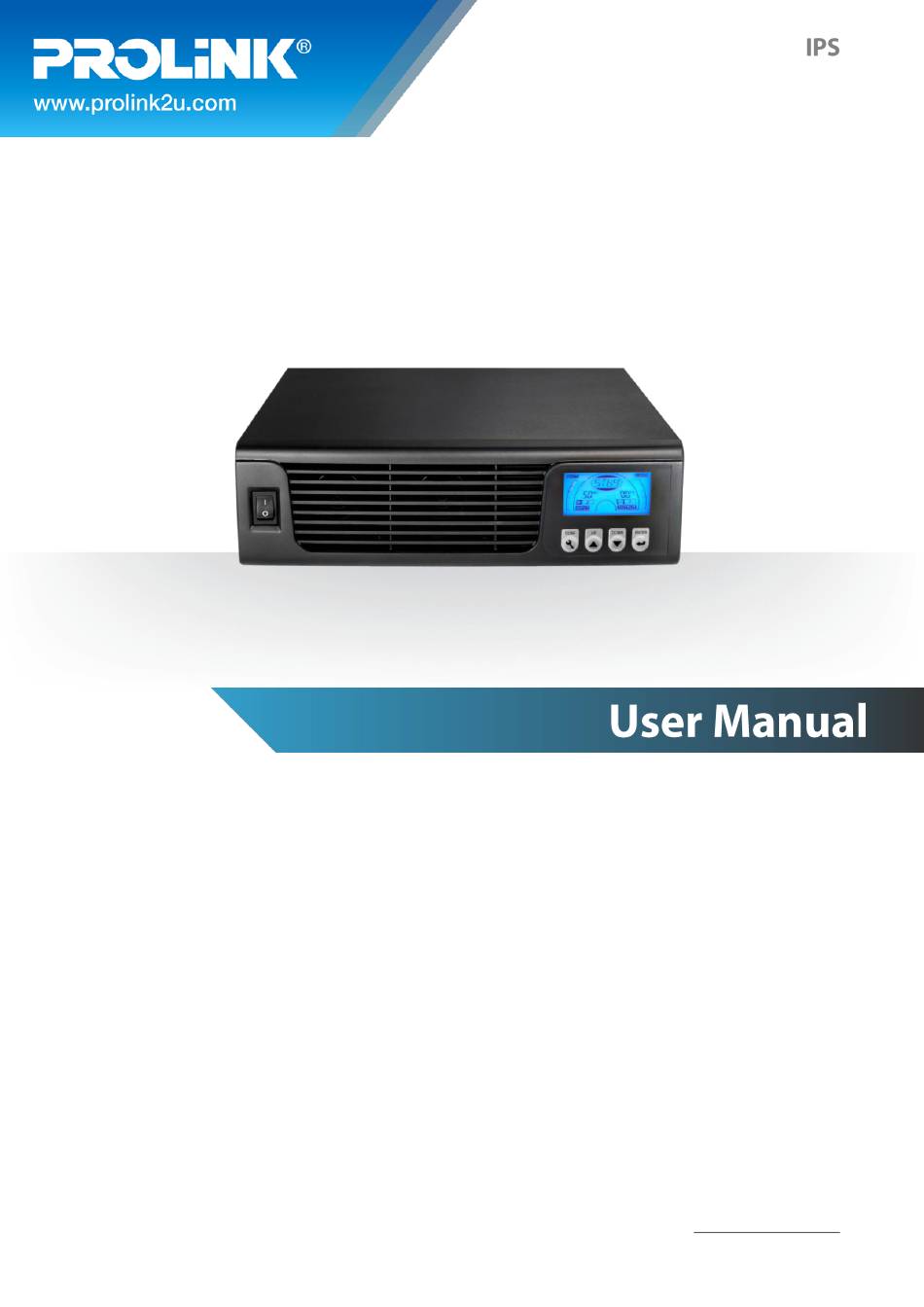

IPS3000P 3KVA INVERTER / CHARGER
Version 1.00
(English)
BEFORE GETTING STARTED
This document is designed to aid you to get started with the device. If you experience problems following these
guides or need further information pertaining to the device, please visit our website at www.prolink2u.com. All
specifications are subject to the manufacturer's configuration at the time of shipping and may change without prior notice,
written or otherwise.
Advertisement
Table of Contents
Related Manuals for PROLiNK IPS3000P
Summary of Contents for PROLiNK IPS3000P
- Page 1 IPS3000P 3KVA INVERTER / CHARGER Version 1.00 (English) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com. All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice,...
-
Page 2: Table Of Contents
CONTENTS ABOUT THIS MANUAL ............................1 Purpose................................1 Scope ................................1 IMPORTANT SAFETY INSTRUCTIONS ......................1 General Precautions ............................1 Personal Precautions............................2 INSTALLATION ..............................3 Unpacking and Inspection..........................3 Basic Configuration............................3 Batteries................................5 Battery Cable Size ............................5 DC Disconnect and Over-Current Protection.................... -
Page 3: About This Manual
ABOUT THIS MANUAL Purpose The purpose of this manual is to provide explanations and procedures for installing, operating and troubleshooting for the unit. This manual should be read carefully before installations and operations. Please retain this manual for future reference. Scope This document defines the functional requirements of the unit, intended for worldwide use in electronic processing equipment. -
Page 4: Personal Precautions
11. No AC or DC disconnects are provided as an integral part of this unit. Both AC and DC disconnects must be provided as part of the system installation. See INSTALLATION section of this manual. 12. Fuses (F40AL, 32VDC*6) are provided as the over current protection of the battery supply. 13. -
Page 5: Installation
Verify all of items list below are present. Please call customer service if any items are missing. The unit 1 user’s manual Basic Configuration The following illustrations show basic applications for IPS3000P 3KVA. They include the following configurations: Utility Backup. see figure 1 Renewable Energy Source And a Generator, see figure 2 Consult with your system design for other possible configurations depending on site or code requirements. - Page 6 IPS3000P Figure 2 Renewable Energy Source IPS3000P 3KVA Inverter can feeds almost all kinds of appliances from home to office environment, including motor characteristic appliances like tube light, fan, refrigerator and Air conditioner. Note: Appliances like Air conditioner needs at least 3 minutes to restart in case of a power shortage occurs in a way that the power turns off then back on again rapidly (time is required to balance the refrigerant gas in inside circuit);...
-
Page 7: Batteries
The battery must be wired to match the units DC input voltage specifications. Suggest battery capacity not smaller than 100AH. Inverter Unit Figure 3 IPS3000P batteries string wiring Battery Cable Size Below table 1 you can find information for recommended battery cable and terminal. -
Page 8: Battery Cable Connection
Before wiring the input and output of inverter, refer to table 2 for minimum recommended cable size and torque value Table 2 Recommended cable size and torque value for AC wire Model Number AC Input AC Output Torque value IPS3000P 12AWG 12 AWG 1.2~1.8 Nm... -
Page 9: Ac Connections
AC Connections Installation should be done by a qualified electrician. Consult local code for the proper wire sizes, connectors and conduit requirements. On the left of rear chassis is the AC hardwire cover. Two three-station terminal block is provided to make the AC connections. -
Page 10: Operation
OPERATION Front Panel and Configuration Switch Table 3 configuration button function Switch Function Description config Enter config mode, and turn page Move up to pre-select down Move down to pre-select enter Enter to confirm Table 4 configuration pages option Page Description Selectable option Input range... -
Page 11: Indicator & Alarm
Indicator & Alarm Charger mode battery indicator Battery capacity segment will lighting to comply with battery voltage Status CC/CV Floating Battery Any battery voltage >26V 25V~26V 24V~25V 21V~24V <21V voltage(+/-0.6V) Inverter mode battery indicator: Battery >26V 25V~26V 24V~25V 23V~24V 21.6V~23V 20V~21.6V <20V voltage(+/-0.6V) -
Page 12: Operating Indicators
Operating Indicators Standby Mode: Inverter Mode: Voltage and Frequency exchanged every 5 seconds Voltage and Frequency exchanged every 5 seconds Line Mode: Warning Mode: Voltage and Frequency exchanged every 5 seconds Red back light flash every 1 second “OVLD”: Overload Warning “BATT”: Battery Low Warning “FAN”: Fan Abnormal Warning Saver Mode:... -
Page 13: Setting Indicators
Setting Indicators... -
Page 14: Specifications
SPECIFICATIONS Table 5 Line Mode Specifications MODEL IPS3000P Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac±4%(NOR) Low Line Disconnect 90Vac±4%(GEN/WID) 180Vac±4% (NOR) 100Vac±4% (GEN/WID) Low Line Re-connect Note: 1.NOR setting can be used for general electrical appliance 2. - Page 15 Table 6 Invert Mode Specifications MODEL IPS3000P Pure Sine Wave Output Voltage Waveform Rated Output Power 3000VA Power Factor Nominal Output voltage 230Vac Minimum Peak Output Voltage at >200V Rated Power 50Hz / 60Hz ± 1Hz (follow first connect to grid) Output Frequency(Hz) ±10% Vrms...
- Page 16 Table 7 Charge Mode Specifications Nominal Input Voltage 230Vac 180V - 270Vac(NOR) Input Voltage Range 100V - 270Vac(GEN/WID) 280Vac±4% High Voltage Disconnect High Line Re-connect 270Vac±4% 170Vac(NOR) Low Voltage Disconnect 90Vac(GEN/WID) 180Vac±4% (NOR) Low Line Re-connect 100Vac±4% (GEN/WID) Refer to Charge Algorithm/ Battery Type Setting Nominal Output Voltage 10A @Vi/p<170Vac Nominal Charge Current...
- Page 17 Table 8 Approximate Back-up Times Load(VA) 100Ah 24VDC(min) 200AH 24VDC(min) 457.5 972.2 208.1 499.5 140.6 262.3 1200 178.1 1500 77.8 138.3 1800 57.6 113.2 2100 49.5 100.5 2400 41.4 87.9 2700 33.2 75.3 3000 28.4 62.6 Note: Back-up times depend on the quality of the battery, age of battery and type of battery. Specifications of batteries vary from one manufacturer to another.
- Page 18 Table 10 Fault code/ Audible alarm Restart Fault Protect Active Warning Fault Condition Code Function Mode (O/P=ON) (O/P=OFF) Operate Condition Low DC Voltage Inverter DC voltage<Low DC Alarm 1beep/2s Alarm Low DC DC Voltage<Low DC Shut- Beep Mains is Voltage Inverter Auto down...
-
Page 19: Trouble Shooting
TROUBLE SHOOTING Problem Possible Causes Remedy 1. Battery Weak 1. Re-charge battery 2. Battery defective (can't be 2. Battery replacement charged) No LCD display 3. Power switch is not pressed 3. Press and hold power switch 4. Battery polarity reversed, can’t 4. - Page 20 Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents...
