PROLiNK IPS1200A Quick Manual

Quick Guide

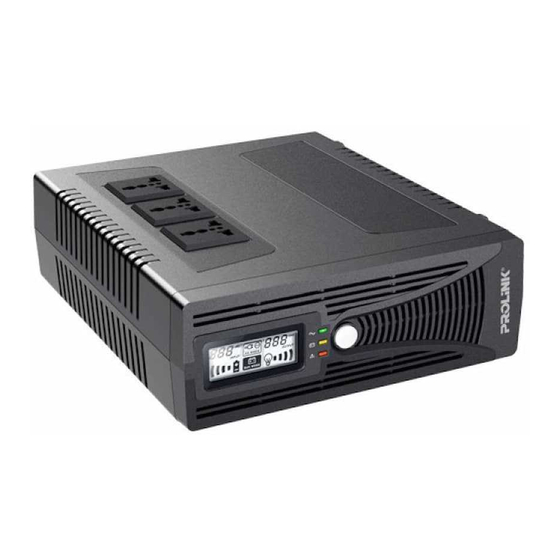

1.2KVA/ 2.4KVA Inverter
1. Introduction
Thank you for purchasing the solar inverter. This simple solar inverter is designed to power
your home appliances or precious 3C electronics. It also can handle motor-type loads with high
surge power such as vacuums, small freezers, or drills. With built-in solar charger, it can
convert solar power to battery power and provide continuous power to connected equipment
during night time.
2. Important Safety Warning (SAVE THESE INSTRUCTIONS)
Before using the inverter, please read all instructions and cautionary markings
on the unit, this manual and the batteries.
General Precaution-
Install the UPS in a protected area that is free of excessive dust and has adequate air flow.
Conventions used:
Please place the UPS away from other units at least 20 cm to avoid interference. Do NOT WARNING! Warnings identify conditions or practices that could result in personal injury;
CAUTION! Caution identify conditions or practices that could result in damaged to the
operate the UPS where the temperature and humidity is outside the specific limits. (Please
unit or other equipment connected.
check the specs for the limitations.)
CAUTION! The unit is designed for indoor use. Do not expose this unit to rain, snow or
liquids of any type.
CAUTION! To reduce risk of injury, only use qualified batteries from qualified distributors or
manufacturers. Any unqualified batteries may cause damage and injury. Do NOT use old or
overdue batteries. Please check the battery type and date code before installation to avoid
damage and injury.
WARNING! It's very important for system safety and efficient operation to use appropriate
external battery cable. To reduce risk of injury, external battery cables should be UL certified
and rated for 75° C or higher. And do not use copper cables less than 10AWG. Below is the
external battery cable reference according to system requirements.
Table 1 Minimum Recommended Battery Cable Size versus Length
V. 1.1
Model
1.2KVA
2.4KVA
Typical Amp. 1 meter (one-way)
75 A AWG 6(or 2*AWG10)
75 A AWG 6(or 2*AWG10)
Dia-mm
4.1151
4.1151
