The parameters can be accessed immediately unless a password has been created via par. 0-60
w/o Password Personal Menu Password
, par. 0-65
Quick Setup is used to set up the frequency converter using only the most essential parameters.
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
Select the wanted data value and press [OK]
Navigation keys
[Back]
for stepping backwards
▲ ▼
Arrow [ ] [ ]
keys are used for manoeuvring between parameter groups, parameters
and within parameters
[OK]
is used for choosing a parameter marked by the cursor and for enabling
the change of a parameter.
Operation keys
Keys for local control are found at the bottom of the control panel.
[Hand on]
enables control of the frequency converter via the . [Hand on] also starts the motor and it is now possible to enter the motor speed data by means of
Enabled
the arrow keys. The key can be
External stop signals activated by means of control signals or a serial bus will override a 'start' command via the .
The following control signals will still be active when [Hand on] is activated:
• [Hand on] - [Off] - [Auto on]
• Reset
• Coasting stop inverse
• Reversing
• Set-up select lsb - Set-up select msb
• Stop command from serial communication
• Quick stop
• DC brake
[Off]
stops the connected motor. The key can be
If no external stop function is selected and the [Off] key is inactive the motor can be stopped by disconnecting the mains supply.
[Auto on]
enables the frequency converter to be controlled via the control terminals and/or serial communication. When a start signal is applied on the control
terminals and/or the bus, the frequency converter will start. The key can be
Access to Personal Menu w/o Password
or par. 0-66
Disabled [Hand on] Key on LCP
[1] or [0] via par. 0-40
Enabled Disabled
[1] or [0] via par. 0-41
Enabled
MG.20.U1.22
7 How to Operate the Frequency Converter
Main Menu Password
, par. 0-61
.
P 2-03
S etup 1
S ta tus Q uick M ain
M enu S etup M enu

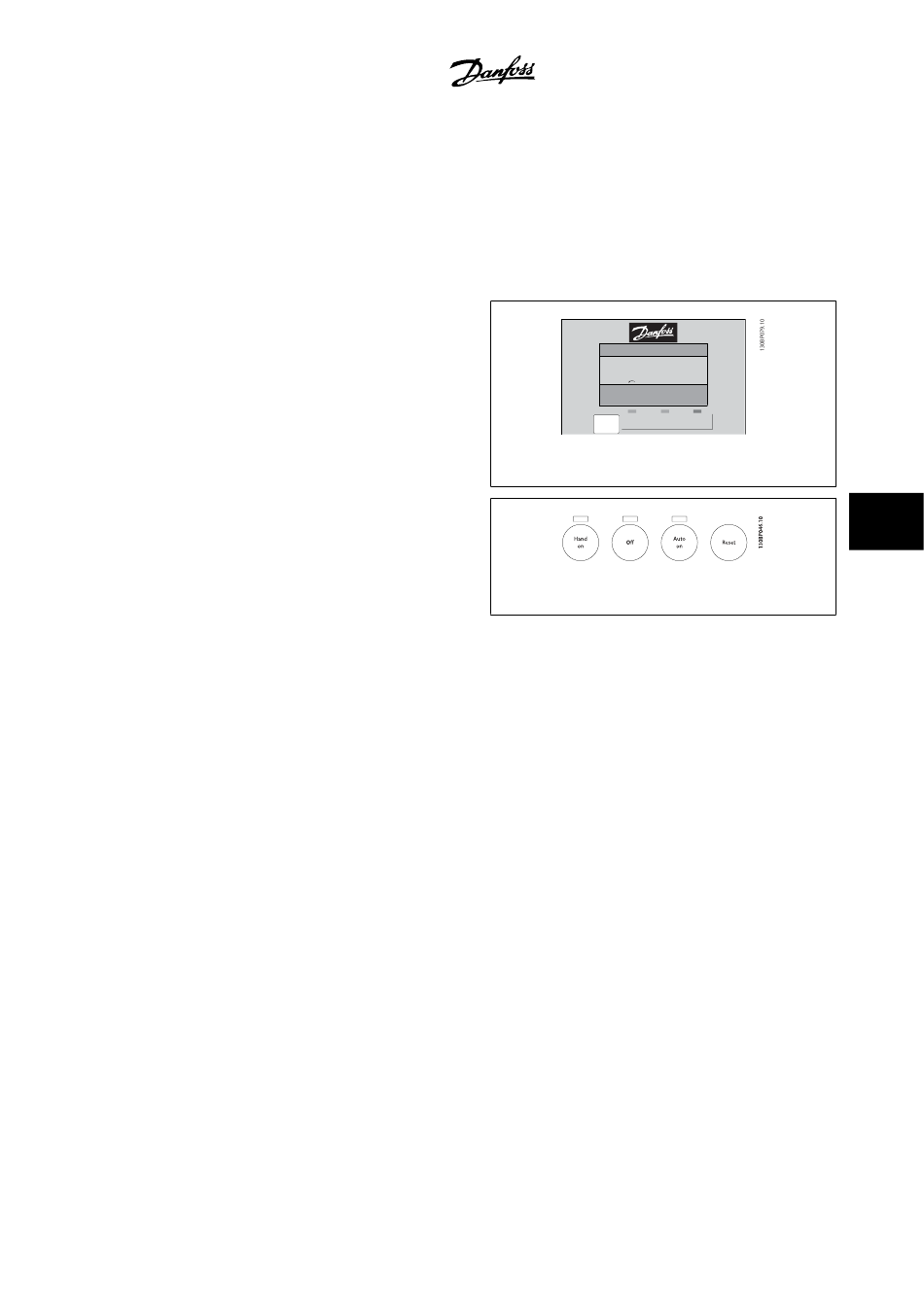

Illustration 7.4: Display example
Illustration 7.5: Operation keys of the numerical LCP (NLCP)
.
[Off] Key on LCP
.
[1] or Disabled [0] via par. 0-42 [Auto on] Key on LCP
Access to Main Menu
