5.1.11 Motor Connection for A2 and A3
Follow these drawings step by step for connecting the motor to the frequency converter.
5

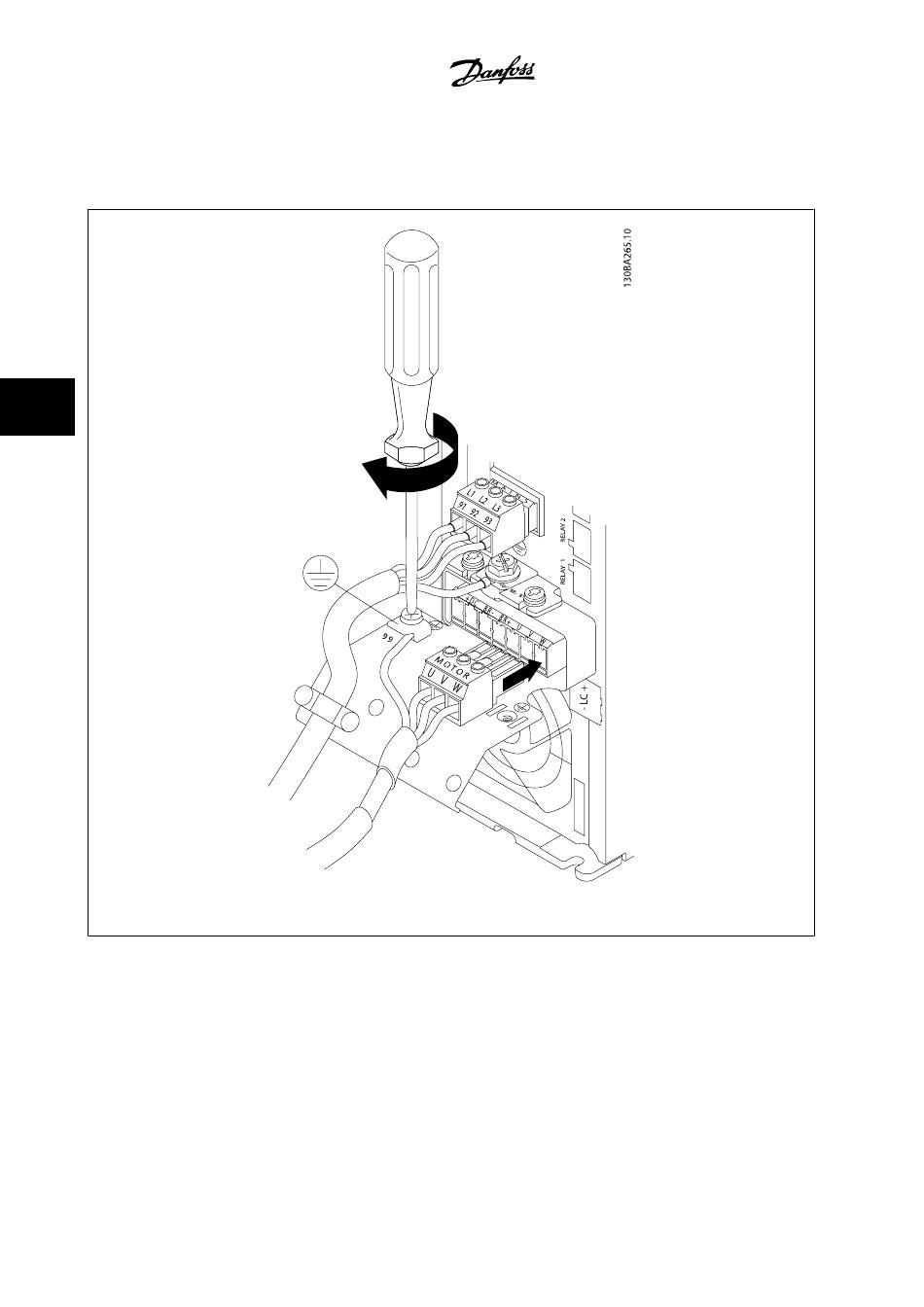

Illustration 5.16: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
34
MG.20.U1.22
