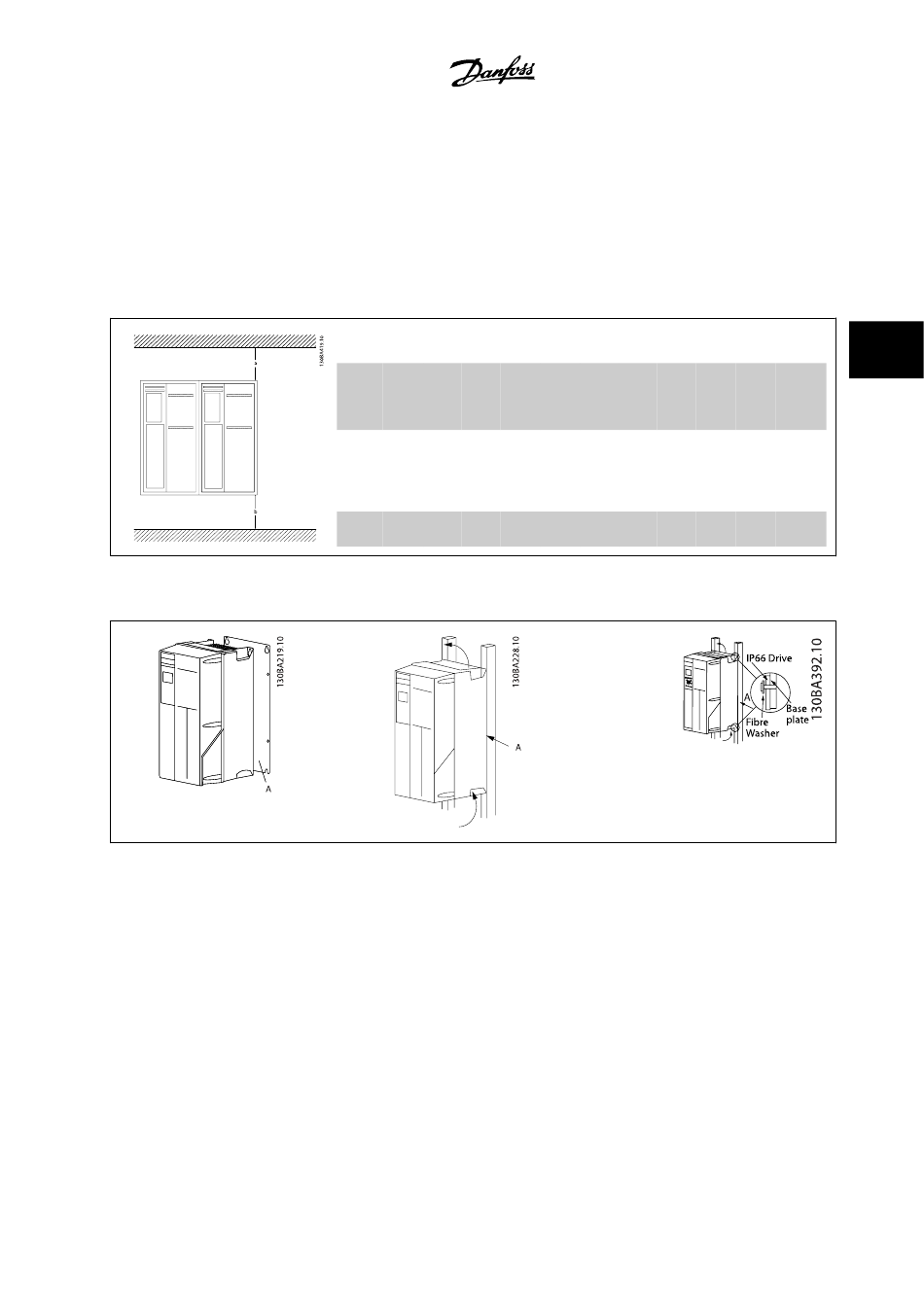

4.2.3 Mechanical Mounting
All IP20 enclosure sizes as well as IP21/ IP55 enclosure sizes except A2 and A3 allow side-by-side installation.
If the IP 21 Enclosure kit (130B1122 or 130B1123) is used on enclosure A2 or A3, there must be a clearance between the drives of min. 50 mm.
For optimal cooling conditions allow a free air passage above and below the frequency converter. See table below.
1. Drill holes in accordance with the measurements given.
2. You must provide screws suitable for the surface on which you want to mount the frequency converter. Re-tighten all four screws.
Table 4.2: Mounting frame sizes A5, B1, B2, B3, B4, C1, C2, C3 and C4 on a non-solid back wall, the drive must be provided with a back plate A due
to insufficient cooling air over the heat sink.
With heavier drives (B4, C3, C4) use a lift. First wall-mount the 2 lower bolts - then lift the drive onto the lower bolts - finally fasten the drive against the
wall with the 2 top bolts.
Air passage for different enclosures
Enclo-
A2 A3 A5 B1
sure:
a (mm): 100 100 100 200
b (mm): 100 100 100 200
MG.20.U1.22
4 Mechanical Installation
B2 B3 B4 C1 C2
200 200 200 200 225
200 200 200 200 225
4
C3 C4
200 225
200 225
19
