Automation VT Drive FC322
Instruction Manual
6 Commissioning and Application Examples
6.1 Quick Setup
6.1.1 Quick Menu Mode
The GLCP provides access to all parameters listed under the Quick Menus. To set parameters using the [Quick Menu] button:
Pressing [Quick Menu] the list indicates the different areas contained in the Quick menu.
Efficient parameter set-up for water applications
The parameters can easily be set up for the vast majority of the water and wastewater applications only by using the [Quick Menu].
The optimum way to set parameters through the [Quick Menu] is by following the below steps:
1. Press [Quick Setup] for selecting basic motor settings, ramp times, etc.
2. Press [Function Setups] for setting up the required functionality of the frequency converter - if not already covered by the settings in [Quick
Setup].
General Settings
3. Choose between
It is recommended to do the set-up in the order listed.

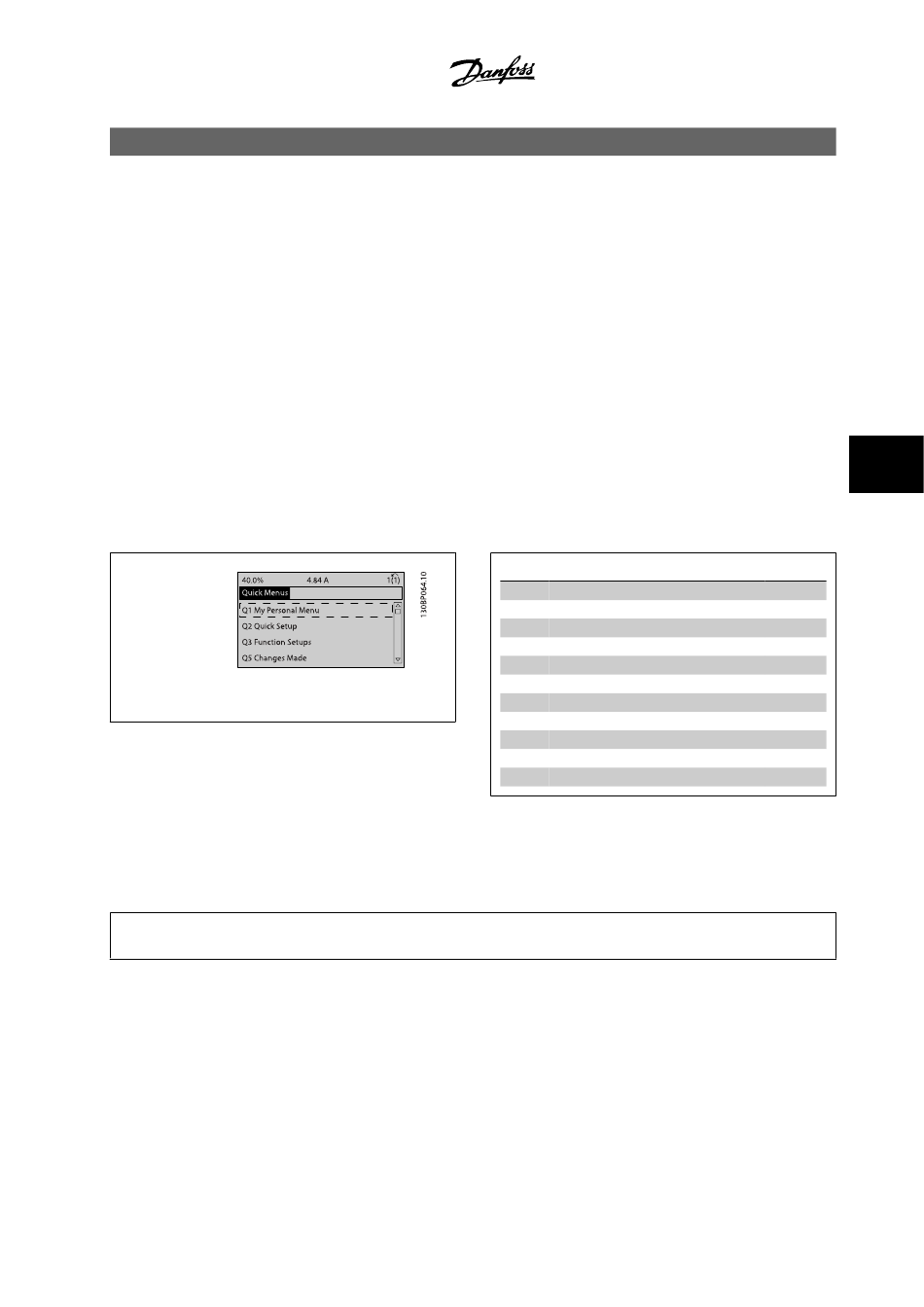

Illustration 6.1: Quick Menu view.
If No Operation is selected in terminal 27 no connection to +24 V on terminal 27 is necessary to enable start.
Coast Inverse
If (factory default value) is selected in Terminal 27, a connection to +24V is necessary to enable start.
NB!
For detailed parameter descriptions, please see the following section on
Open Loop Settings Closed Loop Settings.
, and
Commonly Used Parameters - Explanations
MG.20.U1.22
6 Commissioning and Application Examples
Par. Designation
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
3-41 Ramp 1 Ramp up Time
3-42 Ramp 1 Ramp down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
1-29 Automatic Motor Adaptation (AMA)
Table 6.1: Quick Setup parameters. Please see section
Parameters - Explanations
.
6
[Units]
[kW]
[V]
[Hz]
[A]
[RPM]
[s]
[s]
[RPM]
[RPM]
Commonly Used
