Danfoss FC322 Series Instruction Manual page 100

8 How to Programme the Frequency Converter

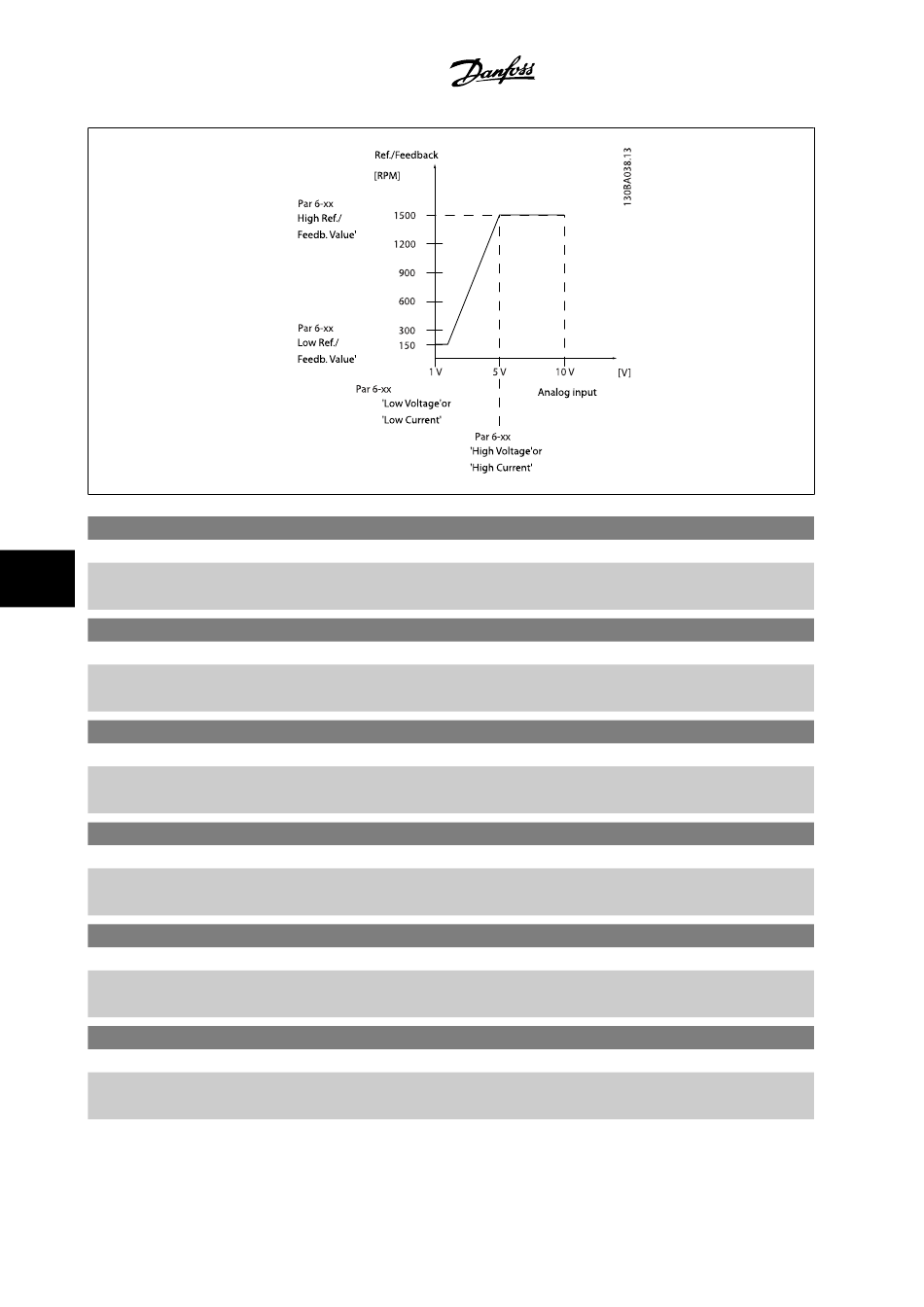

6-10 Terminal 53 Low Voltage
Range:
8
0.07 V* [Application dependant]
6-11 Terminal 53 High Voltage
Range:
10.00 V* [Application dependant]
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
0.000* [-999999.999 - 999999.999 ]
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Application [-999999.999 - 999999.999 ]
dependent*
6-20 Terminal 54 Low Voltage
Range:
0.07 V* [Application dependant]
6-21 Terminal 54 High Voltage
Range:
10.00 V* [Application dependant]
100
Function:
Enter the low voltage value. This analog input scaling value should correspond to the low reference/
feedback value set in par. 6-14 Terminal 53 Low Ref./Feedb. Value
Function:
Enter the high voltage value. This analog input scaling value should correspond to the high refer-
ence/feedback value set in par. 6-15
Function:
Enter the analog input scaling value that corresponds to the low voltage/low current set in
Terminal 53 Low Voltage
par. 6-10 and par. 6-12
Function:
Enter the analog input scaling value that corresponds to the high voltage/high current value set in
Terminal 53 High Voltage
par. 6-11 and par. 6-13
Function:
Enter the low voltage value. This analog input scaling value should correspond to the low reference/
Terminal 54 Low Ref./Feedb. Value
feedback value, set in par. 6-24
Function:
Enter the high voltage value. This analog input scaling value should correspond to the high refer-
ence/feedback value set in par. 6-25
MG.20.U1.22
Automation VT Drive FC322
.
Terminal 53 High Ref./Feedb. Value
.
Terminal 53 Low Current
Terminal 53 High Current
.
Terminal 54 High Ref./Feedb. Value .
Instruction Manual
.
.
