Automation VT Drive FC322
Instruction Manual

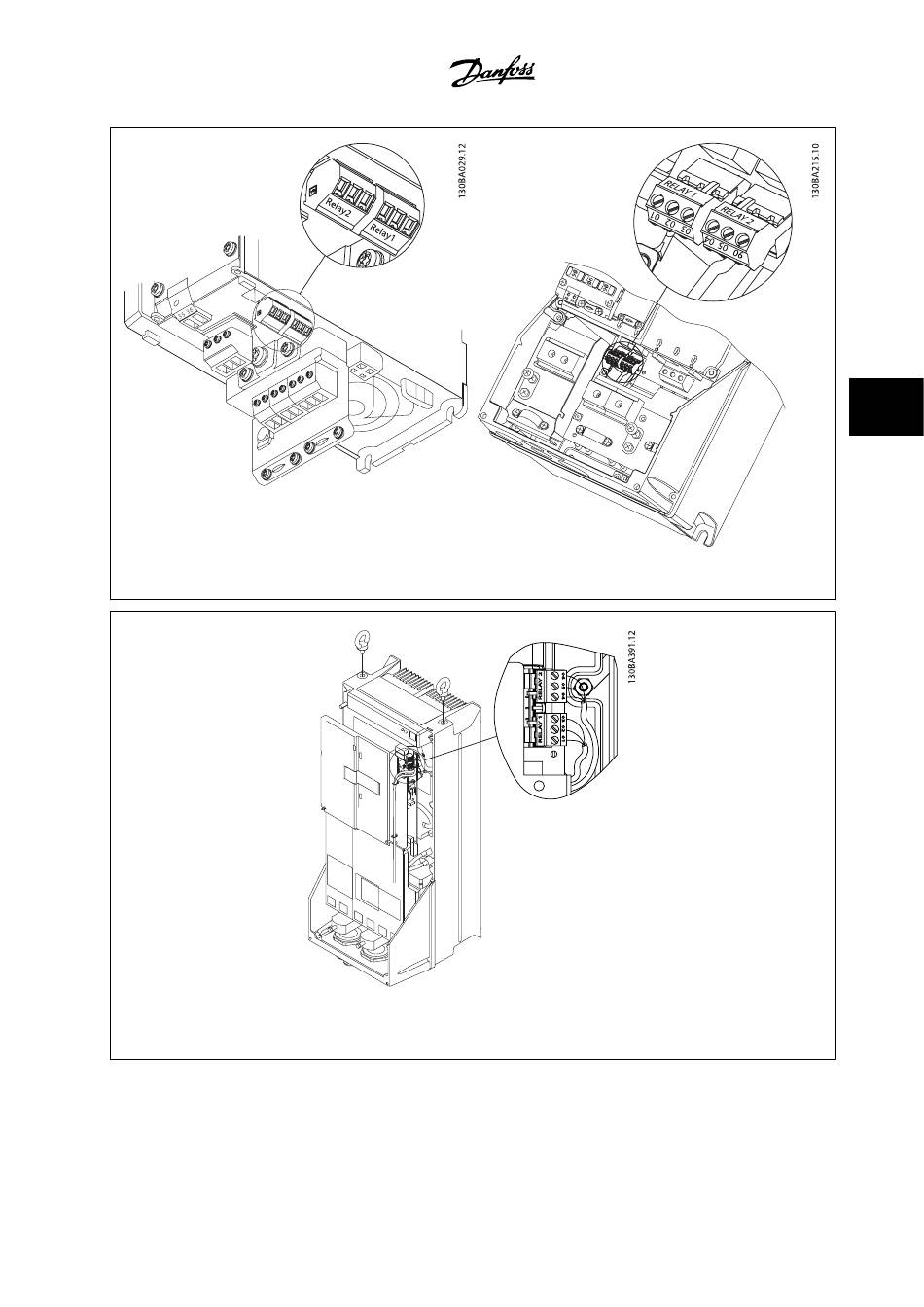

Terminals for relay connection
(A2 and A3 enclosures).
Illustration 5.33: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the Accessory Bag) fitted.
Terminals for relay connection
(A5, B1 and B2 enclosures).
MG.20.U1.22
5 Electrical Installation
5
43
