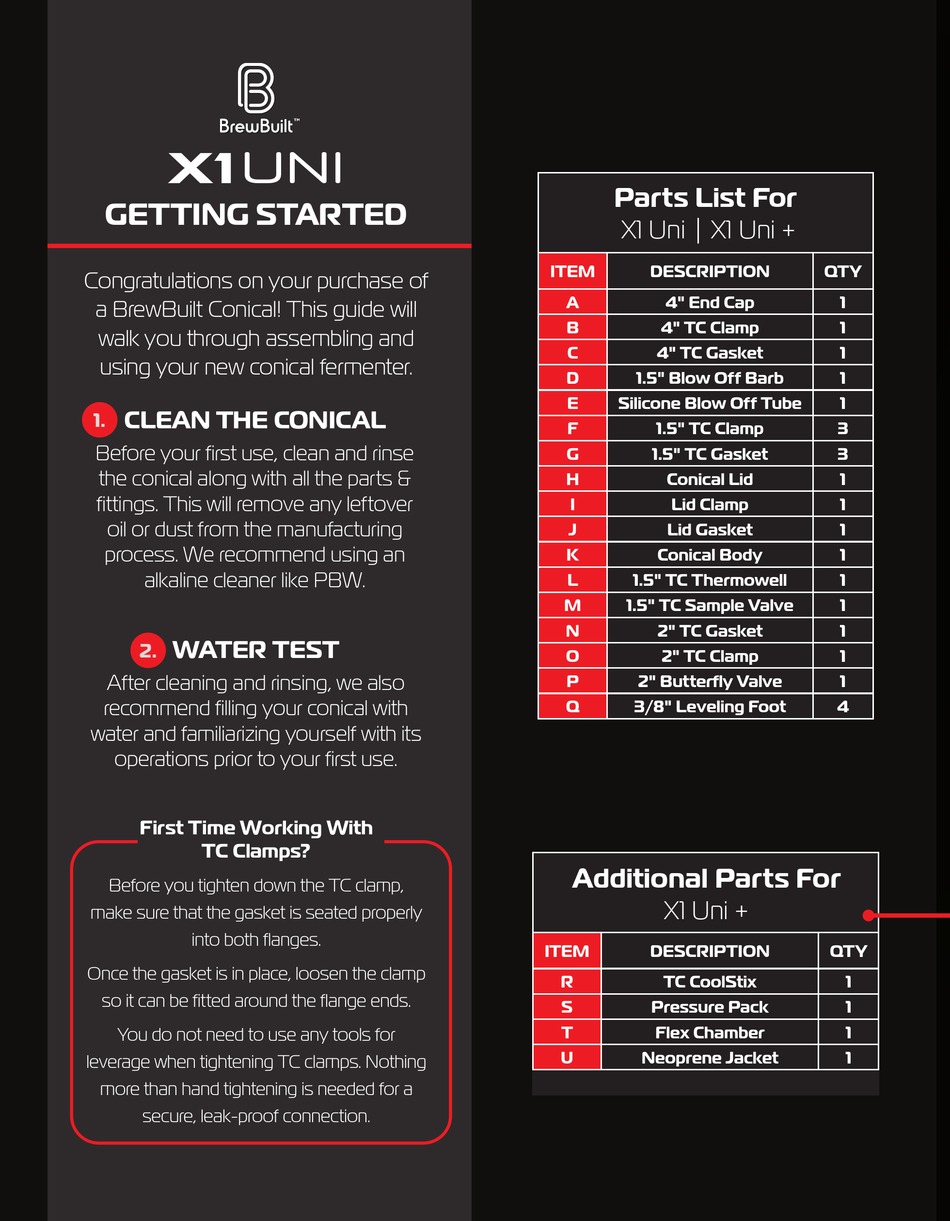

Getting Started; Water Test - BrewBuilt X1 UNI Assembly And Instruction Manual

X1 UNI

GETTING STARTED

Congratulations on your purchase of
a BrewBuilt Conical! This guide will
walk you through assembling and
using your new conical fermenter.
CLEAN THE CONICAL
1.
Before your first use, clean and rinse
the conical along with all the parts &
fittings. This will remove any leftover
oil or dust from the manufacturing
process. We recommend using an
alkaline cleaner like PBW.

WATER TEST

2.
After cleaning and rinsing, we also
recommend filling your conical with
water and familiarizing yourself with its
operations prior to your first use.
First Time Working With
TC Clamps?
Before you tighten down the TC clamp,
make sure that the gasket is seated properly
into both flanges.
Once the gasket is in place, loosen the clamp
so it can be fitted around the flange ends.
You do not need to use any tools for
leverage when tightening TC clamps. Nothing
more than hand tightening is needed for a
secure, leak-proof connection.
Parts List For
X1 UniX1 Uni +
ITEM DESCRIPTION
A 4" End Cap
B 4" TC Clamp
C 4" TC Gasket
D 1.5" Blow Off Barb
E Silicone Blow Off Tube
F 1.5" TC Clamp
G 1.5" TC Gasket
H Conical Lid
I Lid Clamp
J Lid Gasket
K Conical Body
L 1.5" TC Thermowell
M 1.5" TC Sample Valve
N 2" TC Gasket
O 2" TC Clamp
P 2" Butterfly Valve
Q 3/8" Leveling Foot
Additional Parts For
X1 Uni +
ITEM DESCRIPTION
R TC CoolStix
S Pressure Pack
T Flex Chamber
U Neoprene Jacket
QTY
1
1
1
1
1
3
3
1
1
1
1
1
1
1
1
1
4
QTY
1
1
1
1
