PB45 Manual
Original instructions
Apr 2019

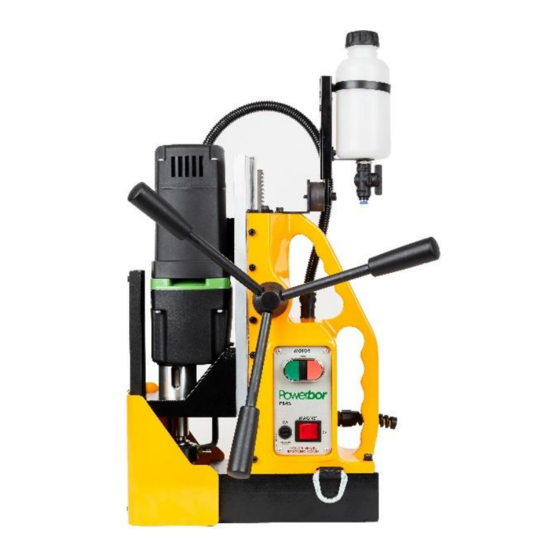

POWERBOR – PB45
Magnetic drilling machine
Model Number
18H45/110, 18H45/230
This machine is CE approved.
Burgess Road
Sheffield, South Yorkshire
United Kingdom
S9 3WD
Tel: +44 (0) 114 2212 510
Fax: +44 (0) 114 2212 563
Email: info@Powerbor.co.uk
Website:
www.Powerbor.co.uk
1
Advertisement
Table of Contents
Related Manuals for POWERBOR PB45
Summary of Contents for POWERBOR PB45
- Page 1 PB45 Manual Original instructions Apr 2019 POWERBOR – PB45 Magnetic drilling machine Model Number 18H45/110, 18H45/230 This machine is CE approved. Burgess Road Sheffield, South Yorkshire United Kingdom S9 3WD Tel: +44 (0) 114 2212 510 Fax: +44 (0) 114 2212 563 Email: info@Powerbor.co.uk...
-
Page 2: Contents Of The Manual
PB45 Manual Original instructions Apr 2019 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Mounting of cutter Remedies for hole making problems Wiring diagram Machine Layout... -
Page 3: Intended Use
PB45 Manual Original instructions Apr 2019 1) INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 4: Information Plate Symbols
Remove from the mains prior to any maintenance. • Follow instructions for lubricating and changing accessories. • Inspect tool cords periodically and if damaged have them repaired by an authorized Powerbor service facility. • Inspect extension cords periodically and replace if damaged. •... - Page 5 PB45 Manual Original instructions Apr 2019 4) SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 50mm dia. x 50mm deep Arbor bore = 19.05mm (3/4") dia. Motor Unit Voltages 110V 50-60Hz 230V 50-60Hz Normal full load 10.5 A 1150 W 5.3 A...
-
Page 6: Operational Safety Procedures
• When not in use ALWAYS store the machine in a safe and secure location. • ALWAYS ensure that approved POWERBOR™ agents conduct repairs. 6) OPERATING INSTRUCTIONS • Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter. -
Page 7: Extension Cable Selection
PB45 Manual Original instructions Apr 2019 7) EXTENSION CABLE SELECTION The machines are factory fitted with a 2 metre length of cable having three conductors 1.5mm² LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. -
Page 8: Remedies For Hole Making Problems
PB45 Manual Original instructions Apr 2019 10) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient Attach an additional piece of metal under the won’t hold holding. magnet, or mechanically clamp magnetic base to effectively work-piece. -
Page 9: Wiring Diagram
PB45 Manual Original instructions Apr 2019 11) WIRING DIAGRAM... -
Page 10: Machine Layout
PB45 Manual Original instructions Apr 2019 12) MACHINE LAYOUT... -
Page 11: Exploded View Of Machine
PB45 Manual Original instructions Apr 2019 13) EXPLODED VIEW OF MACHINE... - Page 12 M5 X 25 CONE POINT GRUB SCREW W18XC219 M5 STEEL NUT W18XC347 SHIM STRIP SUPPORT W18XC525 PANEL SCREWS M3 X 10 18Y3013/CS PB45 110V CONTROL PANEL ASSEMBLY 18Y3014/CS PB45 230V CONTROL PANEL ASSEMBLY W18XC201 M6 X 20 CAP HEAD SCREW W18XC1104 PB45 DOVETAIL SLIDE W18XC201...
- Page 13 PB45 Manual Original instructions Apr 2019 W18XC227 M6 STEEL WASHER W18XC238 M4 BRASS NUT W18XC240 M4X20 CSK SLOT MC SCREW W18XC430 CABLE GLAND, SPIRAL TAIL, M16 W18Y181 LEAD & PLUG ASSEMBLY 110V W18XC503 MAINS CABLE UK 230V PLUG W18XC503/EU MAINS CABLE EURO 230V PLUG...
-
Page 14: Motor Break Down
PB45 Manual Original instructions Apr 2019 14) MOTOR BREAK DOWN Item Part No. Description Item Part No. Description 1 18ZF01 21 18ZF21 DEEP GROOVE BALL BEARING 6203-2RS 2 18ZF02 SCREW HC4.8 X 45 22 18ZF22 SELF TAPPING SCREW 3 18ZF03... -
Page 15: Control Panel And Parts List
PB45 Manual Original instructions Apr 2019 15)CONTROL PANEL AND PARTS LIST 1 + 3 W18XC511 FUSE HOLDER W18XC512 2A FUSE 4 + 8 W18XC509/E ON/OFF SWITCH W18XC569 M4 X 8 ALUMINIUM RIVET W18XC510 MAGNET SWITCH W18XC1024 FRONT PANEL W18XC326 RELAY BRACKET... -
Page 16: Maintenance
Original instructions Apr 2019 17) MAINTENANCE In order to ‘get the best life’ out of your Powerbor machine always keep it in good working order. A number of items must always be checked on Powerbor machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. -
Page 17: Troubleshooting
PB45 Manual Original instructions Apr 2019 18) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective magnet switch - Defective control unit - Defective power supply... - Page 18 PB45 Manual Original instructions Apr 2019 19) CUTTER SELECTION Material Material Hardness Cutter Mild and free cutting steels <700N/mm² Mild and free cutting steels <850N/mm² Steel angle and joists <700N/mm² Steel angle and joists <850N/mm² Plate and sheet steel <700N/mm²...
- Page 19 Powerbor™ or its designated distributor within a period of (30) days from the purchase date. Failure to do so will void the warranty. If the stated is adhered to Powerbor™ will repair or replace (at its option) without charge any faulty items returned.
