POWERBOR - PB320 DRILL
WARNING !
When using electric power tools basic safety
precautions should always be used to
reduce the risk of fire, electric shock and
personal injury.
Read all of these instructions before
attempting to operate this product and save
these instructions
G & J Hall Tools, Inc. 830 Hanley Industrial Court, Brentwood, MO 63144 USA
Phone : (314) 968-5040 Fax: (314) 968-5543
OWNERS MANUAL
e-mail: sales@gjhalltools.com
PB320 US - W18XC1054/US - Revised 030113

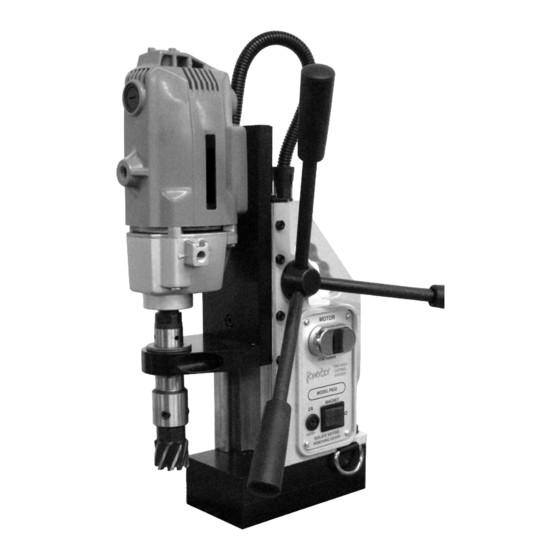

Machine shown
PB320 - without the
safety guard for clarity.
Advertisement
Table of Contents
Related Manuals for POWERBOR PB320
Summary of Contents for POWERBOR PB320

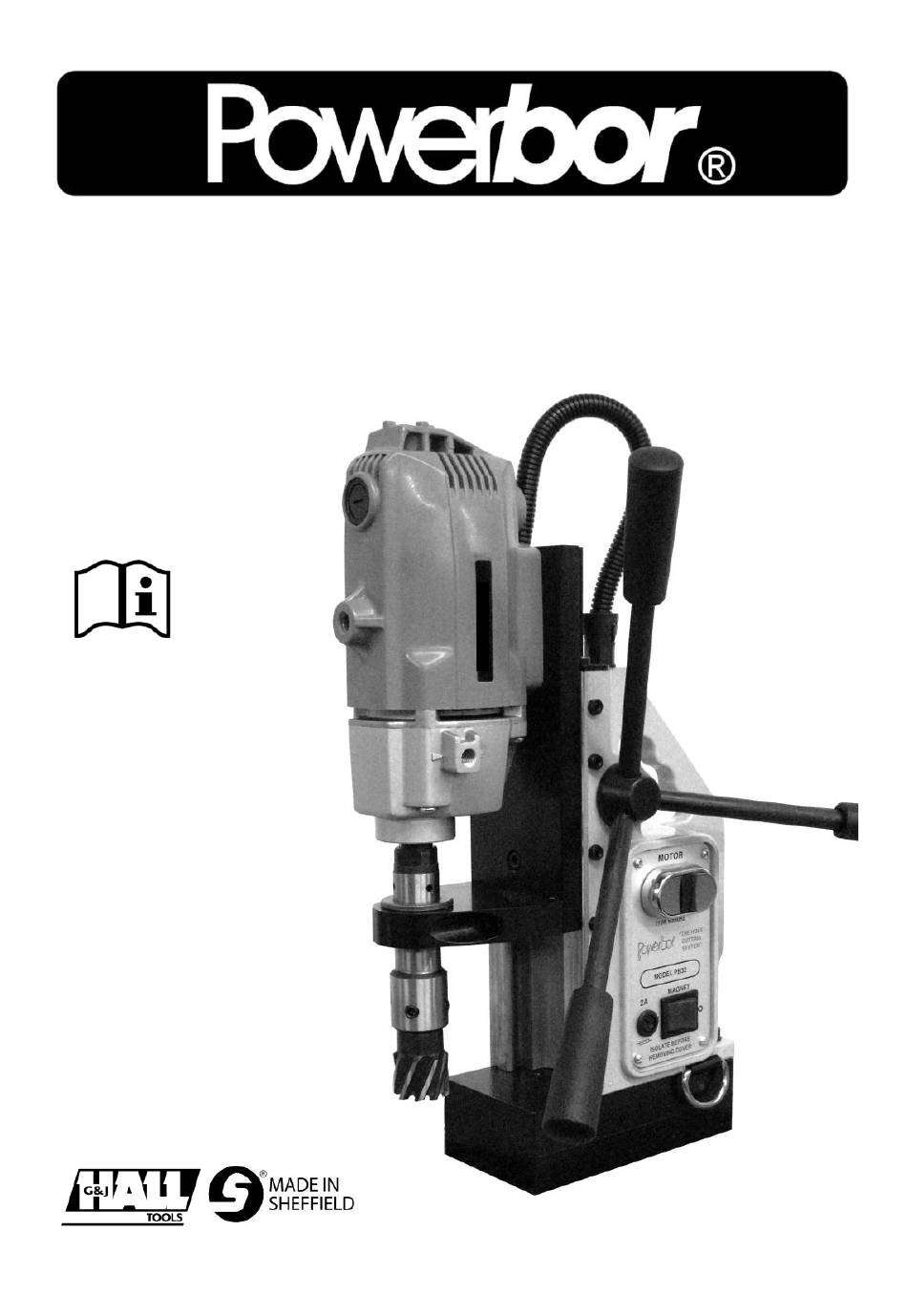

- Page 1 Machine shown PB320 - without the safety guard for clarity. G & J Hall Tools, Inc. 830 Hanley Industrial Court, Brentwood, MO 63144 USA Phone : (314) 968-5040 Fax: (314) 968-5543 e-mail: sales@gjhalltools.com PB320 US - W18XC1054/US - Revised 030113...
-
Page 2: Table Of Contents
Using the drill with annular cutters 7 - Lifting handles/transportation. Maintenance and servicing 1 - Regular cleaning, maintenance and lubrication. 2 - Servicing by manufacturer. 3 - Special Tools 4 - Blockages of chips or work piece fragments. PB320 US - W18XC1054/US - Revised 030113... -
Page 3: Machine Specification
These factors may increase the vibration experienced by the operator, each individual application of the tool should be assessed for the effect of these application variable factors, before exposure. PB320 US - W18XC1054/US - Revised 030113... -
Page 4: Explanation Of Symbols Used
Read and understand the instruction manual - before operating this tool. Caution ! / Attention ! Instruction Manual WEEE - Waste of Electrical and Electronic Equipment This tool should be disposed of as Electrical & Electronic Waste. PB320 US - W18XC1054/US - Revised 030113... -
Page 5: Intended Use Of Power Tool
The drill unit should be lowered to its lowest position for improved stability. Under no circumstances should the motor cable be used for lifting the power tool. PB320 US - W18XC1054/US - Revised 030113... -
Page 6: Precautions And Use Of Ppe
Always wear ear protection. Always wear head protection. Always wear non-skid safety shoes. Where appropriate wear a dust mask and gloves depending on the working environment. WORK IN A SAFE MANNER AT ALL TIMES PB320 US - W18XC1054/US - Revised 030113... -
Page 7: Special Safety Precautions - Magnetic Drills
Care should be taken with the ejected slug, this will be both hot and sharp, gloves should be worn when handling the slug. PB320 US - W18XC1054/US - Revised 030113... -
Page 8: Electrical Safety
This is both to protect the operator and to protect the motor inlet from ingress of harmful dust particles. Operators should wear suitable dust masks if dust is created whilst working. PB320 US - W18XC1054/US - Revised 030113... -
Page 9: General Safety Instructions
12 - Secure work Where possible use clamps or a vice to hold the work. It is safer than using your hand. 13 - Do not overreach Keep proper footing and balance at all times. PB320 US - W18XC1054/US - Revised 030113... - Page 10 22 - Have your tool repaired by a qualified person This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. PB320 US - W18XC1054/US - Revised 030113...
-
Page 11: Unpacking And Assembly
UNPACKING AND ASSEMBLY The Powerbor PB320 comes in a rugged blow moulded carrying case before first use:- Remove the machine from the carrying case. (Note:- 27.5 lb weight) Fit the three screw in handles to the pinion shaft. Fit the safety guard as shown in the instructions, see “Using the safety guard”... -
Page 12: Illustrated Description Of Functions
ILLUSTRATED DESCRIPTION OF FUNCTIONS PB320 RAISED PB320 LOWERED PINION SHAFT DRILL UNIT/MOTOR HANDLE x 3 2A FUSE (MAGNET) MOTOR ON/OFF SWITCH MAGNET ON/OFF SWITCH „D‟ LOOP ARBOR ELECTRO - MAGNET BASE PB320 US - W18XC1054/US - Revised 030113... -
Page 13: Limitations On Ambient Conditions
° Ambient temperatures of >113 F should be avoided. STANDARD ACCESSORIES The PB320 is supplied in a rugged carrying case with the following as standard :- 3/4” Weldon shank arbor (1” cut depth) Safety ratchet strap Safety guard 250ml bottle and nozzle - provided for use with coolant. -
Page 14: Setting And Testing
First ensure the ejector pin is in place. Align the flats with the two fixing screws. Push the cutter up into the arbor until it stops. Tighten the two fixing screws onto the cutter flats with the hex keys supplied. PB320 US - W18XC1054/US - Revised 030113... -
Page 15: Removing The Arbor And Fitting The Drill Chuck
Replacement of the arbor is a reversal of the procedure above. USING TWIST DRILLS Twist drills can be used with the PB320. To accommodate twist drills, or any plain shank cutting tool, the PB320 is supplied as standard with a 1/2” drill chuck and key. -
Page 16: Guards
The security of the magnet should always be physically checked BEFORE starting the drill unit. The magnet is protected by a 3/4” 2A fast acting fuse (G). PB320 US - W18XC1054/US - Revised 030113... -
Page 17: Cutting Speeds/Materials-Hss Cutters
CUTTING SPEEDS/MATERIALS—HSS CUTTERS The PB320 is a single speed drill unit with a nominal load speed of 380 rev/min. Under load the PB320 will regulate its speed depending on the load applied. ie: a small cutter will run faster than a larger cutter (if the same feed rate is applied) The PB320 has the optimum power / torque / spindle speed for HSS annular cutters in 1/2”... -
Page 18: Drill Unit Spindle Control
OPTIONAL COOLANT SYSTEM The arbor supplied with PB320 has an internal reservoir for coolant built in. If additional coolant capacity is required, an external coolant system which feeds through the arbor is available. -
Page 19: Reversing Of The Handles
The pinion shaft can be reversed on this type of machine to allow the drill better access in confined spaces. When the handles are reversed, again the operator should still have full access to the control panel before using the machine. PB320 US - W18XC1054/US - Revised 030113... -
Page 20: Using The Drill With Annular Cutters
This will be both hot and sharp. Care should be taken when handling the slug. Care should be taken that the ejection slug is safe and can not injure anyone in the vicinity, the slug should be prevented from falling where possible. PB320 US - W18XC1054/US - Revised 030113... -
Page 21: Regular Cleaning, Maintenance And Lubrication
“saddle” so chuck to be quickly placed into the arbor the material of the workpiece does of the machine. not need to be magnetic. PB320 US - W18XC1054/US - Revised 030113... -
Page 22: Servicing By Manufacturer
P O W E R B O R W A R R A N T Y S T A T E M E N T Powerbor warrants its magnetic drills for one (1) year from the date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge, any items returned. - Page 23 PB320 WIRING DIAGRAMS PB320 US - W18XC1054/US - Revised 030113...
- Page 24 M8 X 8 GRUB SCREW 18X524 PINION END CAP 18X330 PLASTIC CASE 18X502 PINION BUSH 18Y170 CHUCK ADAPTOR 18Y144 PINION SHAFT 18Y136/110 CONTROL PANEL COMPLETE - 110V 18X718 HANDLE (1/2”) 18X520 KNOB (1/2”) 17+18 18Y145 HANDLE/KNOB COMPLETE PB320 US - W18XC1054/US - Revised 030113...
- Page 25 18Y130 ARBOR BODY (1/2" X 20 UN) 18X321 ARBOR SPRING 18X323 ARBOR PISTON 18X206 3/4" INTERNAL CIRCLIP 18X205 M8 x 8 SOCKET SCREW PB320 DRILL GUARD Item Part No. Description 18Y143 DRILL GUARD PB320 US - W18XC1054/US - Revised 030113...
- Page 26 DRILL UNIT PARTS POWERBOR PB320 Complete PB320 Drill Unit 110V 18X305 PB320 US - W18XC1054/US - Revised 030113...
- Page 27 PB320 US - W18XC1054/US - Revised 030113...
- Page 28 CE Declaration of Conformity On our sole responsibility we declare that this product, the Powerbor PB320 Drill, is in conformity with the following standards and standard documents :- EN61029-1:2009 - Safety of Transportable Motor Operated Electric Tools EN61000-6-2:2005 - Electromagnetic Compatibility (EMC). Generic standards.
