Summary of Contents for Alpha Fan AX80-3B/56

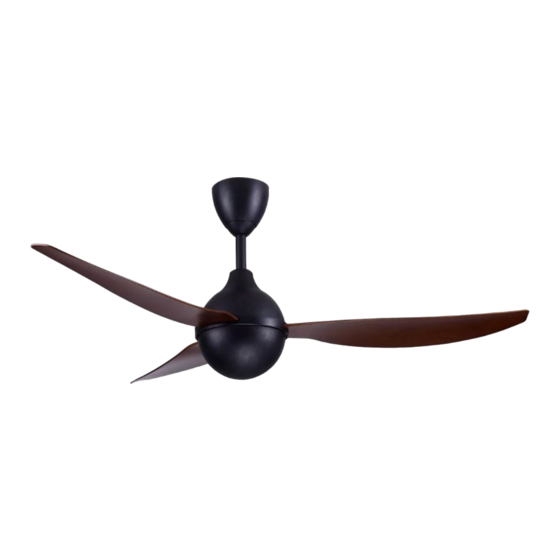

- Page 1 Model : AX80-3B/56 AX80-5B/40 AX80-5B/46 AX80-5B/56 Version: 2022 V1...
- Page 2 1 - 2 4 - 6 Transmitter Learning Process & Function 7 - 8 Power Supply Connection & Circuit Diagram 9 - 10 Warning Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. All field wiring must be installed in accordance with the national wiring regulation.
-
Page 3: Safety Precaution
The fan is to be installed so that the blades are more than 2.5m above the floor. AX80-3B/56 : Fan Blade x 3 Safety cord should not be longer than the earthing conductor. AX80-5B/40 : Fan Blade x 5... - Page 4 Step 4 a. Fix the Rubber Pulley Assembly to the Downrod Tie the Safety Wire across the hook as shown and a. Connect the Connectors from Fan and Receiver. with Bolt, Washer, Nut and tighten them firmly firmly screw the Safety Wire onto the Downrod. b.
- Page 5 Within 30 sec, press and hold the “LEARN” button for 3 sec. Once the receiver has detected the frequency, transmitter will “Beep Beep” twice. Programming process is completed and fan is ready to use. If the fan is not responding to the transmitter, repeat Step 1b. Model: AX80-3B/56 Learn Press and hold...
- Page 6 Power Fan Speed Turn off fan 1 - Lowest speed 8 - Highest speed Natural Wind Forward Reverse Fan speed changes within Anti-clockwise or its range creating gentle clockwise rotation. sea-breeze effect Regulator Dimmer Switch Timer On 1h - Fan turns on after 1 hour 3h - Fan turns on after 3 hours 6h - Fan turns on after 6 hours 8h - Fan turns on after 8 hours...
- Page 7 IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO DIMMER AX80-5B/56 SWITCH OR REGULATOR. Model AX80-3B/56 AX80-5B/40 AX80-5B/46 No. of Blades Fan Width 1420mm (56”) 1015mm (40”) 1165mm (46”) 56” 90 - 225 80 - 205 Motor RPM...
- Page 8 If you need any technical assistance or faulty report, please contact our customer service centre at : Alpha Home Appliances Sdn. Bhd. (390258-H) Head Office : 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, Section 32, 40460 Shah Alam, Selangor. : 03-5740 6666 : 03-5740 8220 Website...
