WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary
Tools
Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are
missing, please contact the retailer from whom you bought this product.
This product takes approximately 60 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.

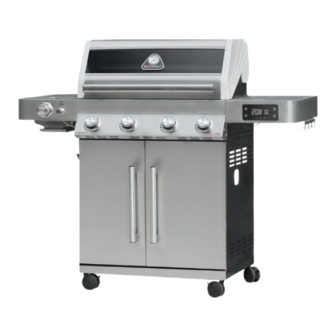

Gourmet 4 Burner Barbecue
GOH46SS
x 4
x 12
x 12
x 2
x 44
X5
AA Battery
(Not included)
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
Scan me for step by
step video instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gourmet GOH46SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grillstream Gourmet GOH46SS

Summary of Contents for Grillstream Gourmet GOH46SS

  • Page 1 Gourmet 4 Burner Barbecue GOH46SS x 44 x 12 x 44 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions. Failure to follow these instructions may result in serious injury and/or damage to property.

  • Page 2: Table Of Contents

    GOH46SS Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same Page How is it different from natural gas Page...

  • Page 3: Warning Information

    - Never alter or modify the regulator or gas supply assembly. Propane - 2.75 kPa Universal LPG - 2.75 kPa LOCATION OF YOUR BBQ IMPORTANT - BBQS MUST BE INSTALLED IN ACCORDANCE WITH GRILLSTREAM BARBECUES, THE MANUFACTURER’S INSTALLATION INSTRUCTIONS, LOCAL LEISUREGROW PRODUCTS LTD. 0359-24 2575-24 GAS FITTING REGULATIONS AND MUNICIPAL BUILDING CODES.

  • Page 4: Testing For Leaks

    GOH46SS SECURING THE HOSE AND REGULATOR ASSEMBLY GAS CYLINDER SAFETY - Always change over a gas cylinder away from any possible source Quick release connection (Fig. 4) of ignition in a well ventilated area - The BBQ’s manifold connection is a quick release connector - Do not smoke whilst handling gas cylinders - Gently pull back the movable section on the manifold, insert hose - Never store gas cylinder indoors...

  • Page 5: Lighting Your Bbq

    • off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. LIGHTING YOUR BBQ (cont.) Grillstream Grills fit directly on top of each other - do not offset them. lo position is obtained by turning the knob fully anti-clockwise - The...

  • Page 6: Hybrid System

    You should now turn off the burners DIRECTIONS FOR USE - GAS: completely and close your Barbecue Hood. The beauty of the Grillstream Hybrid System is that there is no additional assembly or conversion process required, whether you want STEP 4: to use it as a Charcoal Barbecue or Gas Barbecue.

  • Page 7: Smartgrill Instructions

    App, and will be solid after connecting to the App. Wired Probes Plug The Grillstream Smart Grill can handle up to two Battery Gauge separate wired temperature probes to gain superior This displays the current battery level. As the battery control of your grill for perfect results every time.

  • Page 8: Time To Grill App Instructions

    GOH46SS TIME TO GRILL APP INSTRUCTIONS Bluetooth and App Connection • Search “Time to Grill” in iOS store or Play store to download the App. Alternatively, scan the QR code to the right. • Once App is installed, turn on the Bluetooth function on your device and turn on the Smart Grill Display on the BBQ. •...
  • Page 9 GOH46SS Step 3: Probe Interface This is the Probe Interface. You can adjust the target temperature of the selected probe (displayed at the top) manually by moving the slider. Alternatively you can set the target temperature by clicking an item in the menu (see next step). Real time probe temperature is displayed in the bottom right corner.
  • Page 10 GOH46SS Step 6: Timer Expired Once the set time has elapsed the Timer expired icon will appear. Click OK to return to the App. If the Time to Grill App is not currently displaying on your screen you will still receive a notification if you have allowed the App permission to do so in your phone settings.
  • Page 11 GOH46SS TIME TO GRILL APP AT A GLANCE Firebox Real- time Battery capacity Temperature Indicator indicator Meat Probe Real-time Meat Probe Timer Temperature Indicator Meat Probe Target Turn off or Turn on the Temperature Indicator Digitemp Display 1. Firebox Temperature Indicator You can monitor the real-time fire box temperature in Firebox Temperature Indicator.

  • Page 12: Maintenance Of Your Bbq

    To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ.

  • Page 13: Troubleshooting

    Ignition tube and clear out any debris inside (fig C) WARRANTY All of our Grillstream BBQs and accessories are built to last. Our materials are carefully considered with longevity and safety in mind, the technology used in our products is second to none, and all of this is backed up with our friendly customer care team who are on hand for advice and assistance.

  • Page 14: Exploded Diagram

    GOH46SS Page 14...

  • Page 15: Parts List

    Warming Rack Ceramic Side Burner Assembly Grill Lifter Side Burner Lid Circular Griddle Plate Side Burner Lid Axle 395mm Grillstream Gastro Grill Ceramic Side Burner Grill 295mm Grillstream Grill Ceramic Side Burner Drip Tray Tool Hook Rack Probe Buffer Page 15...

  • Page 16: Fittings List

    GOH46SS FITTINGS x 44 x 44 x 44 Part Part Part Part x 12 x 44 x 12 x 12 x 44 x 44 x 12 x 12 x 44 x 12 x 44 x 12 x 44 x 12 x 12 x 12 x 12...
  • Page 17 GOH46SS STEP 1 Push each of the Castors (7) into indicated holes in underside of Cabinet Base Panel (6) until you hear a click. Page 17...
  • Page 18 GOH46SS STEP 2 Part unscrew the bolts indicated from Cabinet Base Panel (6), slot the Cabinet Side Panels (8 & 9) into place and retighten bolts. Page 18...
  • Page 19 GOH46SS STEP 3 Insert and part tighten 2 x Bolt (B) into Cabinet Side Panels (8 & 9). Slot Cabinet Rear Panel (10) into place and secure to Cabinet Base Panel (6) with 2 x Bolt (B). Now fully tighten bolts into Cabinet Side Panels (8 &...
  • Page 20 GOH46SS STEP 4 Part unscrew bolts indicated from Cabinet Side Panels (8 & 9) and Cabinet Base Panel (6). Slot Corner Support Brackets (12) in place and retighten bolts. Page 20...
  • Page 21 GOH46SS STEP 5 Insert Front Support Bar (11), ensuring magnets are at the bottom edge, and secure with 4 x Bolt (A). x 44 Part x 12 x 44 x 12 M4x12 Bolt Page 21...
  • Page 22 Unscrew and remove Wingnut and Washer from Thermometer (2). Thread Thermometer Spindle through Grillstream Logo Plate (3) and then through Glass Window of Hood (1). Replace Washer and Wingnut. Note: Do not overtighten as this could lead to damaging of the Glass Window.
  • Page 23 GOH46SS STEP 7 Secure cooking frame to side panels (8 & 9) using 4 x Bolt (B). Part M6 x 12 Bolt Page 23...
  • Page 24 GOH46SS STEP 8 Part unscrew bolts on side of Cooking Frame (5) as indicated. Slot Side Shelf (13) in place and re-tighten bolts to secure. Page 24...
  • Page 25 GOH46SS STEP 9 Further secure Side Shelf (13) in place from inside the Cooking Frame using 2 x Bolt (B) and 2 x Washer (D). Note: Washers (D) are domed and bottom of dome should be facing the Cooking Frame. Part Part M6 x 12 Bolt...
  • Page 26 GOH46SS STEP 10 Part unscrew bolts on side of Cooking Frame (5) as indicated. Slot Ceramic Side Burner Shelf (14) in place and retighten bolts to secure. Page 26...
  • Page 27 GOH46SS STEP 11 Further secure Ceramic Side Burner Shelf (14) in place from inside the Cooking Frame using 2 x Bolt (B) and 2 x Washer (D). Note: Washers (D) are domed and bottom of dome should be facing the Cooking Frame. Part Part M6 x 12 Bolt...
  • Page 28 GOH46SS STEP 12 Connect Side Burner Hose to terminal on Cooking Frame by pulling back the movable section on the manifold and pushing hose in firmly. To disconnect, pull back the movable section on manifold and pull apart. Please ensure you perform a gas leak check on this connection as instructed at the end of this manual.
  • Page 29 GOH46SS STEP 13 Unscrew button from Side Burner Ignition and insert 1 x AA Battery (supplied), paying attention to polarity as indicated. Now screw Ignition Button back in place. Page 29...
  • Page 30 GOH46SS STEP 14 Attach Gas Connection Bracket to Side Panel (9) using Bolt (A). Now tighten the nut above the Gas Connection Bracket, this will help hold the hose in place when you attach the hose and regulator later. Note: The Gas Connection Bracket and Hose will be attached behind the Control Panel via cable tie, please cut the cable tie carefully to avoid damaging the components behind the Control Panel.
  • Page 31 GOH46SS STEP 15 Pass spacers and bolts from separate bolt pack through Cabinet Doors (23) and screw into Door Handles. Insert Door Spindles (C) into Cabinet Base Panel (6). To fit Cabinet Doors (23) in place, first slide the hole on bottom of door over Door Spindle (C), depress spring-loaded catch on underside of Cooking Frame and position top of door until spring-loaded catch slides into top hole.
  • Page 32 GOH46SS STEP 16 Attach Grease Cup Bracket (26) to underside of Grease Tray (25) using 2 x Bolt (A). Place Grease Cup (27) inside Grease Cup Bracket (26) and then slide underneath Cooking Frame ensuring it is level and on top of runners. x 44 Part x 12...
  • Page 33 GOH46SS STEP 17 Slot Probe Buffer (20) over Temperature Probe located inside Cooking Frame (5) and secure in place using 2 x Bolts (E). Part M4x12 SS Bolt Page 33...
  • Page 34 Cooking Frame. Leg tabs from bottom Grillstream Grills and Grillstream Gastro Grills should rest on lip at back of Cooking Frame with the logo tab at the front. Top Grillstream Grills should sit directly on top of the bottom Grills.
  • Page 35 GOH46SS STEP 19 Insert back legs of Warming Rack (34) into channel on Warming Rack Clips. Angle Warming Rack forwards and insert front legs into holes located on Cooking Frame (5). To operate, lift front legs out of holes in Cooking Frame and tilt Warming Rack upwards. Pull Warming Rack forwards slightly so back legs are inline with vertical track and slide downwards.
  • Page 36 GOH46SS STEP 20 Connect both Battery Wires to the Battery Pack (31). The reverse of the Battery Pack is magnetic and should attach to Cabinet Side Panel - Right (9) in area shown. Insert 4 x AA Batteries (not supplied) into Battery Pack. The On/Off switch for the LED Control Knob function is located to the right of the control panel.
  • Page 37 GOH46SS STEP 21 Unscrew bolt supplied with Tool Hook Rack (39). Hook the Tool Hook Rack over the ledge on underside of Side Shelf (13) and secure in place using the bolt you previously removed. Page 37...
  • Page 38 Attach Bottle Opener (29) through Cabinet Side Panel (8) using bolts and Bottle Opener Bracket (30) as shown. Hook Grillstream Fat Cup (28) over holes in Cabinet Side Panel (9). This should be located directly below the spout of Fat Channel (32) to catch fat and meat juices channelled from the Grillstream system.

  • Page 39: Leak Test

    GOH46SS TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks.
  • Page 40 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:consumer@leisuregrow.com...
