Bari Rehab Platform 2™
User
Manual
Rev. 4.0 #8033
SIZEWISE
02.26.2021
User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bari Rehab Platform 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sizewise Bari Rehab Platform 2

Summary of Contents for Sizewise Bari Rehab Platform 2

  • Page 1 User Manual Bari Rehab Platform 2™ Rev. 4.0 #8033 SIZEWISE 02.26.2021 User Manual...

  • Page 2: Table Of Contents

    Warnings and Cautions ....................... 4 Important Safety Instructions ...................... 6 Device Information ........................11 Description of the Bari Rehab Platform 2™ ................11 Description of the optional Rest Secure System™ (RSS) ............11 Specifications ..........................12 Bari Rehab Platform 2™ Specifications ................... 12 SW Rest Secure System™...
  • Page 3 Bed Exit Alarm: Set Alert Tones ..................32 Bed Exit Alarm: Record Message..................32 Scale System: Adjust Weight....................33 Scale System: Change LBS/KGS. Setting ................33 Scale System: Locking/Unlocking the Unit in LBS/KGS ............ 34 Proper Use of the Bed ........................35 Reaching or Leaning .........................
  • Page 4 Lubricating the Actuators ......................67 Fasteners ........................... 68 Storage and Disposal......................... 68 Troubleshooting ..........................69 Bari Rehab Platform 2™ Troubleshooting ................69 SW Rest Secure System™ Troubleshooting ................70 Warranty Information ........................71 Sizewise Rentals™, LLC (Sizewise) Limited Warranty ............71 Manufacturer Disclaimer ......................

  • Page 5: Definition Of Symbols

    Definition of Symbols Manual Definitions Throughout this manual different type fonts and icons are used to aid user readability and understanding of the content. Below are some examples. Standard Text Used for regular information. Bold Face Text Emphasizes a word or phrase. NOTE SETS APART SPECIAL INFORMATION OR IMPORTANT INSTRUCTION CLARIFICATION.
  • Page 6 Symbol for Type B applied parts indicating protection provided against electric shock. The pinch point is spacing between movable parts of the device which, in positions of normal use fail to maintain a clearance of ≤ 8mm or ≥ 25mm. Protective Earth Terminal Grounding symbol.

  • Page 7: Important Safety Instructions

    For user and patient safety, read and follow all warnings and instructions that apply to use of the Bari Rehab Platform 2™. Before using this bed, the user must know what to do to ensure safety. Put the patient at ease. The care provider should communicate with the patient by telling them what they are planning to do.
  • Page 8 Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website.
  • Page 9 Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website.
  • Page 10  Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website.
  • Page 11  Many of the screws and bolts used in the bed are special high-strength fasteners. Contact an authorized Sizewise technician to assist if finding the correct fasteners. If improper fasteners are used, they could result in patient and/or user injury as well as damage to equipment or other property.

  • Page 12: Device Information

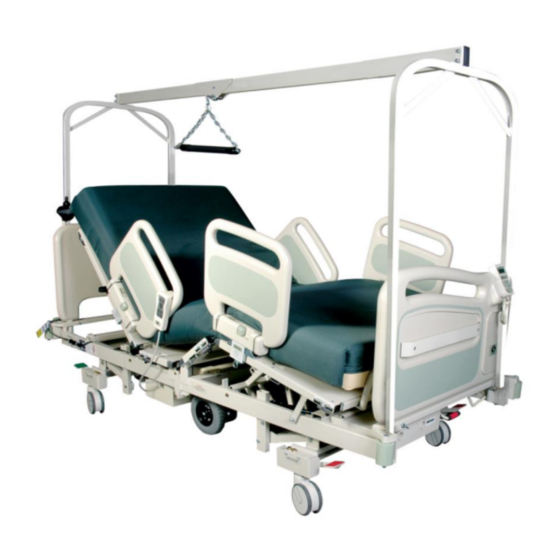

    Device Information Description of the Bari Rehab Platform 2™ The Bari Rehab Platform 2™ is an electric bed. The positioning nature of this bed also provides care providers convenience in attending to the patients. The frame is constructed entirely from metal and is adjustable in height from a low position of 15.75”...

  • Page 13: Specifications

    Specifications Bari Rehab Platform 2™ Specifications Quality Assurance Standards ................IEC 60601 CSA C22.2 No. 601.1 IEC/EN 60601-2-38 IEC/EN 60601-1 IEC 60601-1-2 Degree of Protection Against Electric Shock ............Type B Degree of Protection Against Ingress of Water ............IPX4 Electrical Rating............
  • Page 14 Weight Capacity Bed ................1000 lbs. / 453 kgs. Optional IV Pole .............. 50 lbs. / 22 kgs. Optional Trapeze ............850 lbs. / 385 kgs. (Exceeding these limits will void the warranty) With Optional Trapeze Attached to Bed Height from Floor .............. 75.75” – 90” / 192 cm – 228 cm WARNING: Exceeding the weight capacity and/or safe working load listed in the specifications could result in patient or user injury as well as damage to equipment or other property.

  • Page 15: Sw Rest Secure System™ Specifications

    SW Rest Secure System™ Specifications SW Rest Secure System™ Control Module The Control Module is located under the bed. Housing Material ....................ABS, UL94-V0 rated Width......................7.25” / 18.5 cm Length ......................3.25” / 8.5 cm Thickness ......................2.00” / 5 cm Connectors Power ....................

  • Page 16: Sw Rest Secure System™ Hand Control

    SW Rest Secure System™ Hand Control The Hand Control is located on the footboard. Housing Material ....................ABS, UL94-V0 rated Width....................... 3.50” / 8.9 cm Length ......................7.00” / 18 cm Thickness ......................1.75” / 4.5 cm Connectors CAN Network ...................... 6 pin RJ11 Operating Current Normal ........................

  • Page 17: Unpacking And Set-Up Instructions

    Unpacking and Set-Up Instructions Bari Rehab Platform 2™ Unpacking and Set-Up Unpacking/Parts Breakdown Inspect for any signs of freight damage. If obvious damage is detected, contact the freight company and file a damage complaint. It may be necessary to take pictures of the damage.

  • Page 18: Bed Set-Up

    Bed Set-Up 1. Position both ends of the bed so that the sections are lined up with each other. 2. Insert a 5/16”-18 x 2 1/2” long Grade 8 bolt (A) in the bottom holes, 2 places. Lift both sections of the bed and insert the brackets (B) on section A, behind the bolts on section B.
  • Page 19 6. Next plug the small modular connectors into the blade box mounted on the center frame. 7. Locate the Electronic Control Module (ECM) at the head end of the bed. Connect the hospital grade power cord provided and the hand control cord to the ECM. 8.

  • Page 20: Side Rail Set-Up

    Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result.
  • Page 21 Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result.

  • Page 22: Sw Rest Secure System™ Set-Up

    SW Rest Secure System™ Set-Up Basic Set-Up WARNING: Electric shock may occur when plugging the SW Rest Secure System™ into the wall outlet. Use ONLY grounded or hospital grade outlets. DO NOT use the SW Rest Secure System™ if the power cord is cut, frayed or loosely connected to the bed.

  • Page 23: Scale System: Zeroing The Scale

    3. Choose one of the four alert types and then press ENTER. The selection has now been made and the user will be returned to the Home Screen. Scale System: Zeroing the Scale With the patient out of the bed, press and hold the ZERO button for 3 seconds. This process sets the tare weight (base weight) and will return to the Home Screen when complete.

  • Page 24: Scale System: Weight History Time Setting

    Scale System: Weight History Time Setting The SW Rest Secure System™ is designed to record the weight of the patient by date and time. The unit will automatically record the weight for 30 days at a default time of 00:00 hours (midnight).

  • Page 25: Protocol Timer: Sound Level Setting

    Protocol Timer: Sound Level Setting There are 3 sound levels for the bed exit alarm/protocol reminder. Press the sound level button once for low volume, twice for medium volume, and a third time for high volume. By pressing the sound level button for a fourth time, the sound level will be reset to low volume.

  • Page 26: Setting The Time/Date

    Setting the Time/Date 1. Access the Menu by pressing the UP or DOWN arrow until SYSTEM SETTINGS is highlighted and then press ENTER. 2. Select SET TIME/DATE and then press ENTER. 3. Using the UP or DOWN arrow, the user can now set the hours and then press ENTER.

  • Page 27: Operating Instructions

    Operating Instructions Hand Control These instructions are for the general functions of the bed; any special or unique functions will be referenced to in different sections of this manual. Make sure that the bed is correctly positioned and connected to a grounded 120V AC outlet. WARNING: Once the bed is positioned correctly, lock casters.

  • Page 28: Operation Of Bed

    Operation of Bed WARNING: Failure to heed the warnings pertaining to the operation of the bed could result in patient and/or user injury as well as damage to equipment or other property. Never work under the bed while it is in operation. Casters will move/roll when the bed is in motion.

  • Page 29: Rest Secure Operating Instructions (Optional)

    Rest Secure Operating Instructions (optional) Hand Control The hand control has glow-in-the-dark features; in case of power outages operation is not impaired. A. LCD Display – Lighted display shows the weight and allows the navigation of on-screen menus. B. Microphone – Use to record a message for the voice alarm. C.

  • Page 30: Bed Exit Alarm: Use Alarm

    Bed Exit Alarm: Use Alarm The bed exit alarm function on the SW Rest Secure System™ alerts the care provider that a patient is attempting to exit the bed or is in an immediate risk of falling. This is especially important in settings where continuous surveillance of the patient is not feasible.

  • Page 31: Scale System: Use Scale And Access Weight History

    NOTE: The bed exit indicator light will blink for 10 seconds before the alarm will activate. Upon activation, the indicator will stay on. The bed exit alarm can only be activated with a minimum of 35 lbs. (16 kgs.) on the bed. Scale System: Use Scale and Access Weight History The Rest Secure System’s integrated scale helps reduce the risk of care provider or patient injury by allowing care providers to accurately record the weight of the patient without having to...

  • Page 32: Protocol Timer: Using The Timer

    Protocol Timer: Using the Timer The SW Rest Secure System™ protocol timer can be utilized to alert the care provider that the patient needs to be attended to or checked on at intervals of 1, 2 or 4 hours. The protocol timer has the capability to alert the care provider by an audible tone on the unit and, if connected to the Nurse Call Interface, can activate the nurse call signal.

  • Page 33: Bed Exit Alarm: Set Alert Tones

    Bed Exit Alarm: Set Alert Tones There are 5 different audible alarm tones for the bed exit alarm. The user will hear each of the different tones as they scroll through the 5 selections. 1. Access the Menu by pressing the UP or DOWN arrow until Bed EXIT SETTINGS is highlighted and then press ENTER.

  • Page 34: Scale System: Adjust Weight

    Scale System: Adjust Weight This feature is designed to manually adjust the weight if items were added to the bed without using the Add/Remove option. The user will need to make sure the patient’s weight is known before using this option. 1.

  • Page 35: Scale System: Locking/Unlocking The Unit In Lbs/Kgs

    Scale System: Locking/Unlocking the Unit in LBS/KGS As part of a safety feature, this unit has the ability to lock the unit of measure in lbs. or kgs. This will prevent accidently changing the units in the Scale Settings menu. 1.

  • Page 36: Proper Use Of The Bed

    Proper Use of the Bed WARNING: Follow the instructions for assisting patients in and out of the bed to avoid a fall or injury to the patient and/or care provider. To get in the bed, position the bed at the proper height by following these steps: 1.

  • Page 37: Side Rails

    Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website.
  • Page 38 The side rails are attached to the top deck and designed to move with it. WARNING: It is recommended to have the side rails upright at all times while the patient is in the bed. However, the ultimate decision lies with the medical personnel who are on site and can fully evaluate all factors.

  • Page 39: Transfers

    Transfers WARNING: Follow the instructions for transferring patients to avoid a fall or injury to the patient and/or care provider. Transfers require good balance and agility and are very dangerous. The care provider should learn how to position the body and support himself or herself during a patient transfer. The care provider should work with the patient’s doctor, nurse or therapist to learn safe transfer methods.

  • Page 40: Features

    Features Casters Head Section Casters At the head section there are lock and steer casters. When locked, the bed can still maneuver but the casters will not swivel, this makes them the steering casters. Press down on the pedal to lock and lift up on the pedal to unlock.

  • Page 41: Connection Of Electrical Components

    Connection of Electrical Components Should it become necessary to remove any of the cables from the control box, the diagram below will assist in finding the appropriate cables. The diagram also indicates the fuse placement. Use 4 amp time delay fuses if they need to be replaced.

  • Page 42: Expandable Bed Deck

    Expandable Bed Deck To expand or retract the width of the bed, slide the release knob to the unlock position (the release knob is located directly below the label) and slide the deck to the desired width. Be sure the release knob moves back into the lock position.

  • Page 43: Power Drive System

    Power Drive System WARNING: The bed must be unplugged from the wall outlet before operating the power drive system. The power drive system should be operated ONLY by qualified staff and should remain in the LOCKED mode when not in use. Failure to understand the proper operation of the power drive system could result in patient and/or user injury as well as damage to equipment or other property.

  • Page 44: Sw Scale Meter (Optional)

    Unlocking the Power Drive System Turn the unit ON and notice the sweep action of the LEDS. Press the HORN BUTTON two (2) times in ten (10) seconds. The LEDS will flash and be steady ON. The drive may be operated. SW Scale Meter (optional) The SW Scale Meter is an optional feature with a one touch patient weigh system.
  • Page 45 Release “On Weight” and then press “Hold Transport” to preserve the original weight reading. Adjustments may now be made to the bed or patient. 4. When Finished Press “Hold Transport” to return to the original weight reading. Release “Hold Transport” and then press “On Weight”. NOTE: if left in “HOLD”, the scale will not turn off and the batteries will be drained.

  • Page 46: Serial Number Location

    Serial Number Location The bed has a manufacturer serial number, and a Sizewise Rentals LLC serial number. The serial numbers are located at the foot of the bed by the Electrical Control Module.

  • Page 47: Trapeze Assembly

    Sizewise at 1-800-814-9389. WARNING: Do not attempt to install, repair, or remove the trapeze, single pole patient assist, or any other overhead components/devices while bed is occupied. WARNING: Before positioning patient on bed, verify all components are secure after adjustments, repairs, or servicing of the trapeze, single pole patient assist, or any other overhead components/devices.

  • Page 48: Trendelenburg Disabling

    1. Attach the end posts into the appropriate brackets on the head and foot sections of the bed. 2. Place the overhead beam into the slots on top of each end post. NOTE: Be sure to place the holes facing upward on the overhead beam.

  • Page 49: Seven Zones Of Bed Rail Entrapment

    If the patient would have any clinical conditions that could result in risk of falling or improperly lying in bed, the bed should be left at its lowest setting and in flat position when not attended. Sizewise recommends the use of bed rails if they are available. There are seven zones of bed rail entrapment.
  • Page 50 This bed complies with IEC 60601-2-38 standard for bed rail entrapment. Below are the specifications of that standard. This was taken from the 60601-2-38 Amend. 1 IEC 1999. DESIGNATOR DESCRIPTION DIMENSION ≤ 120 mm Smallest dimension between elements inside the perimeter of the SIDE RAIL in its raised/locked positions or perimeters created between the SIDE RAIL and fixed parts of the BED.

  • Page 51: Safety Tips

    Emissions The Bari Rehab Platform 2™ and SW Rest Secure System™ been type tested and have passed the requirements of CISPR 11. Observe the following recommendations to minimize radio frequency emissions in this section and the Electromagnetic Interference section.
  • Page 52 RoHS Compliant Electromagnetic Interference (EMI) The Bari Rehab Platform 2™ and SW Rest Secure System™ have been tested and are intended for safe use with other components compliant to IEC 601 standards for medical devices. The Bari Rehab Platform 2™ and SW Rest Secure System™ can cause interference with non-601 regulated equipment and/or other non-601 regulated equipment can cause interference with The Bari Rehab Platform 2™, and SW Rest Secure System™.

  • Page 53: Electromagnetic Interference (Emi) From Radio Wave Sources

    Secure System™. Electromagnetic Interference (EMI) from Radio Wave Sources The Bari Rehab Platform 2™ and SW Rest Secure System™ have been tested and are intended for safe use with other components compliant to IEC 601 standards for medical devices. The Bari Rehab Platform 2™...
  • Page 54 Table 201 Guidance and Manufacturer’s Declaration – Emissions Equipment and Systems that are NOT Life-Supporting The Bari Rehab Platform 2™ and SW Rest Secure System™ are intended for use in the electromagnetic environment specified below. The customer, or user, of the bed should ensure that it is used in such an environment.
  • Page 55 Table 202 Guidance and Manufacturer’s Declaration – Immunity All Equipment and Systems The Bari Rehab Platform 2™ and SW Rest Secure System™ are intended for use in the electromagnetic environment specified below. The customer, or user, of The Bari Rehab Platform 2™...
  • Page 56 Table 204 Guidance and Manufacturer’s Declaration – Immunity Equipment and Systems that are NOT Life-Supporting The Bari Rehab Platform 2™ and SW Rest Secure System™ are intended for use in the electromagnetic environment specified below. The customer, or user, of the bed should ensure that it is used in such an environment.
  • Page 57 Recommended Separations Distances for The Bari Rehab Platform 2™ and SW Rest Secure System™: The Bari Rehab Platform 2™ and SW Rest Secure System™ are intended for use in the electromagnetic environment in which radiated disturbances are controlled. The customer, or user, of The Bari Rehab Platform 2™...

  • Page 58: General Safety

    General Safety WARNING: The bed is to be used in accordance with each facility’s policies and procedures. CAUTION: Possible fire hazard when used with oxygen administering equipment other than the nasal, mask or 1/2 bed length type tent. Oxygen tent should not extend below the mattress support level.

  • Page 59: Pinch Point

    Pinch Point Watch for pinch points on the bed, which are indicated by the pinch point label. HAZARD: Pay close attention to pinch points on the bed to avoid injury to the patient and/or care provider. Pinch points have minimal clearances between two moving parts that fail to maintain a clearance of ≤...

  • Page 60: Transport

    Transport WARNING: During transport, use caution so the bed does not tip or overbalance. Failure to do so could result in patient and/or user injury as well as damage to equipment or other property. CAUTION: The bed needs to be stored, transported and operated in a temperature range of -5°C to 45°C (23°F to 113°F).

  • Page 61: Cleaning Instructions

    Cleaning Instructions WARNING: Before cleaning the bed, be sure to disconnect it from the wall outlet (power source). Failure to do so could result in electrical shock and could result in patient and/or user injury as well as damage to equipment or other property.
  • Page 62 General Patient Room Cleaning/Disinfecting Personal Protective Equipment should always be used as directed by the Material Safety Data Sheet for the disinfectant. Prepare the disinfectant according to the manufacturer’s recommendations. Prepare a separate bucket of warm, fresh water to be used for rinsing the equipment after cleaning/disinfecting procedures are completed as instructed.
  • Page 63 Steam Cleaning This product may be steam cleaned to eliminate bacteria and/or bed bug infestations, if desired. When applying steam, avoid areas such as electrical connections and components including scale meters, scale system components, hand and/or footboard controls that may be damaged by being exposed to excessive moisture and/or heat.
  • Page 64 Sleep Surfaces (Including Mattress Bases and Top Covers) NOTE: The use of bleach-based products/solutions will provide a higher concentration of the agent than is required to eliminate the bacteria and will increase the potential for damage to the fabric and the built-in protective barrier to fluid of the sleep surface. NOTE: To reduce the discoloration of the sleep surface lining, surfaces must be thoroughly rinsed with clean, fresh water to remove chemical residues immediately after the required “wet contact time”...

  • Page 65: Laundry Instructions

    7. Rinse all surfaces of the control unit with fresh water and use a clean cloth to remove chemical and organic residue. 8. After cleaning, all surfaces are to be dried with a clean, dry cloth. Control unit air filters must be cleaned weekly. Replacement of the control unit air filter is recommended every 6 months.

  • Page 66: Optional Accessories

    Optional Accessories Full-Frame Trapeze The entire frame of the trapeze is to be wiped using a coarse cloth, dampened with the disinfectant solution, prepared as directed by the manufacturer’s recommendations, to remove organic material and visible dirt. Allow the trapeze to remain wet with disinfectant solution for the manufacturer’s recommended contact time.

  • Page 67: Maintenance

    Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted, immediately have them checked and/or repaired by an authorized Sizewise Technician. Frequent maintenance and servicing will improve performance between each use and extend bed life.

  • Page 68: Service/Replacement Of Hand Control

    Service/Replacement of Hand Control Should it become necessary to remove the hand control from the bed, the motor cable must first be removed from the bed. WARNING: Failure to follow the service/replacement of hand control instructions could result in damage to the hand control cable plug. Removal: 1.

  • Page 69: Fasteners

    If improper fasteners are used, they could result in patient and/or user injury as well as damage to equipment or other property. Improper fasteners may fail. Use only screws and bolts provided by an authorized Sizewise representative.

  • Page 70: Troubleshooting

     Inspect all mechanical components to make sure they are free of any obstacles that may restrict movement and that they are in good working order. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service.

  • Page 71: Sw Rest Secure System™ Troubleshooting

    Nurse call will not activate:  Make sure cable from bed to wall interface is securely plugged. Check cable from CPU box to bed frame. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service.

  • Page 72: Warranty Information

    2. If a product or part should be returned to Sizewise, a return authorization number (RA#) will be issued. The RA# will be valid for 21 days from the date it is issued.

  • Page 73: Manufacturer Disclaimer

    Contact or consult Sizewise to ensure proper equipment sizes, specifications and options. Trademarks and Patents The Bari Rehab Platform 2™ and SW Rest Secure System™ are trademarks of Sizewise Rentals LLC. Patent for the Bari Rehab Platform 2™ and SW Rest Secure System™.

  • Page 74: User Assistance Information

    User Assistance Information For questions or assistance with this product, contact Sizewise at: Sizewise 1600 Genessee Suite 950 Kansas City, Missouri 64102 Phone: 1-800-814-9389...
  • Page 75 Kansas City, Missouri 64102 Phone: 1-800-814-9389 sizewise.net Sizewise and Sizewise Rentals are trademarks of Sizewise Rentals, L.L.C. All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models.
