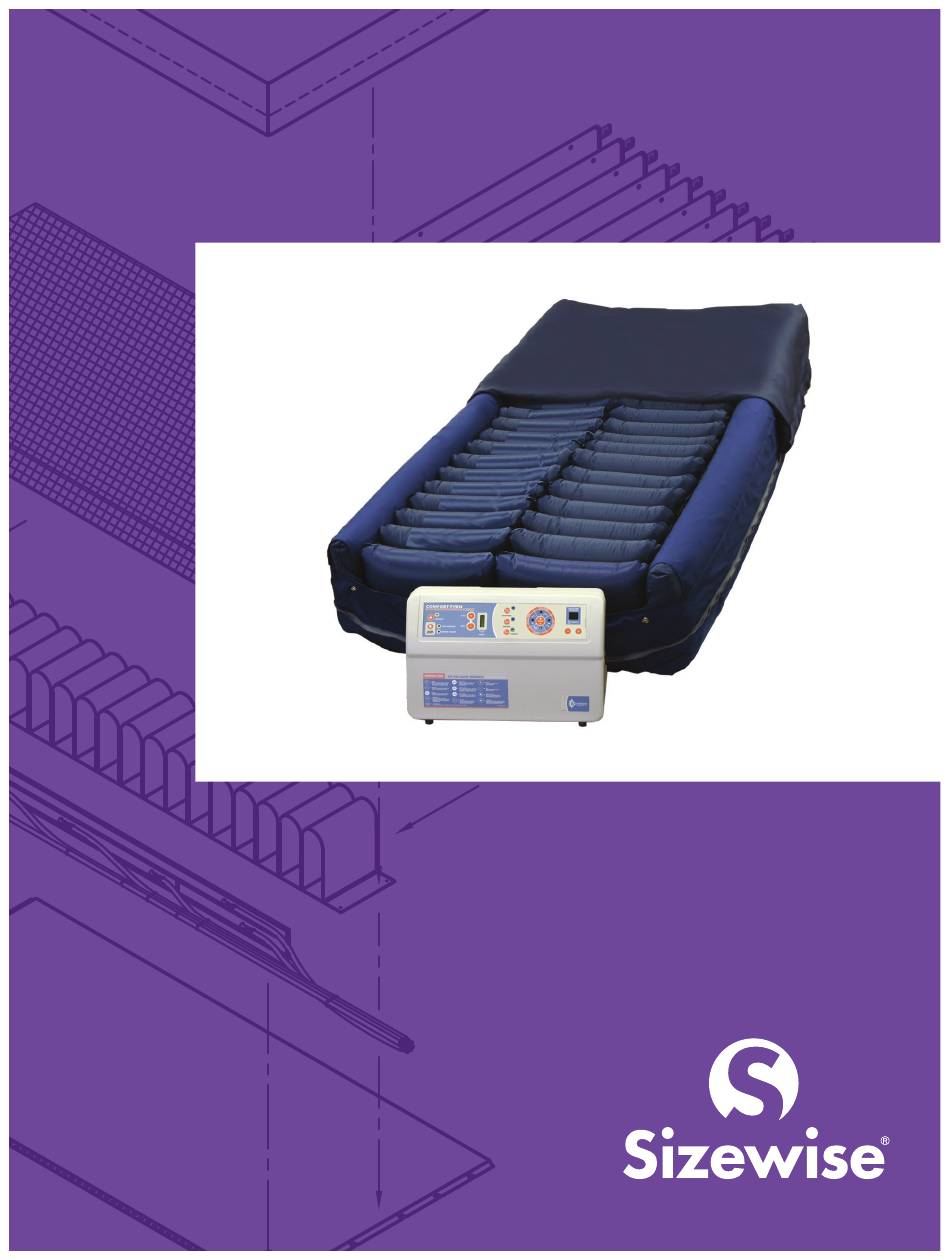

- Page 1 Comfort Turn™ User Manual Doc. #8092, Rev. 2.0, Rev. ECO 053118-1,Date: 06/04/2018 MFG-0021B-0518...
-
Page 2: Table Of Contents
Table of Contents Definition of Symbols ........................4 Manual Definitions ........................4 Warnings and Cautions ........................ 5 Device Information ........................... 6 Description of the Device ......................6 Purpose of the Device ........................6 Indications for Use ........................6 Specifications ........................... 7 Unpacking and Set-Up Instructions .................... - Page 3 Electromagnetic Compatibility (EMC) ..................23 Troubleshooting ..........................28 Frequently Ordered Parts ........................ 29 Warranty Information ........................30...
-
Page 4: Definition Of Symbols
Definition of Symbols Manual Definitions Throughout this manual different type fonts and icons are used to aid user readability and understanding of the content. Below are some examples. — Standard Text Used for regular information. — Bold Face Text Emphasizes a word or phrase. —... - Page 5 Power Cord Label Leakage This symbol marks the location of the Test Point leakage test point screw. The hazards and warnings are indicated on the shipping container by this label. This symbol marks the location and specification of the fuse.
-
Page 6: Device Information

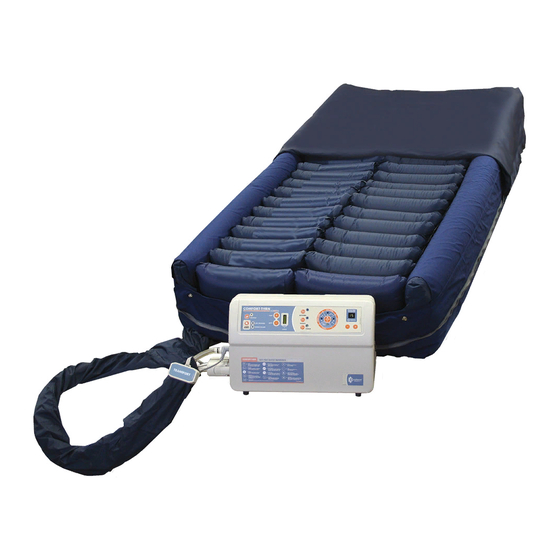

(air mattress) and an electrically powered Control/Blower Unit. Purpose of the Device The purpose of the SIZEWISE COMFORT TURN® Clinically Effective Low Air Loss Mattress System is to provide therapeutic benefit to patients at risk, or suffering from pressure ulcers. -
Page 7: Specifications
Specifications SIZEWISE COMFORT TURN® Control Unit/Blower Mode of Use……………………………………………………………………………………….…. For Indoor Use Only Duty Cycle....…………………………………………………………………………………………..Continuous Controller Dimensions………………………….…..… (LxWxH) 6”(15 cm) x 16”(41 cm) x 10.5”(27cm) Controller Weight…………………………………………………………….…………………………… 11 lbs. (4.98 kg) Operating Temperature……………………………………………………………….. -18°C to 35°C (0°F to 95°F) ... -
Page 8: Unpacking And Set-Up Instructions
Unpacking and Set-Up Instructions SIZEWISE COMFORT TURN® The two principle components of the Mattress Replacement System are a specialized air inflatable bladder (Air Mattress) and an electrically powered, Air Control Unit (Control/Blower Unit). Unpacking / Parts Breakdown: Parts: Control Unit/Blower... - Page 9 Warning or Safety Instructions relating to setup: WARNING: (120V unit ONLY) Make sure the power cord is plugged into a properly grounded hospital grade 120V A/C outlet. Warning or Safety Instructions relating to setup: WARNING: (220V unit ONLY) Make sure the power cord is plugged into a properly grounded hospital grade 220V A/C outlet.
-
Page 10: Operating Instructions
Operating Instructions SIZEWISE COMFORT TURN® can be placed on any conventional bed used in hospitals, nursing homes or a home medical bed. The original bed mattress should be removed and stored in an appropriate place. The following steps should be completed in installing the system: 1. - Page 11 Auto Fowler This is where the Auto Fowler attachment connects to the attachment control unit. 4. Pulsate Mode a. Press the Mode button until the Pulsate option light comes on. b. Set the desired cycle time with Cycle Time buttons (3-20 minutes). c.
-
Page 12: Patient Care Functions
Patient Care Functions Placing the Patient on the Mattress Surface Place the patient on the mattress surface from a bed or stretcher with a transfer device. The mattress should be set in the Auto Firm mode. In order to ensure proper immersion and envelopment of the patient, the user should: 1. -
Page 13: Prone Position
DO NOT leave a prone patient on the mattress surface. If the patient is unable to move without help, the patient’s airway may be compromised. If the patient is to be kept prone for an extended period of time, consult a Sizewise representative for assistance. Bedpan Placement & Removal Position the patient’s hips over the center of the mattress. -
Page 14: Keypad Quick Reference
Keypad Quick Reference Lockout Alarm Silence Locks all functions Mutes the audible alarm. automatically after 3 mins. (Visual light will not turn To disable, press and hold off until failure is resolved.) lockout button for 3 sec. Firm Soft Increases airflow for a Decreases airflow for a firmer setting. -
Page 15: Maintenance
Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted immediately have them checked and/or repaired by an authorized Sizewise technician. Frequent maintenance and servicing will improve performance and extend product life. -
Page 16: Mattress Cleaning Instructions
Mattress Cleaning Instructions WARNING and CAUTION: It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting. DO NOT autoclave. NOTE: Improper cleaning, rinsing or the incorrect use of cleaning agents can lead to premature fabric discoloration and breakdown of the fabric’s fluid-resistance, stain-resistance and fabric strength. -
Page 17: Mattress Top Cover
Clostridium difficile (C. diff) Prevention: Clorox Germicidal Wipes (Clorox Professional Products Company), EPA Reg. #67619-12 These pre-moistened wipes meet the CDC’s recommendations for Clostridium difficile (C.diff) bacteria, after the manufacturer’s recommended “wet contact time”. 1. Perform hand hygiene using soap and warm water, or hand sanitizer, and then put on disposable gloves and eye protection. -
Page 18: Mattress Base
After washing, the mattress top cover is to be air dried or dried in a dryer at very low or no heat to protect it from heat related damage. Mattress Base: 1. Prepare the disinfectant according to the manufacturer’s recommendations. 2. -
Page 19: Control Unit/Blower Cleaning Instructions
Control Unit/Blower Cleaning Instructions: NOTE: Hand clean only. DO NOT place in sterilization room or chamber. 1. Personal Protective Equipment should be used as directed by the Safety Data Sheet for the disinfectant. 2. Prepare the disinfectant according to the manufacturer’s recommendations. 3. -
Page 20: Safety Tips
WARNING: Bed rail entrapment is a serious health risk that can result in serious injury or even death. Sizewise recommends the care provider be mindful of the FDA guidelines relevant to bed rail entrapment, as serious injury can result. These guidelines can be found on the FDA website. -
Page 21: Storage And Disposal
Avoid storage of other equipment on top of the support surface. DO NOT expose the control unit to humidity greater than 95%. End-of life products must be disposed of properly according to local laws and regulations. Please contact Sizewise or your local authorities for disposal and recycling options. -
Page 22: Important Safety Instructions
Important Safety Instructions Unpacking and Set-Up Instructions Keep out of direct sunlight. DO NOT expose to temperatures greater than 35°C (95°F) or below -18°C (0°F). DO NOT expose the Control Unit/Blower to humidity greater than 95%. (110V unit ONLY) Ensure the power cord is plugged into a properly grounded AC 110V outlet. -
Page 23: Electromagnetic Compatibility (Emc)
All pins of connectors have passed ESD testing. List of Cables & Accessories Replacement parts, such as cables and accessories, must be purchased through Sizewise to ensure proper compliance requirements. WARNING: Using other manufacturer’s cables and accessories may affect EMC performance. - Page 24 Table 201 Guidance and Manufacturer's Declaration - Emissions All Equipment and Systems The blower is intended for use in the electromagnetic environment specified below. The customer or user of this blower should ensure that it is used in such an environment. Emissions Compliance Electromagnetic Environment Guidance...
- Page 25 Table 202 Guidance and Manufacturer's Declaration - Immunity All Equipment and Systems The blower is intended for use in the electromagnetic environment specified below. The customer or user of the blower should ensure that it is used in such an environment IEC 60601 Compliance Electromagnetic Environment...
- Page 26 Table 204 Guidance and Manufacturer's Declaration - Immunity Equipment and Systems which are NOT Life-supporting The blower is intended for use in the electromagnetic environment specified below. The customer or user of the blower should ensure that it is used in such an environment. Immunity IEC 60601 Test Compliance...
- Page 27 Table 206 Recommended Separation Distances between portable and mobile RF Communications equipment and the blower. Equipment and Systems which are NOT Life-supporting Recommended Separation Distances for the blower The blower is intended for use in the electromagnetic environment in which radiated disturbances are controlled.
-
Page 28: Troubleshooting
Unplug the Control Unit/Blower and check fuses located near the main ON/OFF switch. Replace fuse/s as necessary. Ensure unit is plugged into a Hospital grade receptacle. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service. -
Page 29: Frequently Ordered Parts
Frequently Ordered Parts The following is a list of parts that are frequently ordered for self-replacement and repairs. To aid in ordering parts, please use the provided product numbers given below for each part. The replacement of some parts not listed here may require sending in the unit to the manufacturer for repairs. -
Page 30: Warranty Information
Buyer is responsible for any shipping, freight, handling, pickup or delivery charges or fees including without limitation any expediting fees involved with the delivery of the defective product or parts to Sizewise’s factory for repair or replacement. If on‐site technical service is required, a service representative will be dispatched during Sizewise’s standard service hours Monday through Friday 8am‐5pm CST and provided the product is located within Sizewise’s service territory. - Page 31 If Buyer declines the repair or replacement service upon notice from Sizewise it is not covered under warranty, Buyer shall reimburse Sizewise for all costs from investigating and responding to Buyer’s request. Any costs to Buyer as referred to herein shall be at Sizewise’s prevailing time and material rates plus any freight and delivery charges incurred by Sizewise. ...
- Page 32 For any product described above that Sizewise determines to have failed to conform to its warranty, Sizewise will provide, at its option, one of the following: (1) repair; (2) replacement; or (3) refund of the purchase price. Sizewise Limited P r o d u c t Warranty service may be obtained by contacting Sizewise or the authorized dealer from whom Buyer purchased the item. Sizewise compensates only Sizewise authorized service providers for warranty trips within their normal service area to repair commercial products at the customer’s location. THESE SHALL BE THE SOLE AND EXCLUSIVE REMEDIES OF THE BUYER FOR ANY BREACH OF WARRANTY. EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES. SIZEWISE AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY, WHETHER ARISING IN CONTRACT...
- Page 33 Sizewise Comfort Turn Mattress System Product No. 61350011 Limited Product Warranty for an additional one (1) or two (2) years, whichever extension is purchased by Buyer (“extended warranty period”). Other than the extension on the warranty period, all other terms of the limited product warranty including without limitation the conditions and restrictions, exclusions and limitations, disclaimer and release, and exclusion of consequential and incidental damages of the original limited product warranty apply during the extended warranty period. For the purpose of clarity an...
- Page 34 Lenexa, KS 66215 800-814-9389 sizewise.com Sizewise is a registered trademark of Sizewise Rentals, LLC. All specifications, equipment, and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models.
