Summary of Contents for Victrola VPA-583

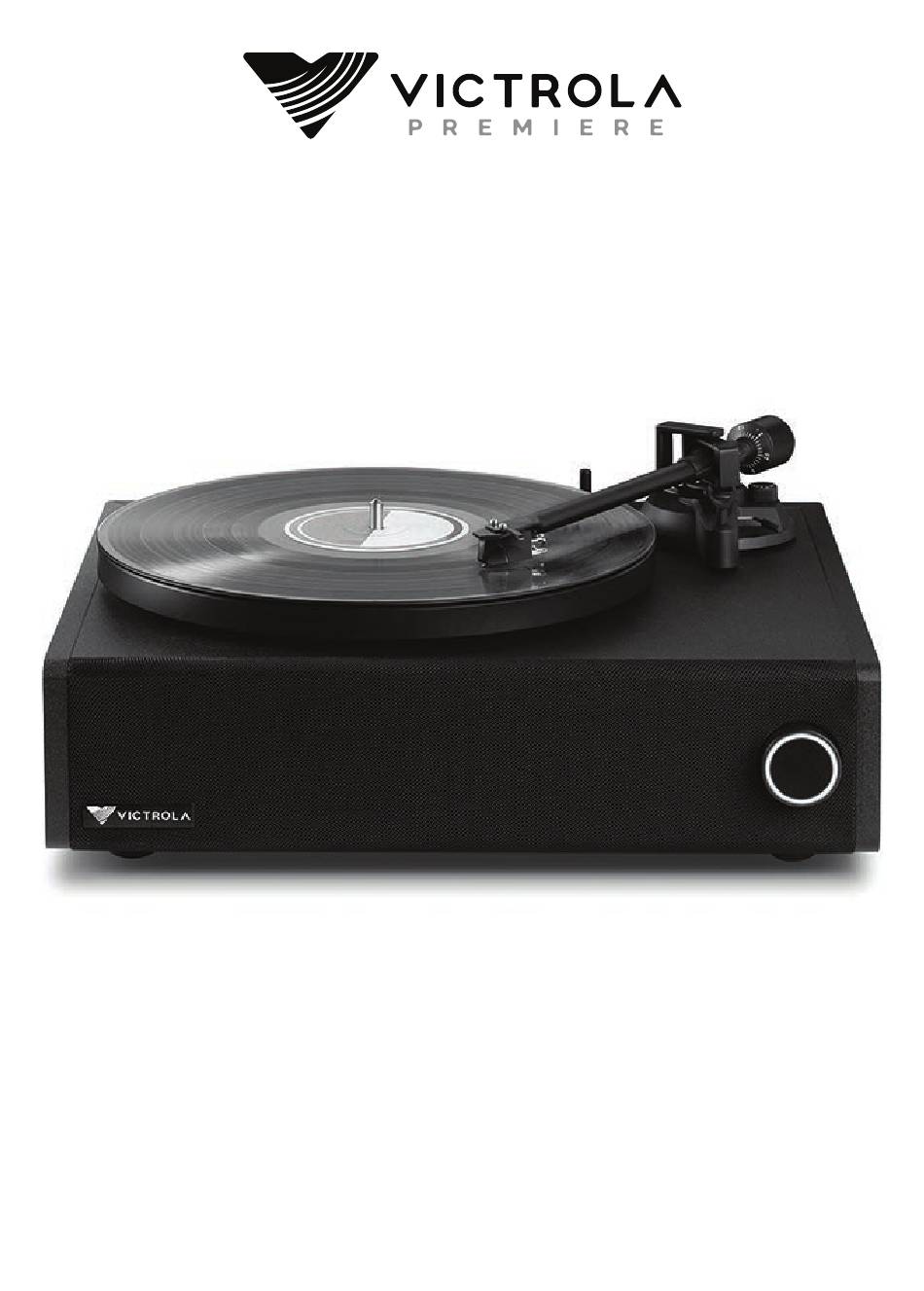

- Page 1 V 1 S T E R E O T U R N TA B L E V P A - 5 8 3...
- Page 2 O V E R V I E W Top View Back Panel 45 RPM Adaptor Tone Arm Counter Weight Anti-Skating Knob Slipmat Tone Arm Lift Lever Tone Arm Turntable Platter Cartridge Function Knob Back View Remote Control Dust Cover Power / Function Button Subwoofer RCA Output...
-
Page 3: S T A R T G U I D E
Q U I C K S T A R T G U I D E FUNCTION KNOB - BASIC OPERATION POWER: Press and hold for 1-2 seconds to turn the unit ON or OFF. VOLUME: Rotate to raise or lower volume. FUNCTION KNOB - TO CYCLE THROUGH FEATURES VINYL: Press to enter record player function mode. -
Page 4: Getting Started
S I M P L E S E T U P GETTING STARTED Remove the needle cover, by gently pulling towards the front of the unit. Carefully plug in the unit, install platter and tone arm weight. Note: It is recommended that this product should be operated only from the type of power source indicated on the rating label. - Page 5 T O N E A R M S E T U P ***IMPORTANT, THE TONE ARM MUST BE SET UP AS INSTRUCTED BELOW OR DAMAGE MAY OCCUR TO THE UNIT OR RECORDS. IDENTIFY THE WEIGHT REMOVE THE NEEDLE TURN THE COVER - LIFT TONE ARM COUNTER WEIGHT ON THE BACK OF...
- Page 6 V I N Y L P L A Y I N G VINYL: Playing a Vinyl record Note: -Before using, make sure the tone arm is properly setup. See TONE ARM SETUP page. Using the Function Knob, press and hold for 1-2 seconds to turn the unit ON. Simply press the Function Knob to make sure it is in Vinyl mode (the dial will illuminate white).
-
Page 7: Bluetooth Pairing
B L U E T O O T H P A I R I N G BLUETOOTH: Connecting and playing music from a Bluetooth device (Smartphone). Using the Function Knob, press and hold for 1-2 seconds to turn the unit ON. Simply press the Function Knob to make sure it is in Bluetooth mode (the dial will ash blue). -
Page 8: Replacement Cartridge
Motor......................DC servo motor Drive System....................Belt Drive Speeds ....................... Off/33-1/3 rpm, 45 rpm Cartridge Type ................... Moving Magnetic Cartridge Moving Magnetic Cartridge ..............Victrola VPC-190 BLUETOOTH Bluetooth Version ..................Bluetooth V5.0 Bluetooth Pro les ..................A2DP, AVRCP Bluetooth Frequency range............... 2.402GHz-2.480GHz Operating Distance ...................10 meters (33 ft.) - Page 9 W A R N I N G Important Safety Instruction Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3.
-
Page 10: Fcc Statement
S A F E T Y I N F O Safety Information In order to shut off power to this product completely, unplug the power cord from the wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period of time, such as during a vacation. 2. -
Page 11: Warranty
Except as limited below, if the product proves defective in either material or workmanship within one (1) year from the date of purchase, Victrola will replace the product at no charge. If the product model is no longer available and cannot be replaced with an identical model, Victrola will issue a merchandise credit for the purchase price to be redeemed at victrola.com. - Page 12 If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, Victrola at its sole option may replace the unit with a current model of equal or greater value. Outside the U.S, Canada, and US Territories The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States, Canada, and US Territories.
