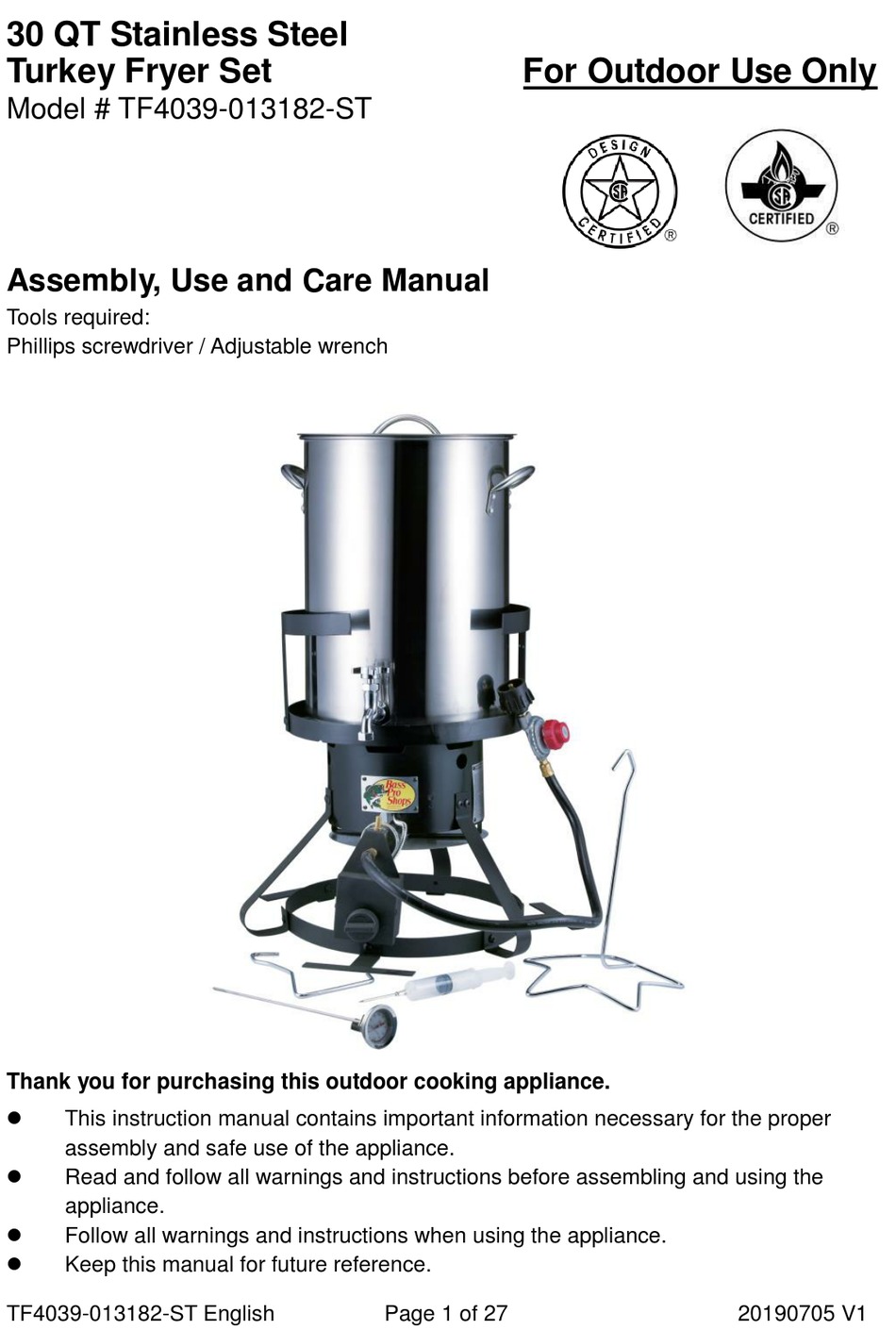

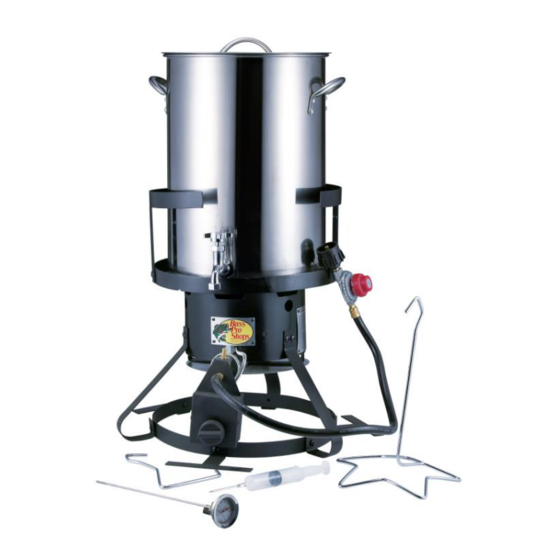

30 QT Stainless Steel
Turkey Fryer Set
Model # TF4039-013182-ST
Assembly, Use and Care Manual
Tools required:
Phillips screwdriver / Adjustable wrench
Thank you for purchasing this outdoor cooking appliance.
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
TF4039-013182-ST English
For Outdoor Use Only
Page 1 of 27
20190705 V1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rankam TF4039-013182-ST
Summary of Contents for Rankam TF4039-013182-ST
- Page 1 30 QT Stainless Steel Turkey Fryer Set For Outdoor Use Only Model # TF4039-013182-ST Assembly, Use and Care Manual Tools required: Phillips screwdriver / Adjustable wrench Thank you for purchasing this outdoor cooking appliance. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
- Page 2 Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. TF4039-013182-ST English Page 2 of 27 20190705 V1...
-
Page 3: Prop 65 Warning
Warning: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION Caution: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. TF4039-013182-ST English Page 3 of 27 20190705 V1... - Page 4 Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing. Do not leave the appliance unattended, keep children and pets away from the appliance at all times. Please wear gloves while assembling the fryer. TF4039-013182-ST English Page 4 of 27 20190705 V1...
- Page 5 Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being put into operation. TF4039-013182-ST English Page 5 of 27 20190705 V1...
- Page 6 Never drop food or accessories into hot cooking liquid. Lower food and accessories slowly into the cooking liquid in order to prevent splashing or overflow. When removing food from the appliance care should be taken to avoid burns from hot cooking liquids. TF4039-013182-ST English Page 6 of 27 20190705 V1...
- Page 7 Use only tanks equipped with this type of valve. LP tank must be arranged for vapor withdrawal and include collar to protect LP tank valve. TF4039-013182-ST English Page 7 of 27 20190705 V1...
- Page 8 Brush soapy solution onto all weld seams and entire valve area. WARNING If “growing” bubbles appear, do not use or move the LP tank. Contact an LP gas supplier or your file department. TF4039-013182-ST English Page 8 of 27 20190705 V1...
- Page 9 Turn the coupling nut counterclockwise to loosen the connector. Loose by hand only – do not use tools. When disconnected, the regulator should be hung on the hook attached to the appliance. TF4039-013182-ST English Page 9 of 27 20190705 V1...
- Page 10 Customer Service Center at 1-888-837-1380. Use only replacement parts specified by manufacturer. Always close LP tank valve after performing tank leak test by turning hand wheel clockwise. TF4039-013182-ST English Page 10 of 27 20190705 V1...
- Page 11 After burner is lit, continue to HOLD the push button for 10 seconds and then release. Holding push button of safety valve for less than 10 seconds will cause burner flame to go out. TF4039-013182-ST English Page 11 of 27 20190705 V1...
- Page 12 Adjust the air damper by turning it clockwise or counterclockwise until the desired flame is achieved. Turning LP Cooker Off Turn all knobs to OFF position, Turn LP tank OFF by turning hand-wheel clockwise to a full stop. TF4039-013182-ST English Page 12 of 27 20190705 V1...
- Page 13 Store appliance indoors ONLY if LP tanks turned off and disconnected, removed from appliance and stored outdoors. To keep the appliance clear and free from gasoline and other flammable vapors and liquids. TF4039-013182-ST English Page 13 of 27 20190705 V1...
- Page 14 Replace corroded or damaged burners that would emit excess gas. Cooking surfaces, pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. TF4039-013182-ST English Page 14 of 27 20190705 V1...
- Page 15 Product Diagram TF4039-013182-ST English Page 15 of 27 20190705 V1...
- Page 16 11. Pot Lid 12. Turkey Stand 1 pc 1 pc 1 pc 1 pc 13. Turkey Hook 14. Regulator 15. Thermometer 16. Injector Hook 1 pc 1 pc 1 pc 1 pc TF4039-013182-ST English Page 16 of 27 20190705 V1...
- Page 17 Attach thermocouple (9) as shown on the right Leave 2 visible thread illustration and tighten the nut. Assemble the legs (2) to welded stand (1) by using M6x12 bolts (A) and M6 nuts (B). TF4039-013182-ST English Page 17 of 27 20190705 V1...
- Page 18 (A) by going through the supporting bar and then to the timer box. Timer box supporting bar Mount the adjustable pot tip guard (6) on to welded stand (1) by M6x12 bolts (A) and M6 nuts (B). TF4039-013182-ST English Page 18 of 27 20190705 V1...
- Page 19 Turn counter-clockwise to “OPEN” the spigot. The oil / water will flow out through the spigot. After vessel cleaning, the Cap End must be tightly screwed and turned clockwise to “Close” the spigot. Cap End TF4039-013182-ST English Page 19 of 27 20190705 V1...
- Page 20 18 pounds. The USDA recommends thawing 24 hours (1 day) for every 4-5 pounds in refrigerator. Insert the T-Star stand up through the cavity of turkey so that the legs are at the top. TF4039-013182-ST English Page 20 of 27 20190705 V1...
- Page 21 (see photo). Center the pot over the burner on the cooker. Fill the pot to the mark with cotton seed oil, peanut oil or other cooking oi. Remove the butcher’s tape from the pot. TF4039-013182-ST English Page 21 of 27 20190705 V1...
- Page 22 Using a meat thermometer, check for an internal meat temperature of 180°F. Remove turkey fry accessory and allow the turkey to “rest” for 15 minutes to allow the juices to settle into the turkey. Slice and serve! TF4039-013182-ST English Page 22 of 27 20190705 V1...
- Page 23 Move out of wind and restart. Timer has completed its cycle. Each cycle of timer is 15 minutes, after 15 minutes, the burner will go off automatically. Please re-set the timer. TF4039-013182-ST English Page 23 of 27 20190705 V1...
- Page 24 Disconnect the regulator from the LP tank and wait one minute. Reconnect the regulator control valve to the LP tank valve and slowly open the LP tank valve until it is fully open. TF4039-013182-ST English Page 24 of 27 20190705 V1...
- Page 25 Rust or corrosion is not deemed a manufacturing or materials defect. Discoloration or loss of paint due to handling during assembly, heat or cleaning products. Paint may require touch up. Stainless steel discoloration or corrosion. Consumables such as batteries. TF4039-013182-ST English Page 25 of 27 20190705 V1...
- Page 26 Should you encounter any problems, CONTACT US FIRST DO NOT return product to the store! RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong For assistance, contact customer service at customerservice@rankam.com...
- Page 27 TF4039-013182-ST English Page 27 of 27 20190705 V1...
