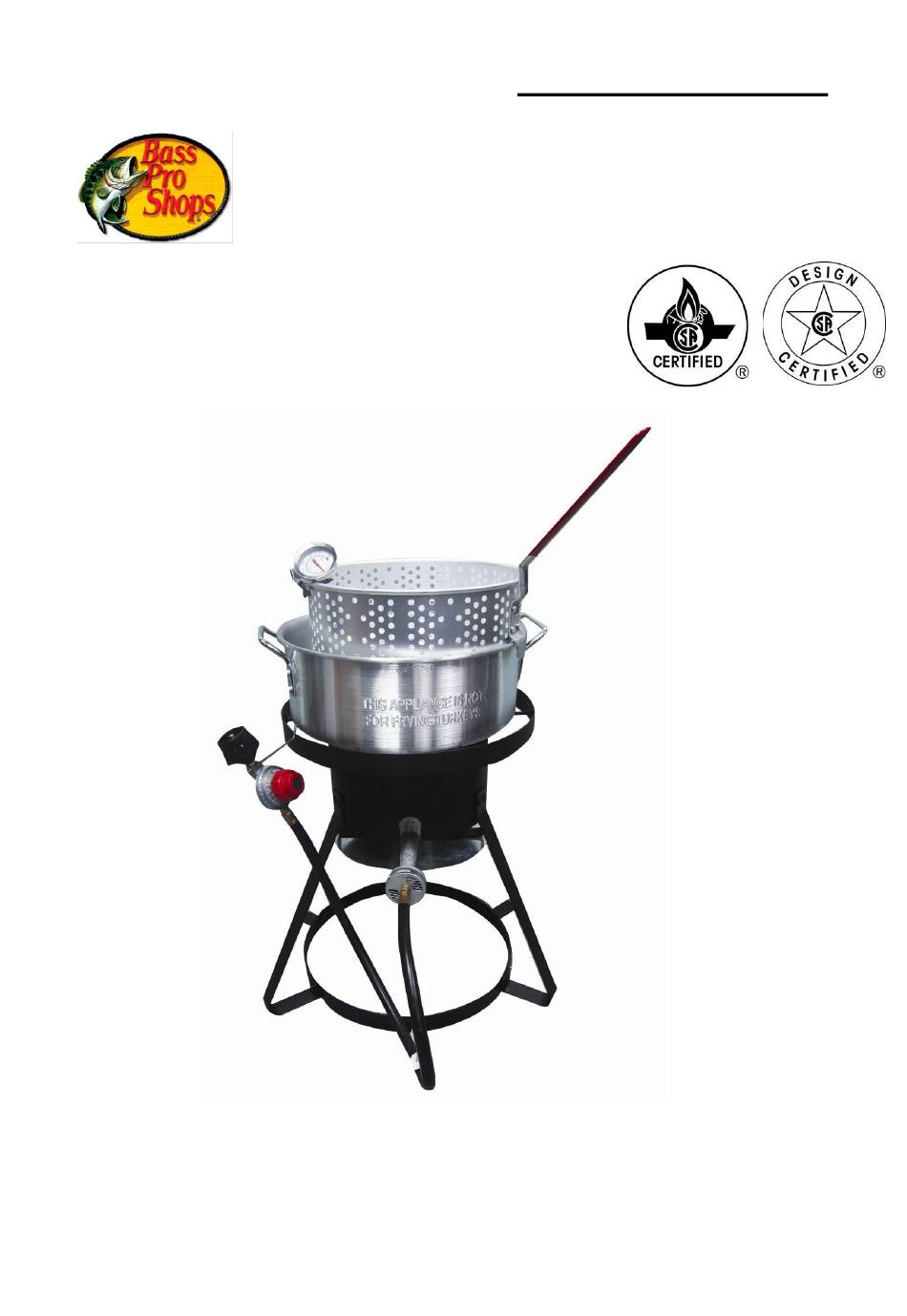

Fish Fry Kit

Assembly, Use and Care

Model: TF2048903-BA-00

Tools required:

Philips screwdriver / Adjustable wrench

 This instruction manual contains important information necessary for the proper

assembly and safe use of the appliance.

 Read and follow all warnings and instructions before assembling and using the

appliance.

 Follow all warnings and instructions when using the appliance.

 Keep this manual for future reference.

 This appliance is NOT for frying turkeys.

TF2048903-BA-00 English

For Outdoor Use Only

Page 1 of 16

20180615-V1

Need help?

Do you have a question about the TF2048903-BA-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rankam TF2048903-BA-00

Page 1 Fish Fry Kit Assembly, Use and Care For Outdoor Use Only Model: TF2048903-BA-00 Tools required: Philips screwdriver / Adjustable wrench  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.  Read and follow all warnings and instructions before assembling and using the appliance.
Page 2 7. The minimum environmental temperature of this appliance is -21°F (-29°C).Do not use this appliance under above rated temperature. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. Page 2 of 16 TF2048903-BA-00 English 20180615-V1...
Page 3: Prop 65 Warning
WARNING: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. Page 3 of 16 TF2048903-BA-00 English 20180615-V1...
Page 4  DO NOT leave the appliance unattended. Keep children and pets away from the appliance at all times.  Do not place an empty cooking vessel on the appliance while in operation. Use Page 4 of 16 TF2048903-BA-00 English 20180615-V1...
Page 5 A. Do not store a spare LP-gas cylinder under or near this appliance. B. Never fill the cylinder beyond 80 percent full. C. If the instructions in (A) and (B) are not followed exactly, a fire causing death or serious injury may occur. Page 5 of 16 TF2048903-BA-00 English 20180615-V1...
Page 6 A frosted regulator indicates gas overfill. Immediately close LP tank valve and call LP gas dealer for assistance.  Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice. Page 6 of 16 TF2048903-BA-00 English 20180615-V1...
Page 7 (C) with LP tank valve so as not to cross thread the connection. 6. Turn the coupling nut clockwise to tighten to a full solid stop. The regulator will seal on the Page 7 of 16 TF2048903-BA-00 English 20180615-V1...
Page 8 Customer Service Center at 1 – 888 – 837 – 1380. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank test by turning hand wheel clockwise. Page 8 of 16 TF2048903-BA-00 English 20180615-V1...
Page 9  Turn all knobs to OFF position, turn LP tank OFF by turning hand-wheel clockwise to a full stop. Hose Assembly and Regulator Check  Cleaning and inspection of pressure regulator and hose Page 9 of 16 TF2048903-BA-00 English 20180615-V1...
Page 10 Keeping the ventilation opening(s) of the cylinder enclosed free and clear from debris.  Clean all cooking surfaces of vessels, aluminum pots and pan with warm, soapy water and a nylon cleaning pad to avoid oxidation, corrosion and rusting. Page 10 of 16 TF2048903-BA-00 English 20180615-V1...
Page 11 Heat Shield Burner Regulator Hose Assembly 10.5QT Fish Pot Fish Basket Basket Handle 5” Thermometer Hook Burner support Hardware List Part# Description Diagram Qty. Bolt M6 x 12 16pcs Flange Nut M6 16pcs Page 11 of 16 TF2048903-BA-00 English 20180615-V1...
Page 12 1. Assemble the Burner support (13) to Welded stand (1) by using 4pcs bolts (A) and 4pcs flange nuts (B). 2. Assemble the Legs (2) to Welded Stand (1) by using 6pcs bolts (A) and 6pcs flange nuts (B). Page 12 of 16 TF2048903-BA-00 English 20180615-V1...
Page 13 Make sure the alignment pin seat in the notch on the edge of the burner bracket. Align with the burner pins, then fix the Heat Shield (5) outside the supporting bar and secure with the nut (on the threaded pin). Page 13 of 16 TF2048903-BA-00 English 20180615-V1...
Page 14 DO NOT OVERTIGHTEN. Proper connection is critical for correct operation of the unit. 6. Attach the Basket Handle (10) by inserting 4pcs bolts (C) through Fish Basket (9), 4pcs tooth washers (E) and 4pcs nuts (D). Page 14 of 16 TF2048903-BA-00 English 20180615-V1...
Page 15 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. Page 15 of 16 TF2048903-BA-00 English 20180615-V1...
Page 16 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong For assistance, contact customer service at customerservice@rankam.com or at 1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard time, Monday to Friday Manufactured for Bass Pro Shops 2500 E.
