Rankam TF2181103-BA-00 Assembly, Use And Care Manual

6.5 qt. fish fryer kit
Hide thumbs

Advertisement

Quick Links

Download this manual

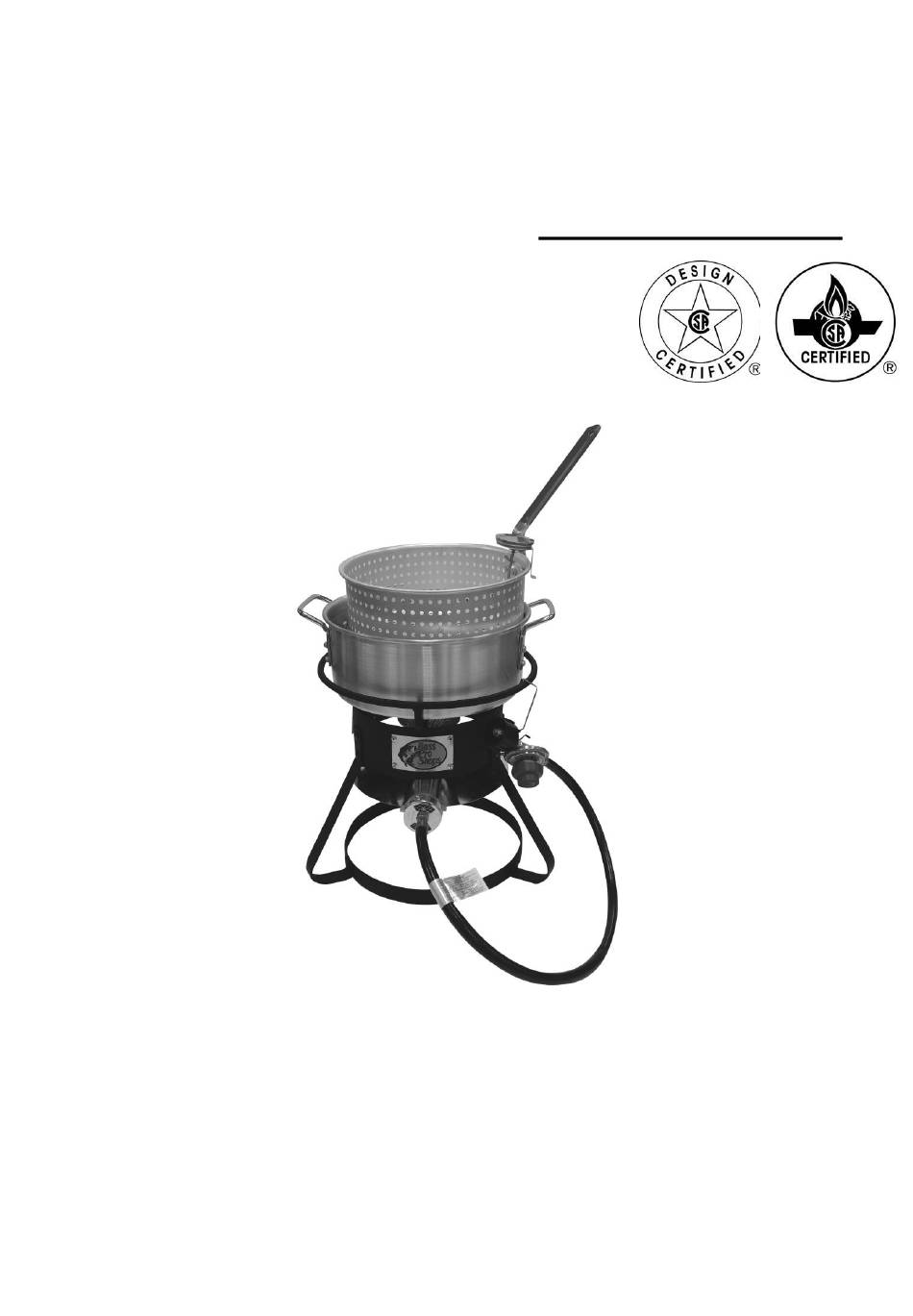

6.5 QT. FISH FRYER KIT
Assembly, Use and Care Manual
Model: TF2181103-BA-00
Tools required:
Philips screwdriver / Adjustable wrench
 To installer or person assembling this appliance: Leave this manual with this
appliance for future reference.
 This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling and using
the appliance.
 Follow all warnings and instructions when using the appliance.
 Keep this manual for future reference.
 This appliance is NOT for frying turkeys.
TF2181103-BA-00 English
For Outdoor Use Only
Page 1 of 16
20180508 V.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF2181103-BA-00 and is the answer not in the manual?

Questions and answers

Related Manuals for Rankam TF2181103-BA-00

Summary of Contents for Rankam TF2181103-BA-00

  • Page 1 6.5 QT. FISH FRYER KIT Assembly, Use and Care Manual For Outdoor Use Only Model: TF2181103-BA-00 Tools required: Philips screwdriver / Adjustable wrench  To installer or person assembling this appliance: Leave this manual with this appliance for future reference.

  • Page 2: Prop 65 Warning

    State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. WARNING This Appliance is NOT intended for commercial use. WARNING This Appliance is NOT for Frying Turkeys. Page 2 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 3 Never use under balconies made of wood or ANY overhead construction.  Keep the fuel supply hose away from any heated surfaces.  This appliance is NOT intended for commercial use. Page 3 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 4 When removing food from the appliance care must be taken to avoid burns from hot cooking liquids.  Please wear gloves while assembling the fryer. Page 4 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 5 LP gas is non toxic, odorless and colorless when produced. For your safety, LP gas has an odor (similar to rotten eggs) so that it can be smelled.  LP gas is highly flammable and may ignite unexpectedly when mixed with air. Page 5 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 6 The replacement hose assembly must be that specified by the manufacturer. WARNING If “growing” bubbles appear, do not use or move the LP tank. Contact an LP gas supplier or your fire department. Page 6 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 7 If leak is detected at any time, STOP.  If you cannot stop a gas leak, immediately close LP tank valve, leave area of appliance, and call LP gas supplier or your fire department! Page 7 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 8 Order new parts by giving the serial number, name and number of items needed to the Customer Service Center at 1 – 888 – 837 – 1380 or email at customerservice@rankam.com. Use only replacement parts specified by manufacturer.
  • Page 9 FLEXIBLE venture brush or bend a small hook on one end of a long flexible wire such as the one shown in Fig. 2. 4. Inspect and clean the burner if needed. 5. Reattach brass connector to burner. Page 9 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 10 Replace corroded or damaged burners that would emit excess gas. For cooking surfaces like pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. Page 10 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 11 Assembly Welded Stand Burner Bracket Heat Shield Stand Ring 5” Thermometer Hardware List Part Description Diagram Qty. Bolt M6 x 12 Flange Nut M6 Bolt M5 x 10 Nut M5 Tooth Washer Page 11 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 12 1. Assemble the Legs (9) to Welded Stand (6) by using 6pcs bolts (A) and 6pcs flange nuts (B). 2. Assemble the Stand Ring (10) to legs by using 3pcs bolts (A) and 3pcs flange nuts (B). Page 12 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 13 Make sure the alignment pin seat in the notch on the edge of the burner bracket. Align with the burner pins, then fix the Heat Shield (8) outside the supporting bar and secure with the removed nut. Page 13 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 14 DO NOT OVERTIGHTEN. Proper connection is critical for correct operation of the unit. 6. Attach the Basket Handle (2) by inserting 4pcs bolts (C) through Fish Basket (1), 4pcs tooth washers (E) and 4pcs nuts (D). Page 14 of 16 TF2181103-BA-00 English 20180508 V.1...
  • Page 15 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. Page 15 of 16 TF2181103-BA-00 English 20180508 V.1...

  • Page 16: Limited Warranty

    18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong Made In China For assistance, contact customer service at customerservice@rankam.com or at 1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard time, Monday to Friday Page 16 of 16 TF2181103-BA-00 English 20180508 V.1...
