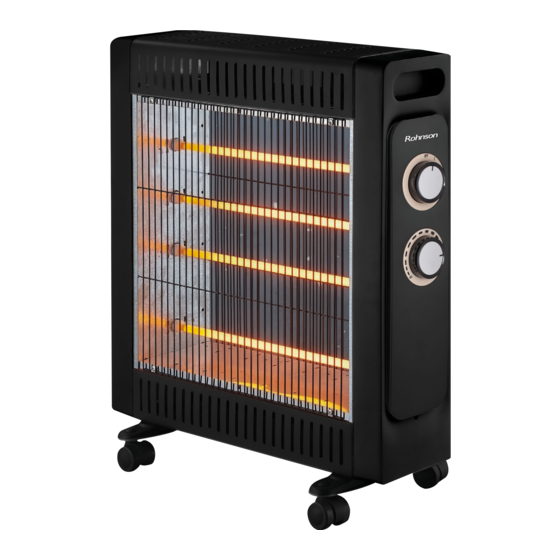

Rohnson R-8013 Instruction Manual

DESCRIPTION

Voltage: 220-240V
Frequency:50/60Hz
Two heating power: 1100W/2200W
Quartz heating element
With thermostat protection
Tip-over switch protection
Outdoor use

ASSEMBLY

1. Carefully turn the appliance upside down to fit the castors.
2. Slide the wheel plate at the right position.
3. Secure the wheel plate by lightening the butterfly nut.
4. Put the appliance in the upright position.
5. Take out the cable from the cable bracket backside.

OPERATION

1. Switch the heater to one of the following power settings:
• I – low heating power;
• II – high heating power;
NOTE!
This device will cool slowly after the power is shut off. Allow the heater to cool prior to any
movement. The built-in carry handle should be used for easy movement.
When this device is overheated it is automatically turned off by a special security system. Unplug the
device and let it cool down before activating it again.
2. Once you finished using the heater, turn the power switches to the "OFF" position, then unplug
the main power supply.

CLEANING

1. If not used for a long time, clean the heater's surface and keep it in the original packing. Keep
the heater in airy place and pay attention to avoid dampness.
2. Use a damp cloth to clean the surface of appliance, avoid water going inside the appliance, and
dry the appliance before use or store.

STORAGE

1. Save the original packing for the off-season storage.
2. Clean the heater according to the cleaning instructions above.
3. Remove the wheel base assemblies.
4. Place the heater and the wheel assemblies in the original packing and store in dry place.
INSTRUCTION MANUAL FOR QUARTZ HEATER
MOD. R-8013
