Page 1

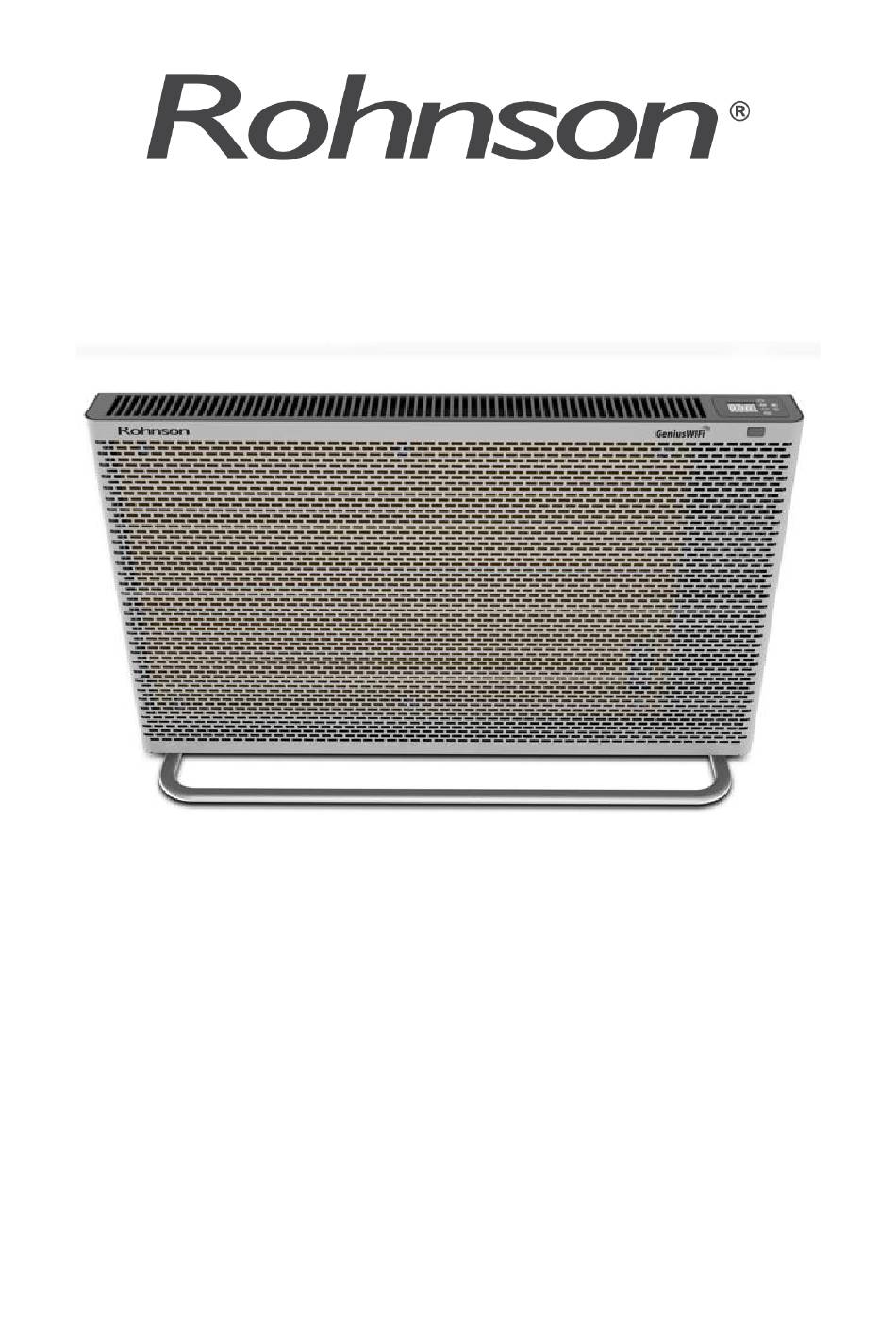

Digital Mica Panel Heater with Wi-Fi INSTRUCTION MANUAL Model No.: R-083 This product is only suitable for well insulated spaces or occasional use. PLEASE READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
Congratulations on your purchase of a Mica panel heater. Please read the following instructions carefully before use and retain for future reference. BEFORE FIRST USE • Read and follow all the instructions below even if you feel you are familiar with the appliance.
Page 3
• Do not use the appliance to dry clothes. • Do not insert or allow foreign objects or metal utensils into any ventilation or exhaust openings as this may cause an electric shock, fire or damage to the appliance. • Do not operate in bathrooms, laundry areas or similar moist indoor locations. Never locate the appliance where it may fall into a bath or other water container.
Page 4
• Never remove the cover of the appliance – in case of a fault contact a qualified service person. • Use this appliance only as described in this manual. • Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
Page 5
Move the appliance only with plastic part before it cools down enough. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet. Model: HP2301-24DWM-V23 / R-083 Standard: 802.11 B/G/N20 Antenna Type: PCB Onboard Frequency WIFI:2.400~2.4835GHz...
Page 6
SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, DONGGUAN YUETAI ELECTRICAL APPLIANCES CO.,LTD, declares that the radio equipment type of R-083 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.rohnson.eu...
Page 7
Refer to Minimum Clearances adjacent as a guide to the correct location of the heater. Ensure the foot base is removed and stored safely, if it’s currently secured to the heater. Important: Before drilling holes into the wall, check if there are not any cables passing nearby. 1.
Page 8
Note: The minimum space between the top side and the ground is 0.9 meters, and the maximum space is 1.3 meters. OPERATING INSTRUCTIONS NOTE: When switched on for the first time a slight odour may be emitted for a few minutes.
Page 9
• Press and the display will light briefly. Working modes switch (Remote controller available) • Plug in the power plug and enter standby mode. In standby mode, press the power button on the operation panel to enter the comfort mode heating. In heating mode, press the on/off button to switch to standby mode.
Page 10
Temperature setting (Remote controller available) • Press the button︿or ﹀ to set your desired temperature from 5℃-36℃. • If no operation for 5 seconds, it will be automatically saved, or press the button to save. Note: It enters into manual mode automatically after pressing Up ︿ or Down ﹀ button during operation, then all mode symbols are not displayed.
Page 11
• After finishing the Monday setting, press to enter Tuesday setting. • In the DIY mode, Press for 5 seconds, the will illuminate 3 times, then can copy the mode setting of Monday to other six days. • It will be saved and exit the DIY mode if 10S no operation. •...
Page 12
Open window Mode • Press the button , while the icon blinks, press enter the open window mode. this is designed to save your energy consumption by switching your unit off when it detects an open window. • In open window mode, it will work in comfort mode and will detect the room temperature automatically.
Page 13
Battery Replacement If the battery in the remote control is flat, insert a new 3V CR2025 size button cell following the instructions below. • Push the locking tab to one side and pull out the battery compartment at the lateral side of remote control.
SAFETY FEATURES Over-Heat Protection • This heater is protected with an over-heat protection cut-out facility that switches it off automatically if it over-heats. • Overheating can be caused by obstruction to the air intakes on the back of the heater or the grill on the front. •...
Page 15
APP Store for IOS mobile device Connection by WIFI 1.Use your phone to scan the QR code above or search “Rohnson” App in Play store or App store. Download and install the Rohnson App. 2.Select Register. Then, select your country, enter email and tap “Continue” to get a message containing verification on code.
Page 17
The product will be added successfully. In case you see this message, please check the three possible reasons and retry.
Page 18
Now, the unit is off. Press the on/off “Switch” to turn the unit on. Then, the unit is on. You can adjust your desired temperature from 5-36°C. Once you turn on the heater, the default setting temperature is 25°C. Select “Mode” to set your desired mode. You can select among Comfort / ECO / Anti-frost / Open window / manual mode...
Page 19
Select Gear to set your desired heating power. You can select between level 1 (low) 1000W / and level 2 (medium) 1400W / level 3 (high) 2400W Select “Setting” button and select the timer to set your own schedule. You can choose your desired time to turn on / off the unit, the desired days, temperature, power.
Page 21
You can change your product’s name, check device info or share your device with other people. Choose device sharing, add sharing, share with the Account Rohnson or other options. You can share the product with maximum 20 people.
Page 22
Information requirment for the electric local space heaters Model identifier(s):R-083 Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with Pnom 2.327...
