Page 1

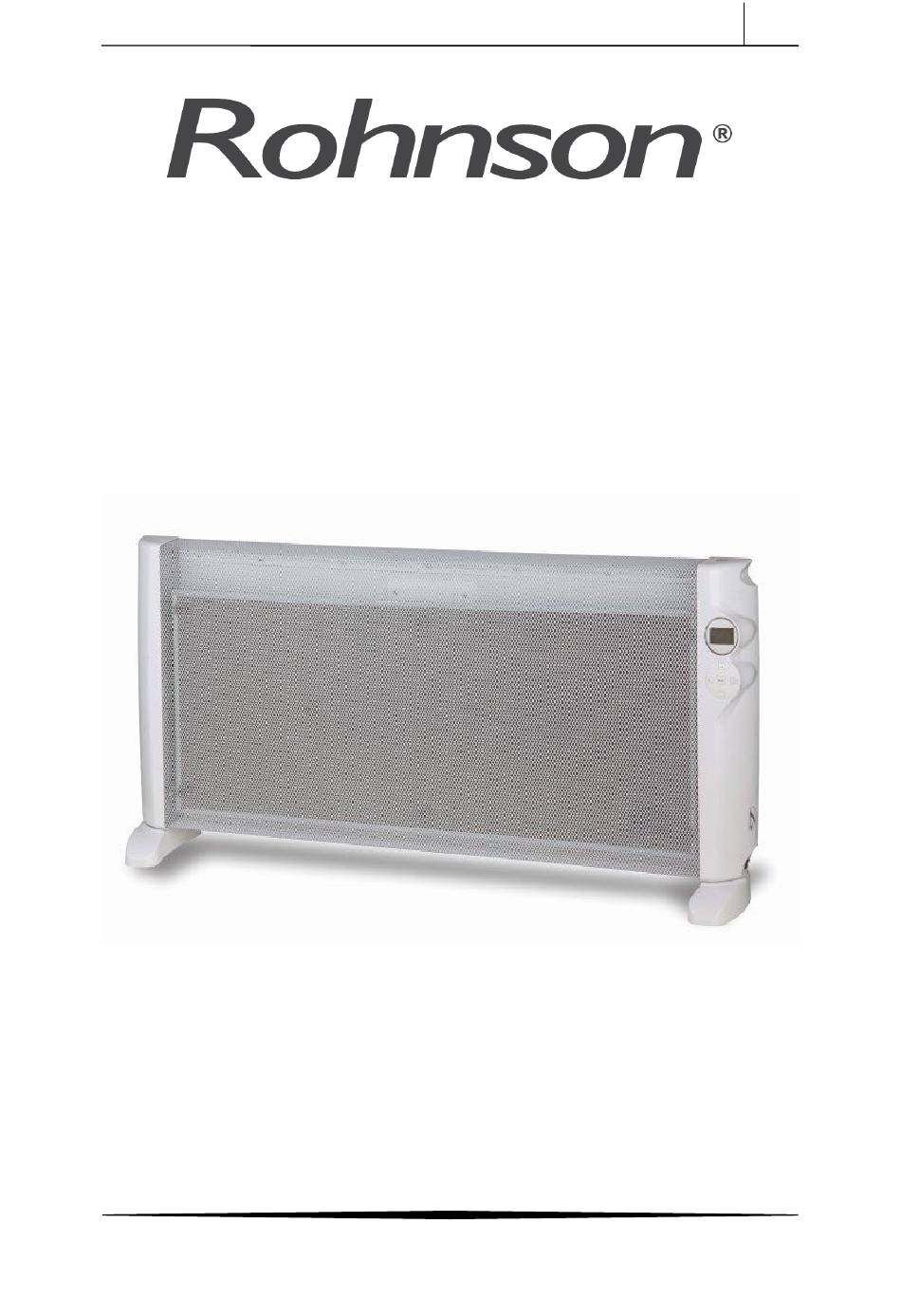

Digital MICA Panel Heater R-077 WiFi EN Digital Mica Panel Heater with Wi-Fi MODEL. : R-077 INSTRUCTION MANUAL 220-240V~ 50Hz 2000W This product is only suitable for well insulated spaces or occasional use...
Page 2
Digital MICA Panel Heater R-077 WiFi EN Warning! Before turn on the unit, please remove the hanging card first. Do not cover the appliance. Do not dry clothes on the appliance. The company must not bear any risks and responsibility for any accidents by using the product without removing the hanging card.
Page 3
Digital MICA Panel Heater R-077 WiFi EN • Check the appliance, particularly the mains lead, for signs of damage every time before use. In case of damage, contact a qualified electrician or customer services in the country where you are situated.
Tel: (852) 2520 0682 SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Splendid Tech Company Ltd declares that the radio equipment type of R-077 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.vassilias.gr...
Page 5
Digital MICA Panel Heater R-077 WiFi EN 2. Layout (Fig. 1) 1. LCD 2. Function buttons 3. ON/OFF main switch 4. Foot 5. Protective grille Items supplied • Open the packaging and take out the equipment with care. • Remove the packaging material and any packaging and/or transportation braces (if available).
Page 6
Digital MICA Panel Heater R-077 WiFi EN Before starting the equipment Assembly Warning! Free-standing installation (Fig. 2) Observe section 1 “Safety regulations“. To prevent damage when attaching the feet to the heater, place the heater upside down on a soft surface (e.g. a carpet).
Page 7
Digital MICA Panel Heater R-077 WiFi EN Fig. 3 - 4: Mark two holes on the wall at a height of at least 475 mm and a horizontal distance of 105 mm apart. When positioning the drill holes, take account of the following minimum distances from walls or objects: 71 cm to the sides, 55 cm to the top and 47,5 cm to the bottom.
Page 8
Digital MICA Panel Heater R-077 WiFi EN Switching on the appliance With the main ON/OFF switch (Fig. 6/Item 3) the appliance is cut off completely from the power supply. Switch the main switch on first, and off last when you no longer need the appliance.
Page 9
Digital MICA Panel Heater R-077 WiFi EN Time preselection (Fig. 7) A switch ON time (19) or a switch OFF time (20) can be set from 0:30h – 23:30h (21). Press the “Clock” symbol (24) once: the symbol 11 will blink. Now press “+” or “-” to set the desired switch ON time (19 + 21).
Page 10
Digital MICA Panel Heater R-077 WiFi EN Replacing the power cable Warning! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after- sales service or similarly trained personnel to avoid danger.
Page 11
Digital MICA Panel Heater R-077 WiFi EN IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Page 12
Software versions that are accepted are IOS ≥V9.0, Android ≥ V5.0, Bluetooth ≥V4.4. Please download Rohnson APP from Google Play or APP store and follow the below instructions in order to connect the device with your mobile phone or tablet.
Page 13
Digital MICA Panel Heater R-077 WiFi EN Please enter mobile number or email, then press “Continue” button. A 6-digits code will sent to your mobile number or email which you registered. Enter 6-digits code in “Verification code” After verified, please set your own password at “Set Password” and click “Done” button,...
Page 14
Digital MICA Panel Heater R-077 WiFi EN After create “ Home Name”, then set the your location by drag your mouse on “Location”, also select the device’s location in your house and click “DONE“ and click “Add Device” for completion.
Page 15
When the LCD display of device is flashing rapidly, click “Confirm indicator rapidly blink”, and select Wi-Fi network and enter password of Wi-Fi and click “Confirm” button. When you registered Rohnson App and Add Device,Please select > Add Manually > Small Home > Heater.
Page 16
Digital MICA Panel Heater R-077 WiFi EN When the APP display “MICA Heater”, click the device button to other display. click “Switch” button for entering control panel of the device to ON or STANDBY mode. When the device switched ON, ECO mode has been defaulted, you may click “MODE”...
Page 17
Digital MICA Panel Heater R-077 WiFi EN 1) ECO – The temperature is automatically set to 25 degrees, cannot be adjustable. 2) Lowpower mode – working power 1250W 3) Fullpower mode- working power 2000W 4) Anti-frost mode When the device set on Lowpower mode or Fullpower mode, A desired temperature from 7 - 30 °C can be adjust by pressing the “...
Page 18
Digital MICA Panel Heater R-077 WiFi EN You may set the ON/ OFF time, or “Repeat” action for any days, then Click “Save” button. At the meantime, you also click the “Add schedule” button to set another schedule, up to 30...
Page 19
Digital MICA Panel Heater R-077 WiFi EN Click “Settings” button to turn ON or OFF Child lock for home safety purpose. or click “common functions” to turn ON or OFF Child lock for home safety purpose. Any setting could be done after turn off the child lock function.
Page 20
Digital MICA Panel Heater R-077 WiFi EN Add members can manipulate devices and scenes. Add members can manipulate devices and scenes , Follow the steps as shown on above, Click on "Family" > "Home Management" > "Family" > "Add members" > enter new member's mobile phone number or email > "Add to".
